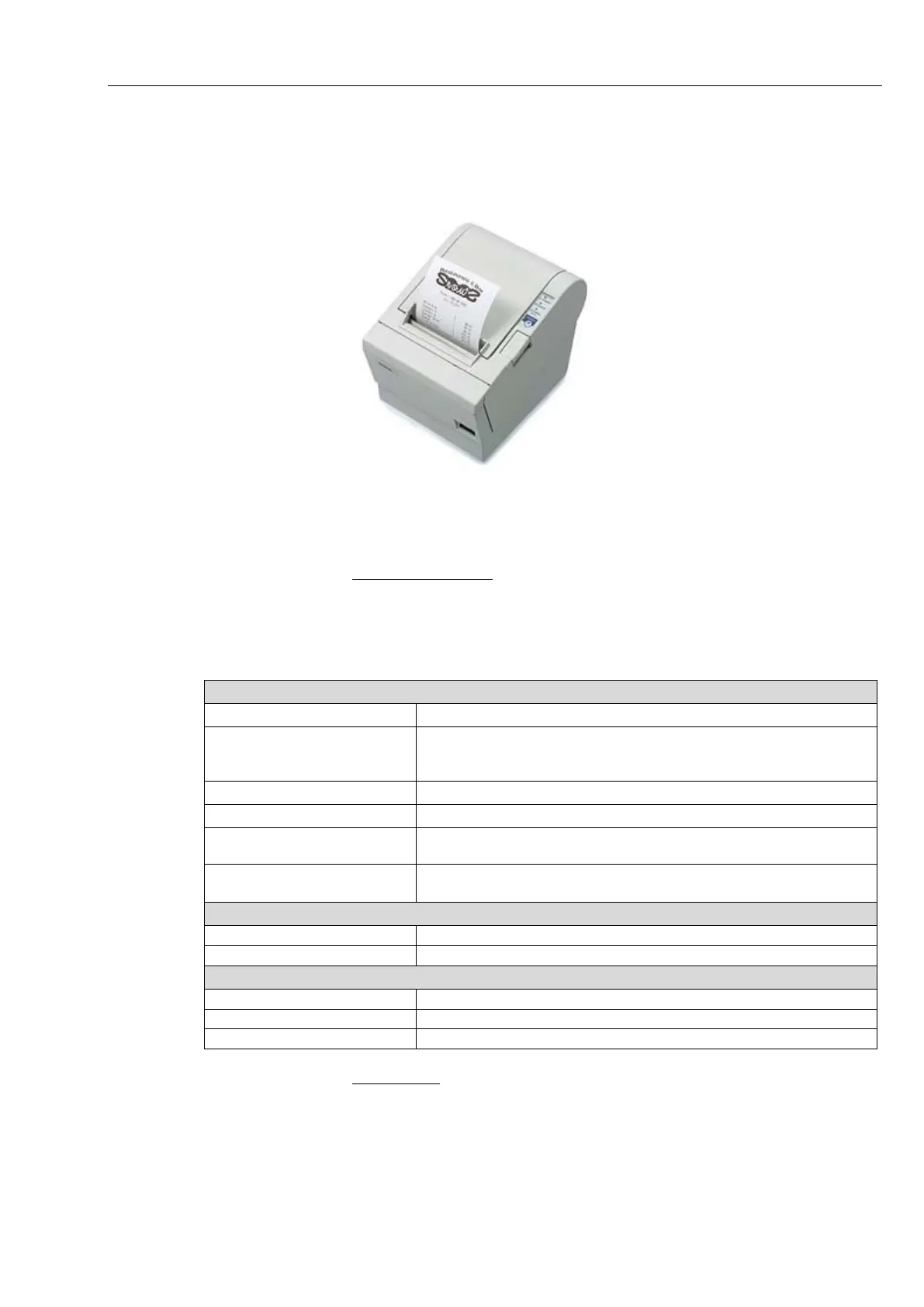

Thermal printer type 6761-11
127
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
22 Thermal printer type 6761-11
Order no.: 215004
Thermal printer for simple and reliable recording of measurements and data.
The printer can either be connected directly to the RS 232 interface on the
MAK Controller type 6942-10 or controlled via an RS 232 / P-NET converter
from the P-NET fieldbus.
Changing the paper:
The tried-and-tested drop-in method of inserting the new paper roll consists
of just three quick and easy steps: open printer, insert paper roll, close printer.
22.1 Technical data
Mechanical data
Dimensions
W x D x H: 145 mm x 195 mm x 148 mm
Installation position
Vertical or horizontal. In case of vertical installation, please note the in-
structions for attaching the correct labelling strip and changing the paper
sensor position.
Housing
Plastic, light grey
Weight
1.8 kg (excl. paper)
Connection
25-pin D-SUB connector, lockable, connection cable incl. plug, cable
length 15 m, can be cut to required length
Installation location
In dry, clean areas only within operating temperature limit and climate
class, preferably in the driver's cab
Electrical data
Interfaces
Standard: RS-232
Auxiliary power
DC 24 V / max. 1.5 A
Ambient conditions
Operating temperature
0 ... 50 °C
Storage temperature
- 20 ... 60 °C (excl. paper)
Climate class/protection type
KWF / IP 30
Accessories:
Paper: Thermal paper (order no. 215115)
Width: 79.5 mm ± 0.5
Max. diameter: 83 mm
Connection cable (order no. 215127)
