Bartec MAK TIGER 3003 - Page 136

Thermal printer type 6761-11
128
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
Connection cable signal assignment
PIN
Colour
Signal
2
gn
TxD
3
ye
RxD
7
bn
GNG
9 + 10
pk/gy
+24 V
12 + 13
bu/wh
0 V
Housing
Shield
Fit connection cable to printer with the screws in the cable plug.
Attention:
The metal base plate of the thermal printer has an electrical connection to the
GND signal of the electronic system and to the cable shield.
The printer must therefore be insulated from the vehicle chassis.
The cable shield must not be connected to the follow-on device or the shield bar.
Instructions for vertical installation:
a) Install the printer so that the paper comes out at the top and the cable
connection is facing down.
b) The labelling strip for feed button and LEDs is "upside down" in this position
and must be carefully covered over with the labelling strip provided.
c) Change the paper sensor position to vertical installation position:
- Undo detector screw by turning anticlockwise, e.g. using a coin (see
diagram)
- Using a fingertip, press key lever to the side as far as it will go and hold
- Rotate turning knob in the direction of the arrow until the key lever au-
tomatically clicks into the hole in the other side
- Keep hold of turning knob and tighten detector screw again by turning
clockwise

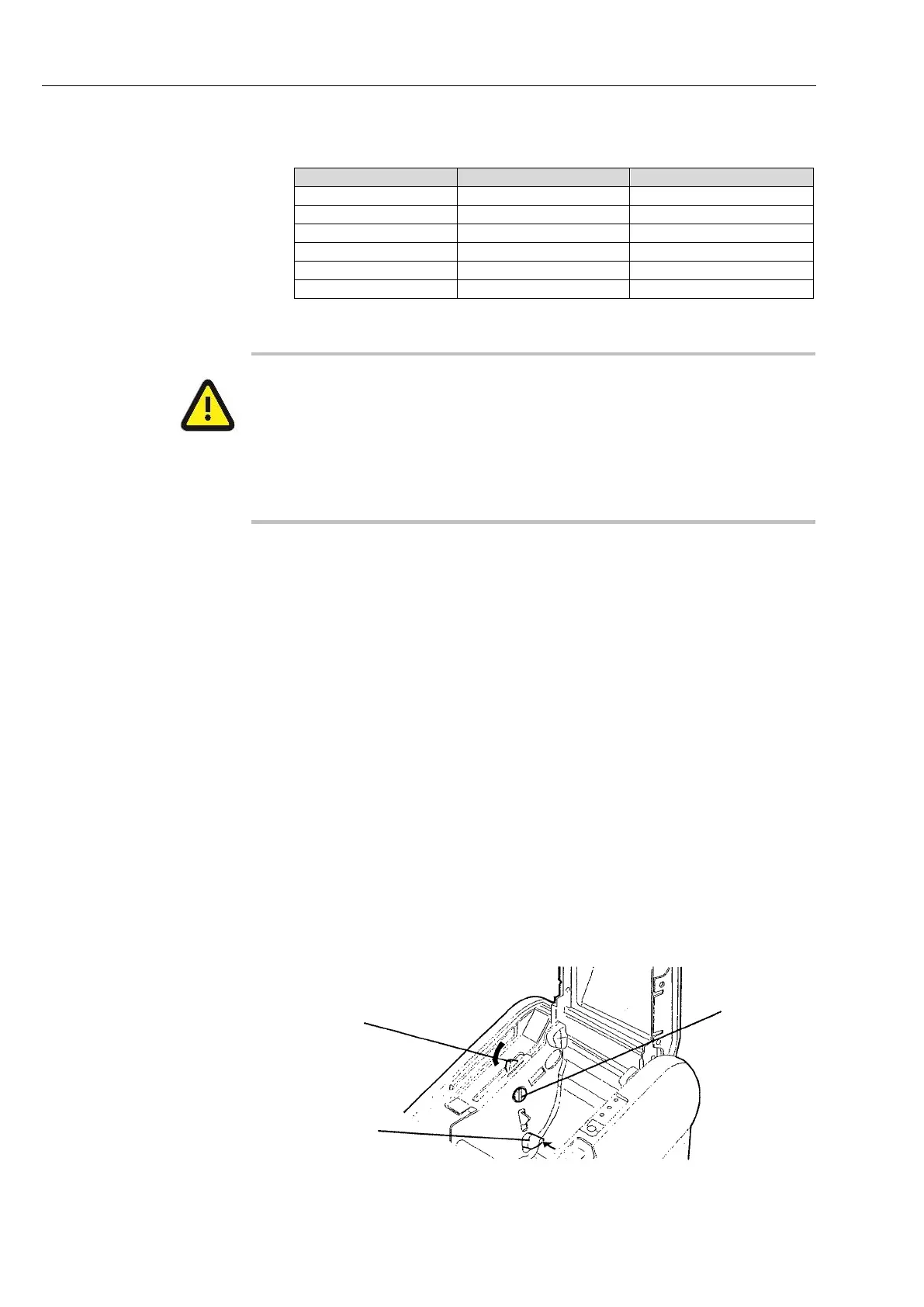

Changing the paper sensor position
D
r
e
h
k
n
o
p
f
T
a
s
t
h
e
b
e
l
Detector screw
Turning knob
Key lever
