ULTRASAMPLER® sample collection system
159
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020

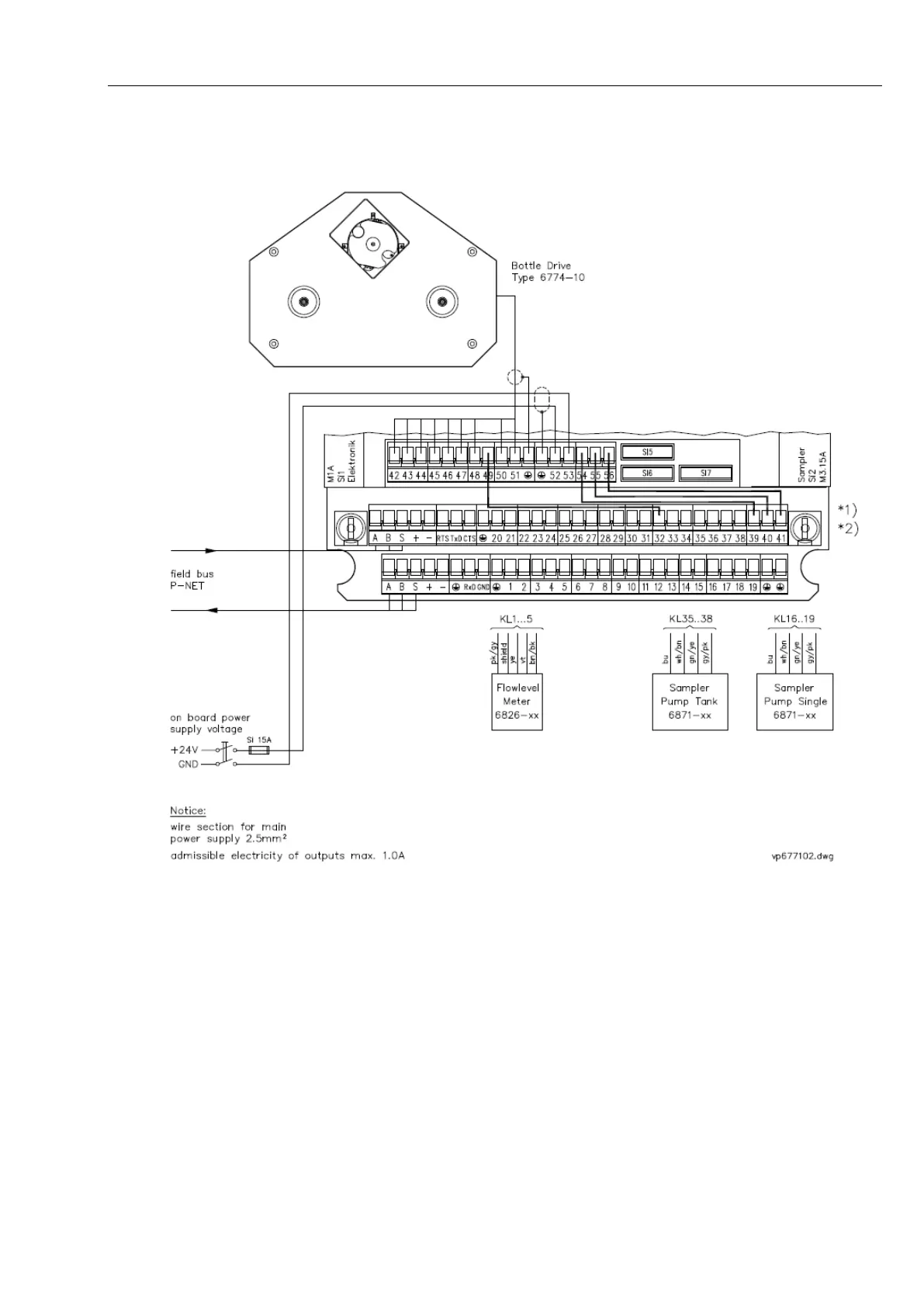

26.2.5 Wiring
Additional instructions for wiring:
*1) The outgoing wires from terminals 54 (red), 55 (blue) and 56 (black)
(= on-board power supply + sampler motor voltage) have to be connected to
terminals 39 (red), 40 (blue) and 41 (black).
*2) For bottle drive operation, a wire jumper is needed between terminal 32
(IN7) and terminal 49 (P-Star).
