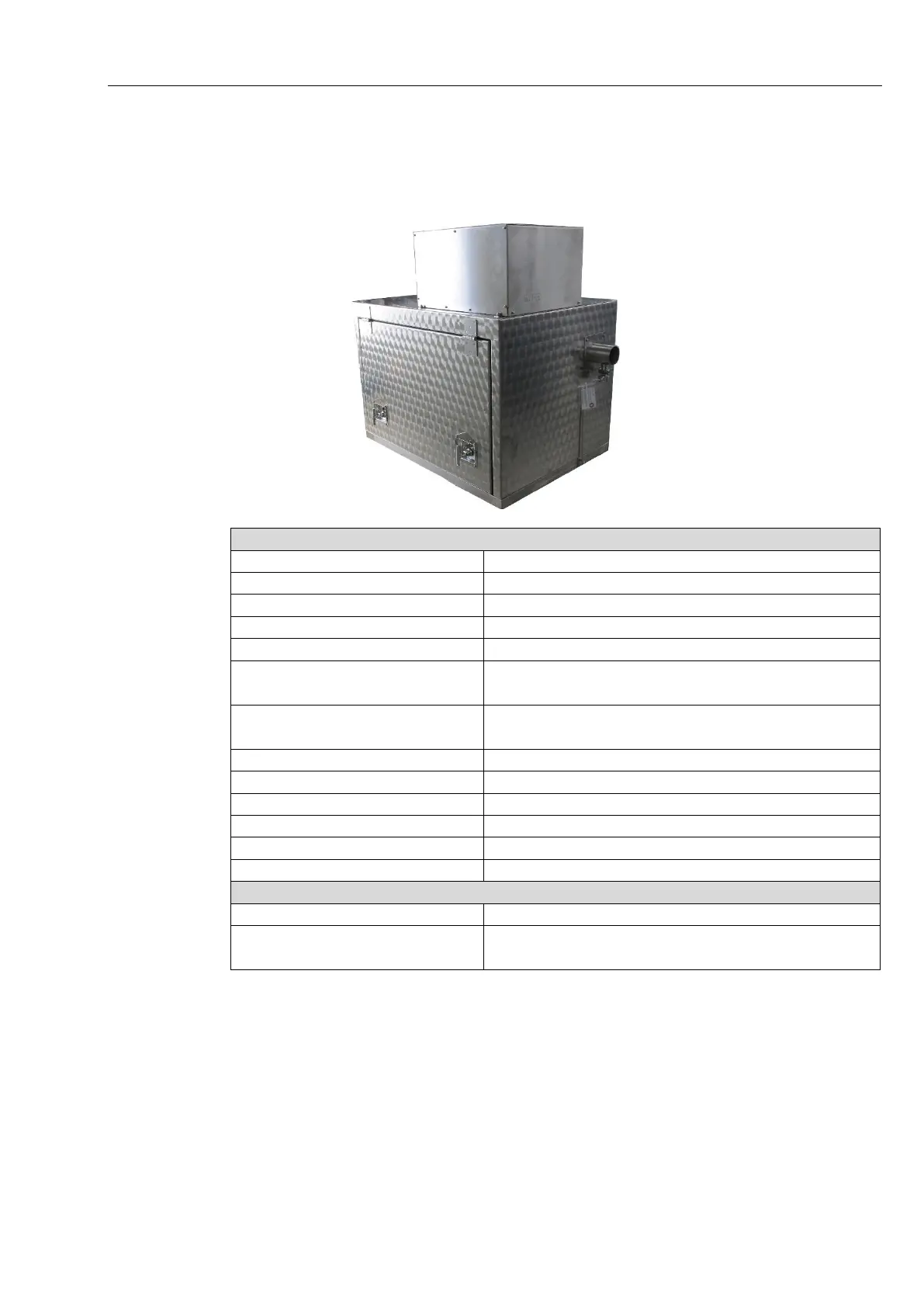

Bartec MAK TIGER 3003 - Large Sample Compartment with Cooler

Measuring system MAK E-TIGER 3003
79
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
6.13.6 Large sample compartment with coo-
ler
Electrical data
Cooling capacity
L6/L30
Adjustment range
To be defined by the customer
Accuracy at 50-100%
To be regulated by the customer
Evaporator cold side
Copper aluminium
Condenser
Resistant to seawater and cleanable with compressed air
Ventilation hot side
1x compact fan, installed internally, speed regulated
Protection class IP67
Ventilation cold side
1x compact fan, installed internally
Protection class IP67
Evaporator defrost
Hot Gas Bypass, with thermostat regulation
Compressor
Yes, 2x Aspen 1.9
Refrigerant
R 134a (FCHC-free)
Supply voltage
24 V DC via 2 cables +/-
Voltage monitor
Yes, battery monitor included as standard
Power consumption
Max. 30 A
Ambient conditions
Ambient temperature (operation)
+15°C to +40°C
Ambient temperature
(storage/transport)
+5°C to 75°C
