Measuring system MAK E-TIGER 3003
74
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020

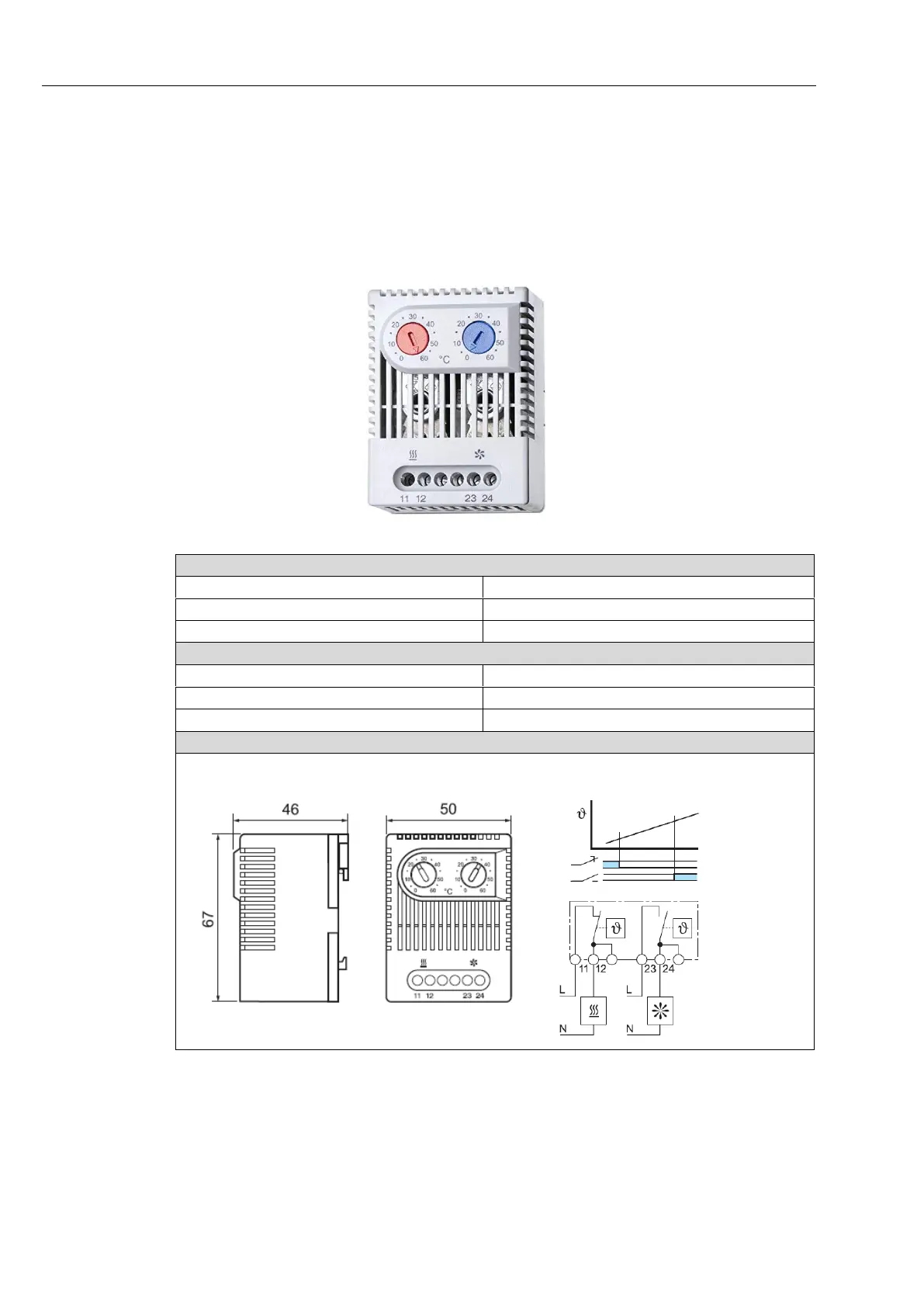

6.13.4 Control cabinet temperature controller
6.13.4.1 Control cabinet thermostat
S. no 394928
*Contact opens and contact closes is in relation to the rise in temperature.
The NC contact for the heater opens and the NO contact for the fan closes
when the specified value is exceeded.
Electrical data
Number of contacts
1 NC* and 1 NO*
Contact material
AgNi
Max. switching current DC1 30 V
1 A
Ambient conditions
Adjustable temperature range
0-60°C
Ambient temperature
-20 to +80°C
Protection class
IP20
Mechanical data
Dimensions Wiring diagram
