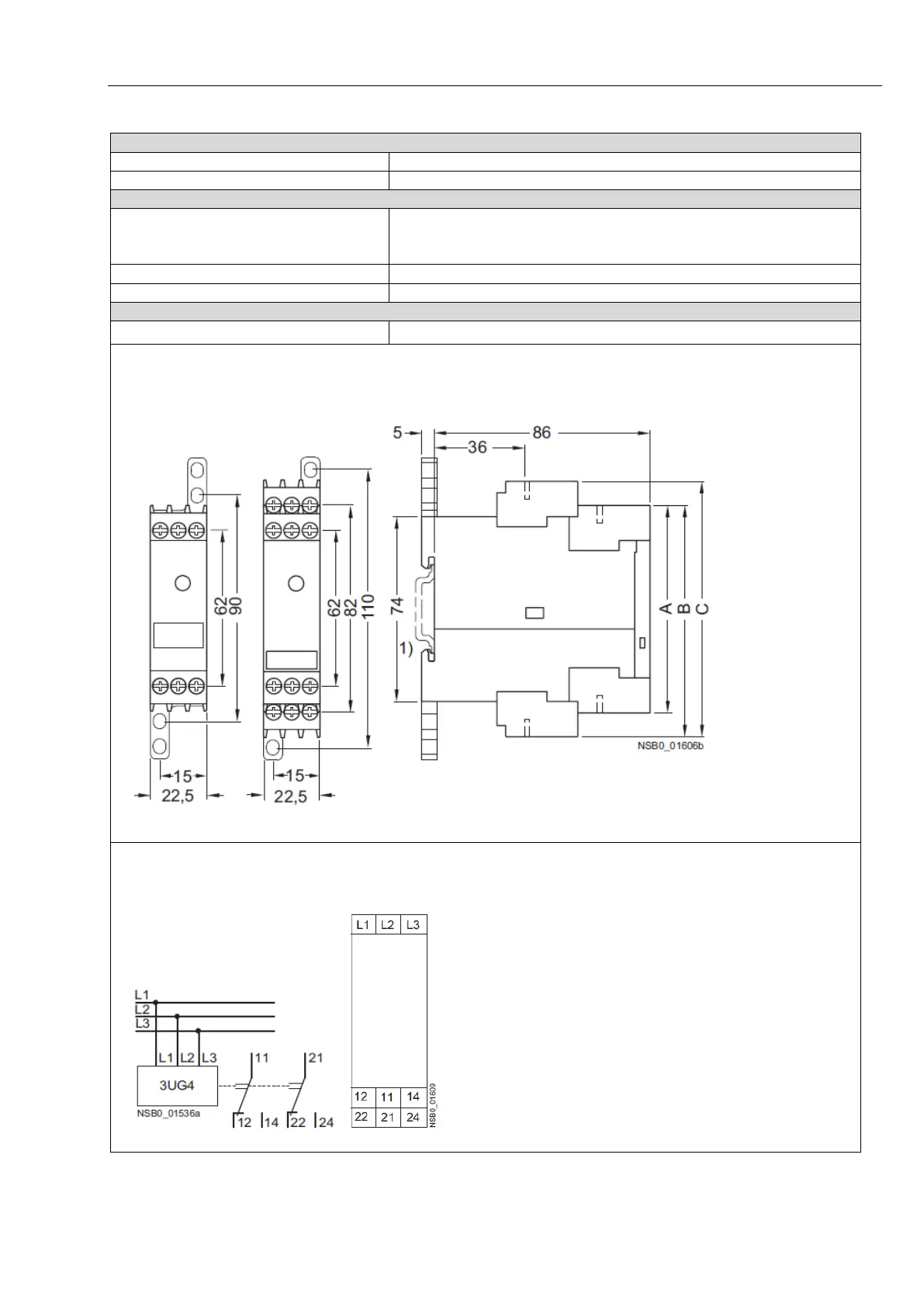

Bartec MAK TIGER 3003 - Page 81

Measuring system MAK E-TIGER 3003
73
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
Electrical data
Rated control supply voltage Us
160-690 V
Rated frequency
50/60 Hz
Ambient conditions
Permissible ambient temperature
• during operation
• during storage
-25 to +60°C
-40 to +85 °C
Connection type
Screw terminals
Protection type
IP20
Mechanical data
Overall width
22.5 mm
Dimensions
W 92 mm
Wiring diagram
