Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020

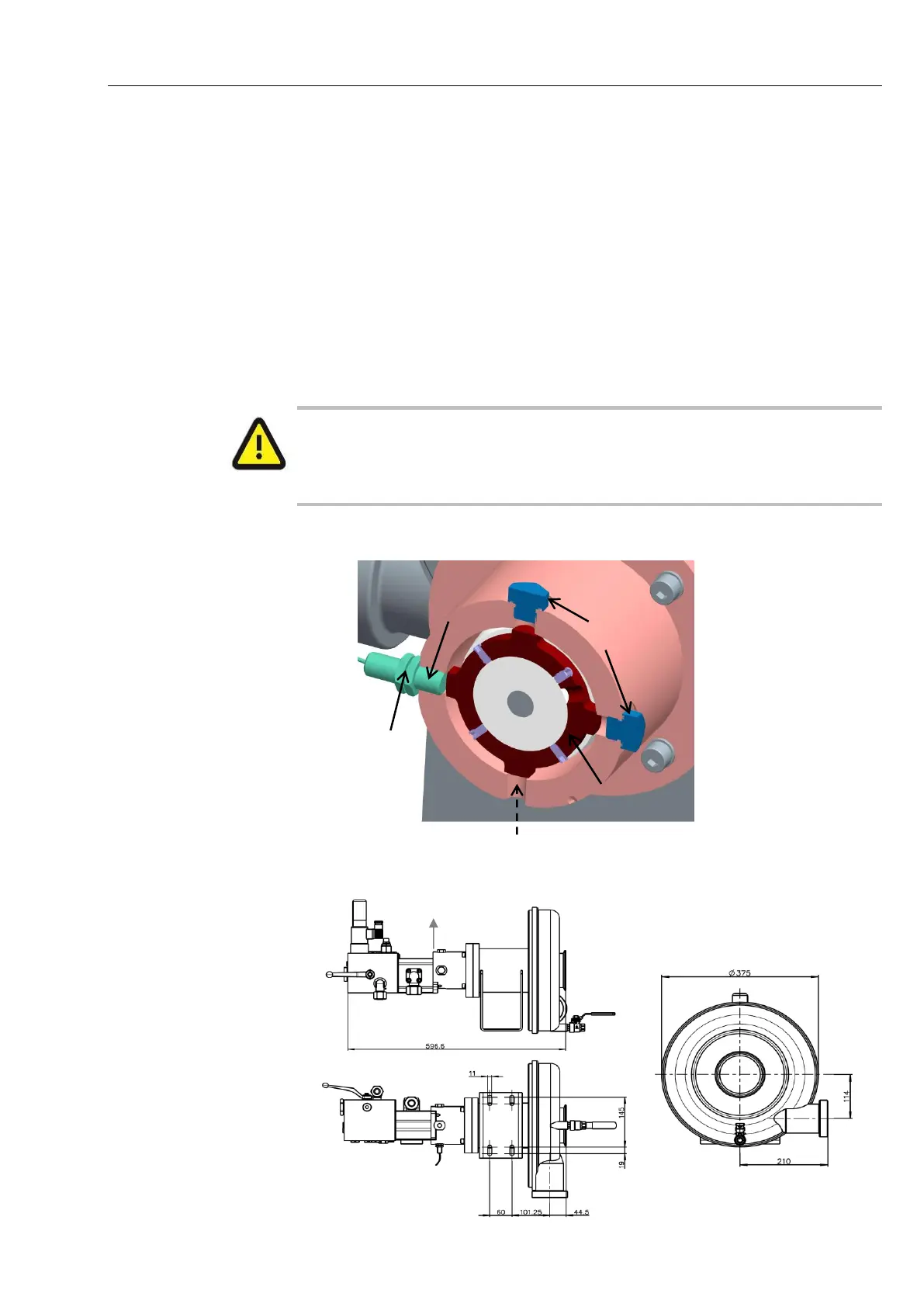

5.18 Mounting of rotation sensor to
rotary pump
 Install the proximity switch before the pump inlet is closed as afterwards
the pump can only be turned by hand.
 Turn the knob of the rotary encoder disk in front of the desired mounting
opening and screw in the proximity switch to the stop.
 Then turn it back by approx. 0.75 to maximally 1 rotation and lock it with
both nuts.
 If there is no signal, screw the proximity switch in again with a quarter turn.
Attention:
Non-observance of these mounting instructions can result in the destruction of the
proximity switch.
Cap (possible mount-
ing places)
Disk of rotary encoder
Bottom opening must be open
Locking nuts
Proximity switch
Mount preferably in the
direction of the rear wall
