6.13.5 Network connection

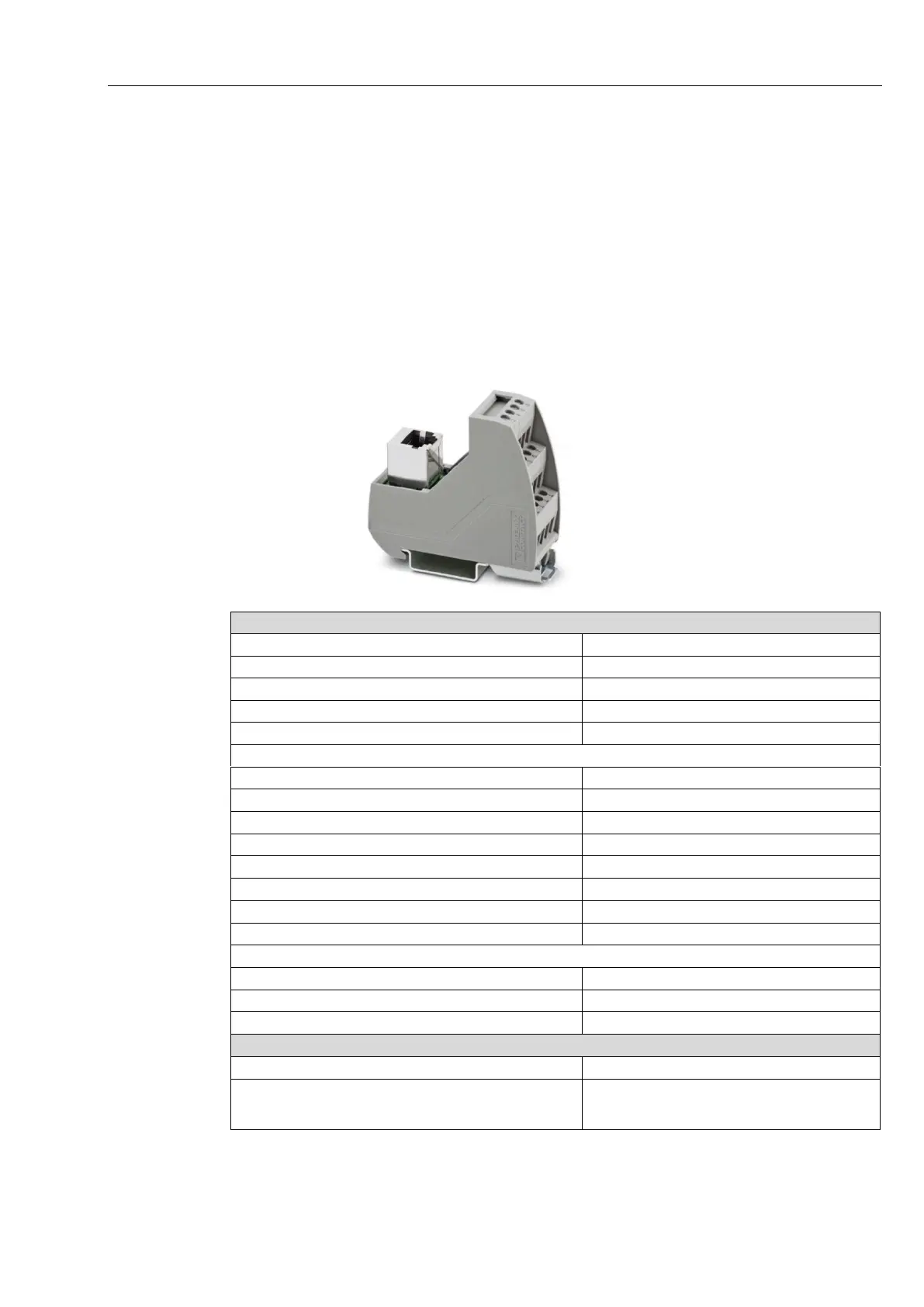

6.13.5.1 Transfer module RJ45
Order number 409688
The compact controller 6942-10 is already connected to the MAK E-Tiger
stationary 6905-370 control cabinet via an RJ45 patch cable. In the control
cabinet, a transfer module is installed for the RJ45 permanent network con-
nection. A permanently laid network cable can be connected as follows.
Electrical data
Max. permissible operating voltage
48 V AC/DC
Max. permissible current (per branch)
1 A
Max. permissible current (all branches)
4 A
Pole number
8
Installation position
any
Connection data Connection 1
Connection designation
Field level
Connection in accordance with standard
IEC / EN
Connection type
Screw connection
Stripping length
8 mm
Screw thread
M 3
Conductor cross section rigid
0.2 mm² 4 mm²
Conductor cross section flexible
0.2 mm² 2.5 mm²
Conductor cross-section
AWG 24-12
Connection data Connection 2
Connection designation
Control level
Connection type
RJ45 socket
Pole number
8
Ambient conditions
Ambient temperature (operation)
-20°C to 50°C
Ambient temperature
(storage/transport)
-20°C to 70°C
