ULTRASAMPLER® sample collection system
167
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020

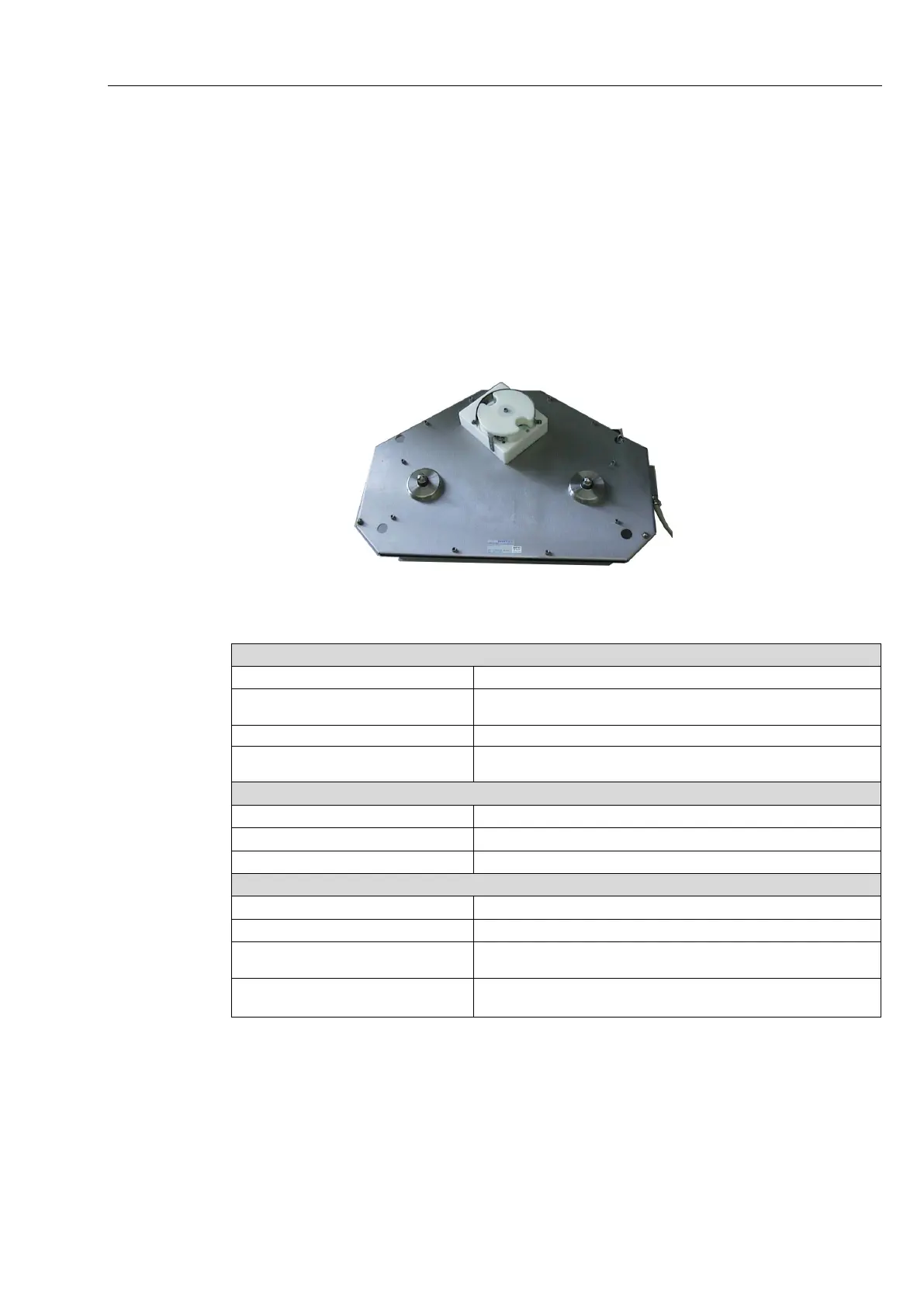

26.5 Bottle drive, type 6774-10
Bottle drive with pneumatic lifting gear
Order no.: U9441677410
The bottle drive is a hands-free system for the delivery and positioning of the
sample bottles for the ULTRASAMPLER® sample collection process and for
the simple insertion and removal of the round magazines of type 6875.
It is located in the refrigerated sample collection box on the collection vehicle
and holds the empty and full sample bottles in two round magazines.
26.5.1 Technical data
Electrical data
Auxiliary power
DC 24 V
Fuses
No internal fuses,
fused via drive system
Electrical connection
Connector plug with inset socket (F), type Han 16 A (16-pin)
Compressed air connection
Plug-in connection for hose with outer diameter of 5.0 mm
(see connection diagram!), 10 bar max. pressure, oil-free
Ambient conditions
Operating temperature
-10 ... +50°C
Storage temperature
-10 ... +70°C
Climatic category / protection class
JWA / IP 51
Mechanical data
Housing specification
Stainless steel, plastic (POM)
Weight
28 kg (excl. round magazines)
Round magazine
Type 6875 with sample bottles type 6845:
max. 72 sample bottles per magazine
code reader
Fitting facility for bar code reader, e.g. type 6834-10
6727-40 (not supplied with the product)
