Measuring system MAK TIGER 3003
31
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020

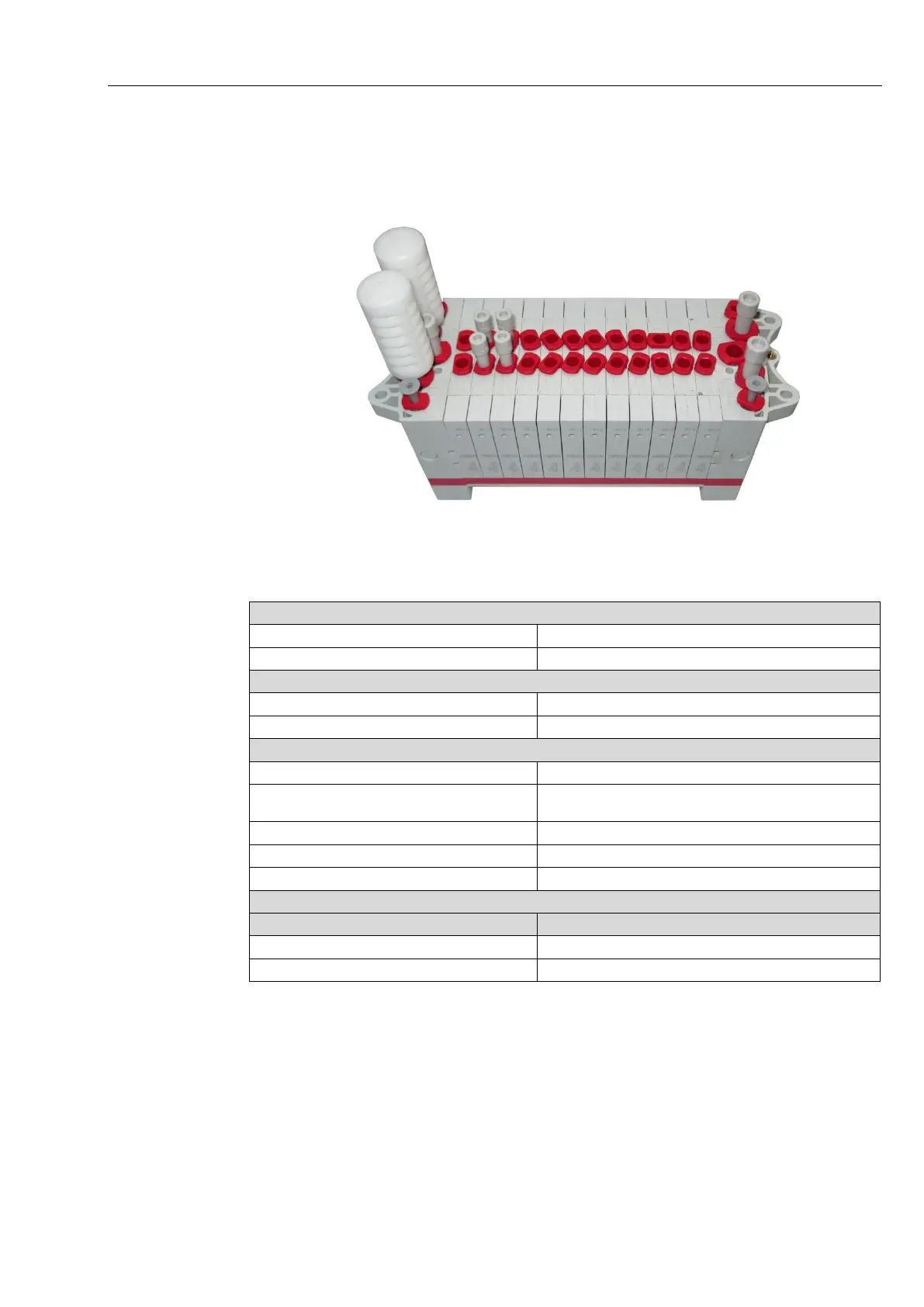

5.8 Valve terminal
Order no.: 292868
5.8.1 Technical data
Electrical data
Operating voltage
24 V DC 0.6 W
Connection
25-pole cable
Ambient conditions
Operating temperature
-5 … +50 °C
Protection class
IP 65
Mechanical data
Housing specification
PPA copolymer
Dimensions (excluding silencer and sealing
plug)
127.2 x 78.5 x 56
Operating pressure
Approx. 6 bar (max. 8 bar)
Air supply connection
 8 mm
Valve air connection
 6 mm
Accessories
Designation
Order no.
Bracket for pneumatic unit
292852
Substitute solenoid valve 5/2
292897
