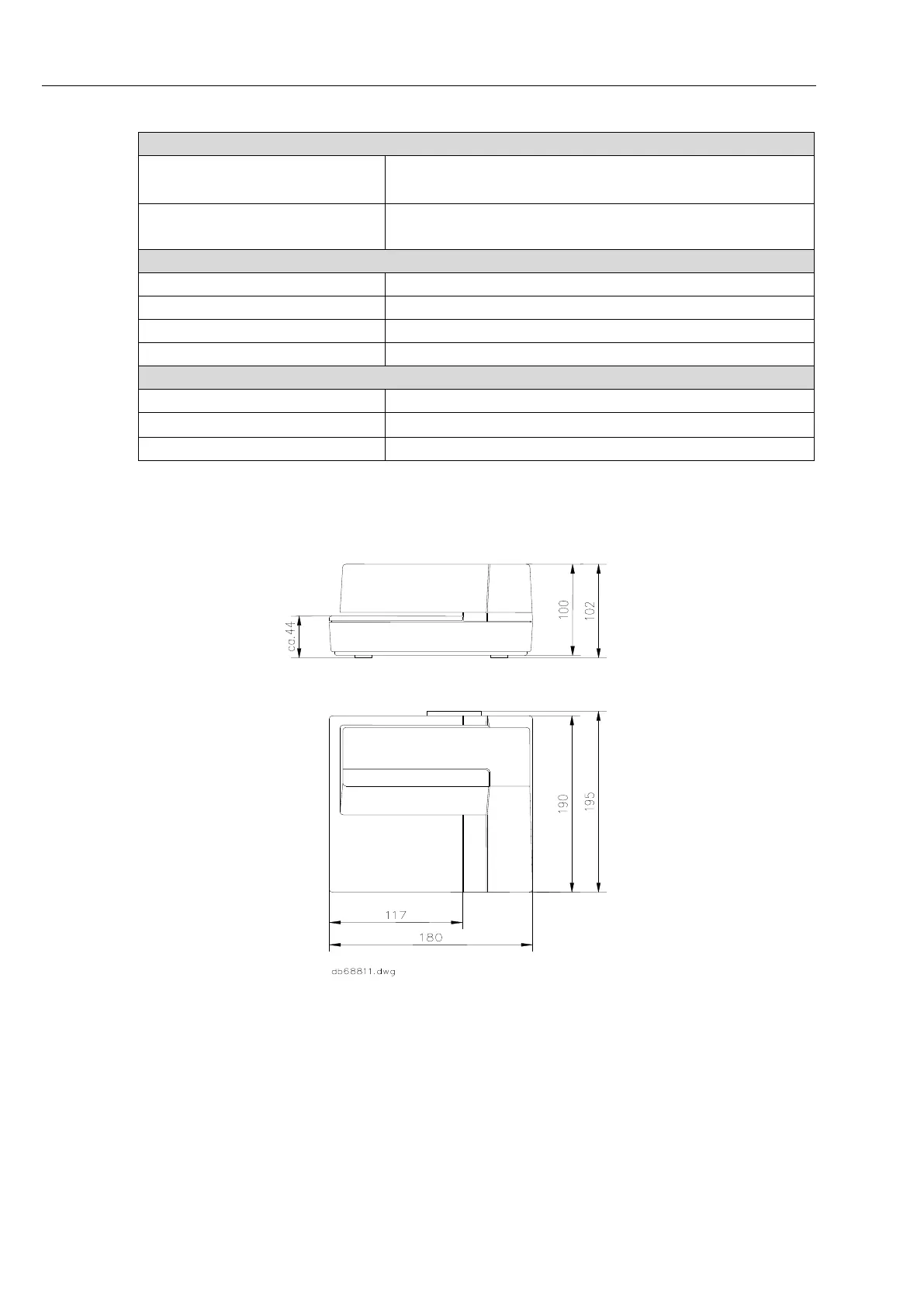

Printer type 6881-30
136
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
Electrical data
Power supply
DC 24 V 10 %, max. 1.0 A,
ripple 150 mV eff.
Connection
25-pole socket (RS 232),
3-pole plugs (power supply DC 24 V)
Ambient conditions
Operating temperature
+5° C … +40 °C
Storage temperature
-10° C … +50 °C
Climatic class
KYF
Protective system
IP 40
Mechanical data
Dimensions
180 x 102 x 195 mm (W x H x D)
Weight
Approx. 20 N ( 2 kg)
Housing
Plastic tabletop housing, grey
23.2 Dimensions
