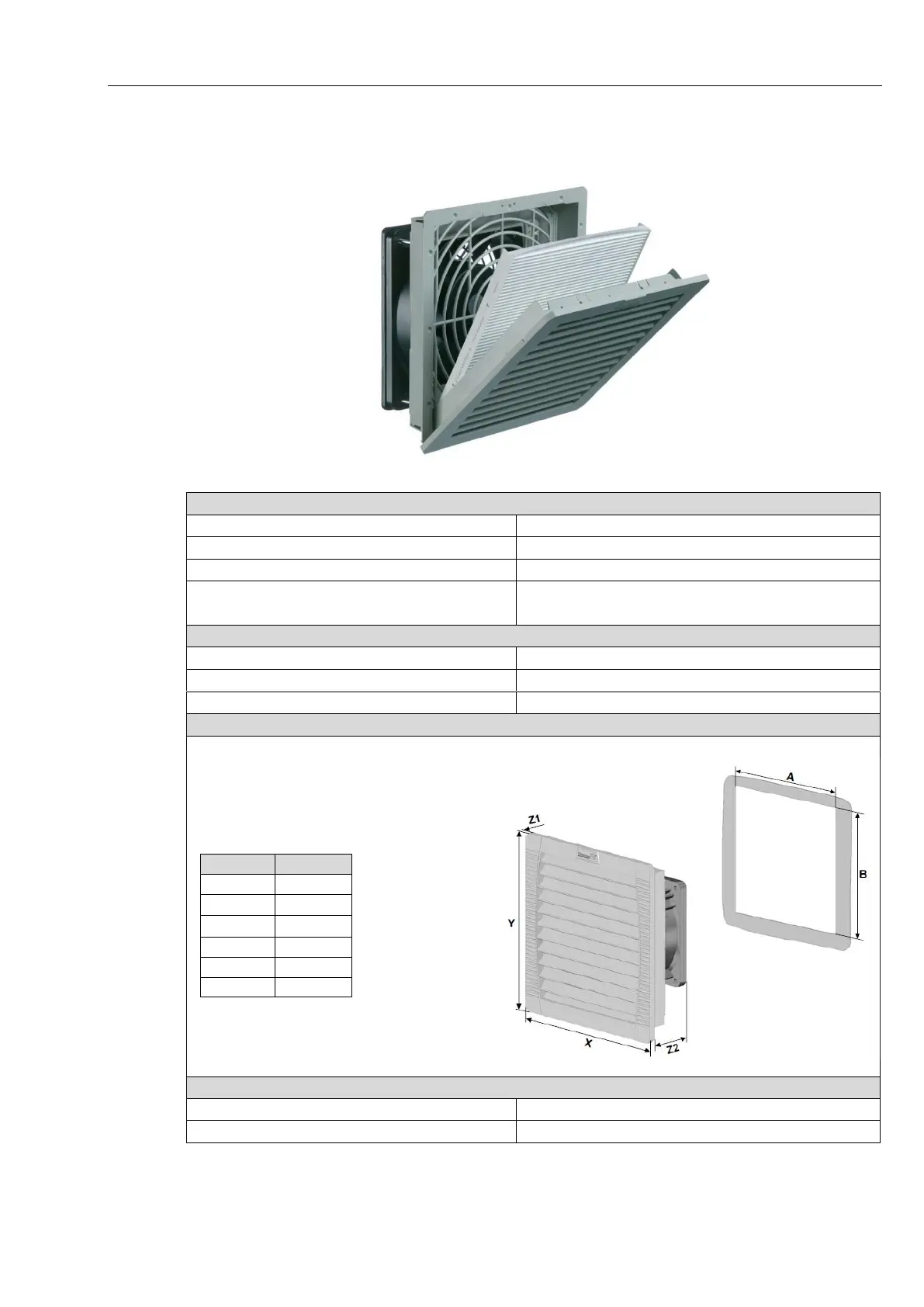

6.13.4.2 Filter fan control cabinet
Electrical data
Nominal voltage
±10% 24 V DC
Power consumption
0.21 A
Air flow rate free-blowing IP55
100 / 110 m³/h
Air flow rate in combination
(PF + PFA 30,000) IP55
55 / 64 m³/h
Ambient conditions
Noise level according to EN ISO 3741 IP55
40 dB (A)
Temperature range
-40 to +55°C
Protection class according to EN 60529 / UL 50
IP55 with NEMA Type 12 – folded filter
Mechanical data
Dimensions
mm
X
202
Y
202
Z1
6
Z2
81
A1
177
B1
177
1 for material thickness up to 2 mm
+1 mm for material thickness > 2 mm ≤ 3 mm
Accessories
Name
Order number
Filter fleece with housing IP55
365086
