26.10.2 Changing the pump hose
The pump hose can be changed at any time but not while the sampler is in
operation.
Removing the old pump hose
 Undo star handle and remove rotor protection (Plexiglas).
 Unscrew union nut on injection needle and intake cannula.
 Take out old pump hose, remove union nut.
Fitting the new pump hose
NOTE:
Make sure that the new pump hose is not twisted when it is fitted.
Check that the sample bottles are being filled properly after changing the
hose.
 Fit new pump hose on injection needle and tighten union nut.

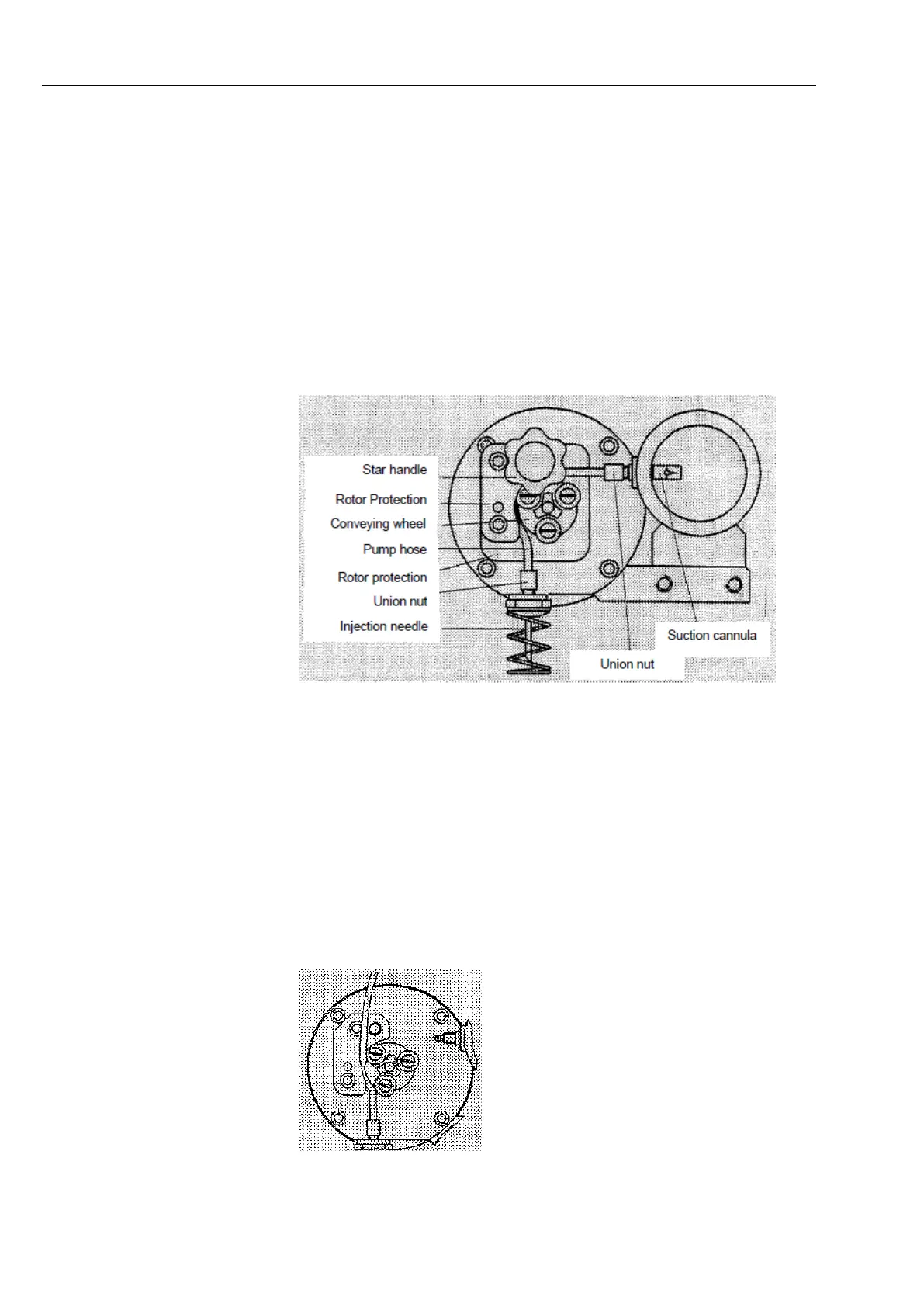

 Put the conveying wheel in the position shown in the diagram and fit
pump hose in the groove opposite.
