ULTRASAMPLER® sample collection system
193
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020

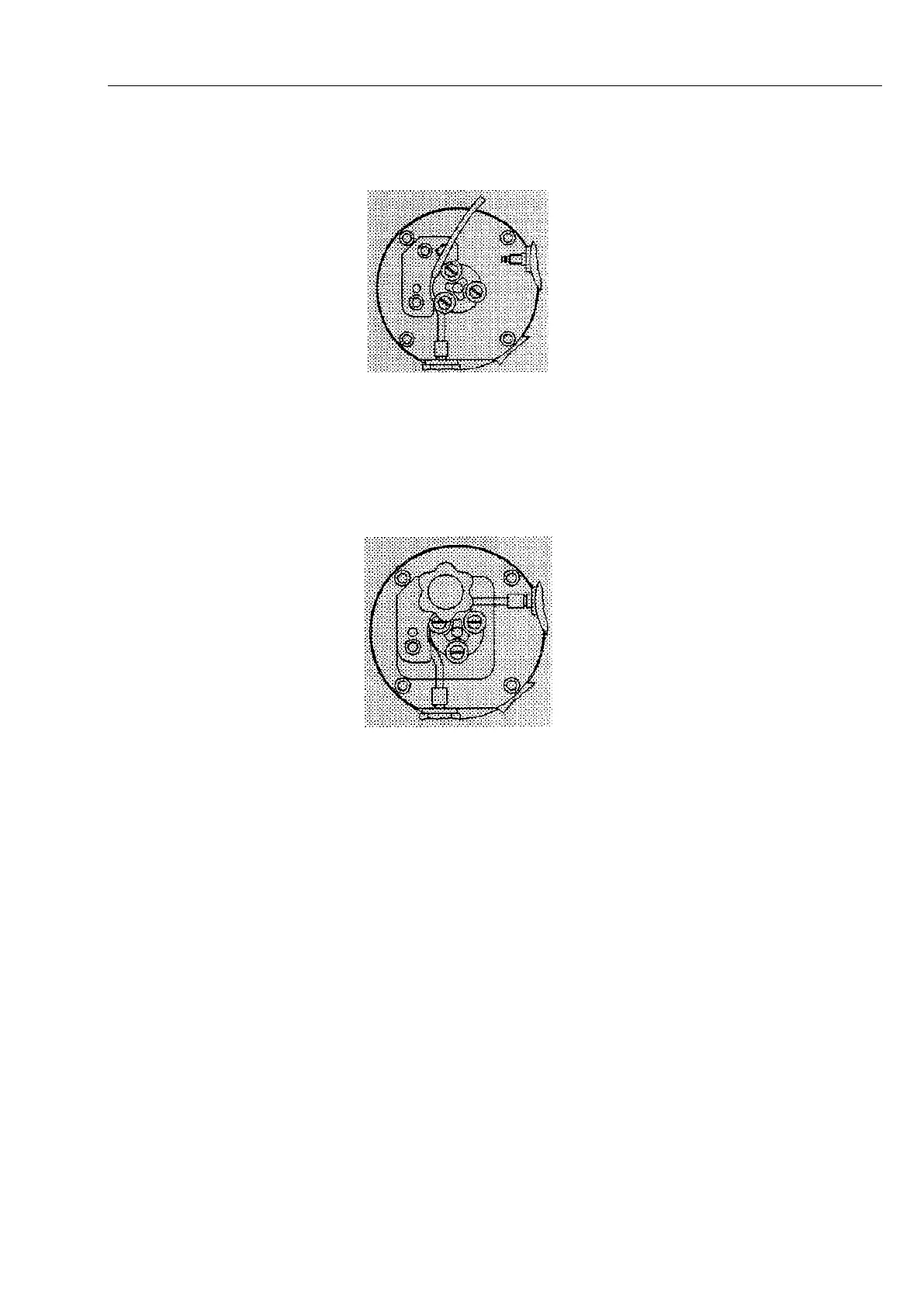

 Continue turning the conveying wheel clockwise and fitting the pump
hose until the pump hose is fully fitted in the groove.
 Place union nut on pump hose.
 Fit pump hose on intake cannula and tighten union nut.
 Fit rotor protection and screw down star handle.
