Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020

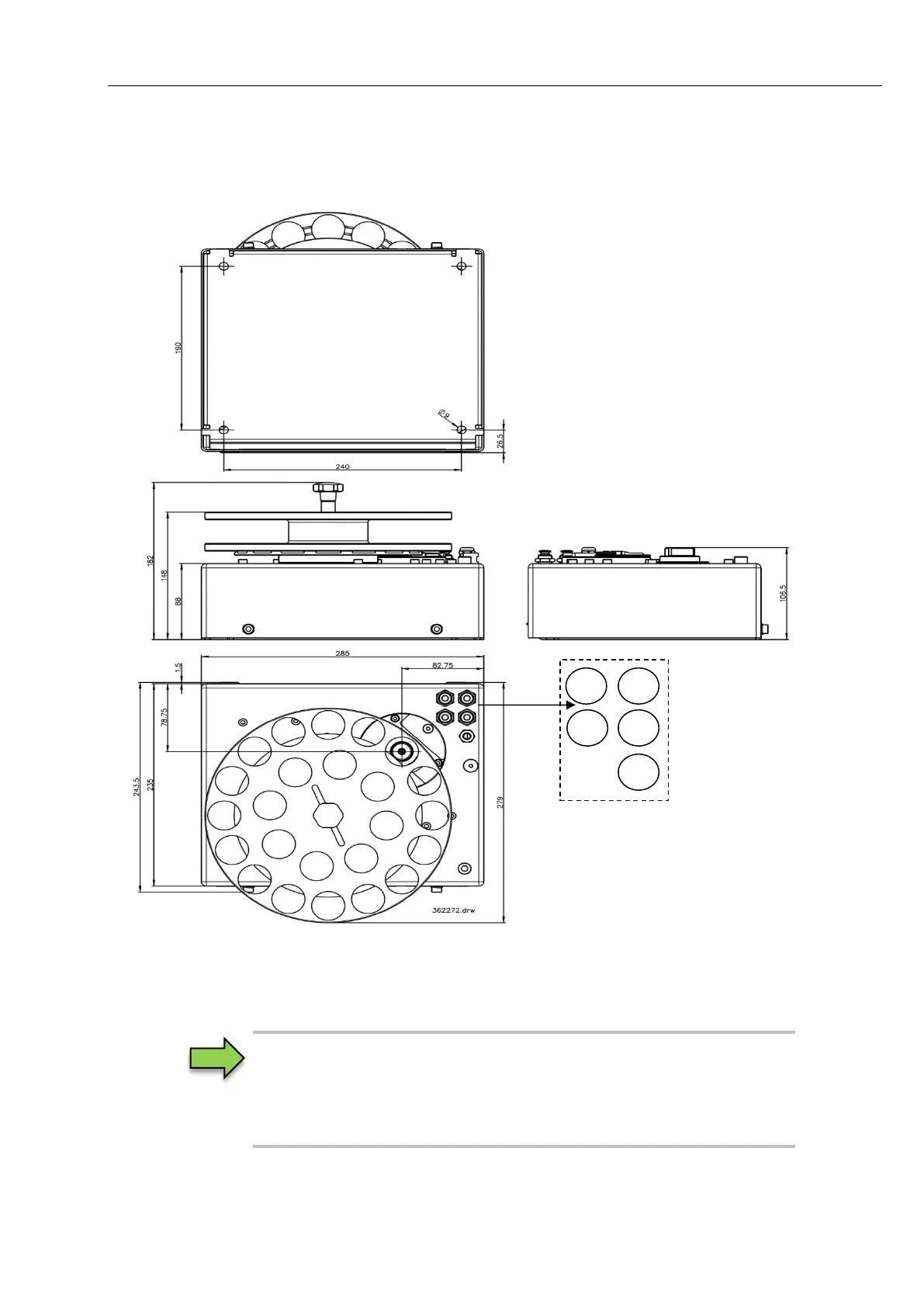

26.6.2 Dimensions and Assembly
Note:
When de-energized the bottle transport cylinder must be retracted, the star
can be turned by hand counter-clockwise! If the cylinder is extended, it clacks
loud when turning the star counterclockwise.
1
2
3
4
5
1 = Bottle transport cylinder backwards
(home position)
2 = Bottle transport cylinder forwards
3 = Bottle up
4 = Bottle down (home position)
5 = Disc magnet motor
Brown = 24 V DC
Blue = 0 V
