GPRS modem with Magnetic antenna
141
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
25 GPRS modem with Magnetic
antenna
 The modem housing (DGND) must not be in contact with the chassis. The
modem is therefore installed with the insulation set.
 Please also check that the antenna adapter and antenna are unearthed.
25.1 GPRS Module, Type 6942-100
Order no.: 290337
25.1.1 Technical data
Operating voltage
DC 5 ... 36 V / approx. 83 mA at 24 V
Dimensions
77 x 67 x 26 (L x W x H)
Weight
Approx. 90 g
Fixing
Two M3x30 mm countersunk rounded-head screws
on plastic
Operating temperature
- 30...+ 75 °C
Storage temperature
- 40...+ 85 °C
25.1.2 Connections
Attention:
The modem must be affixed with plastic bolts.

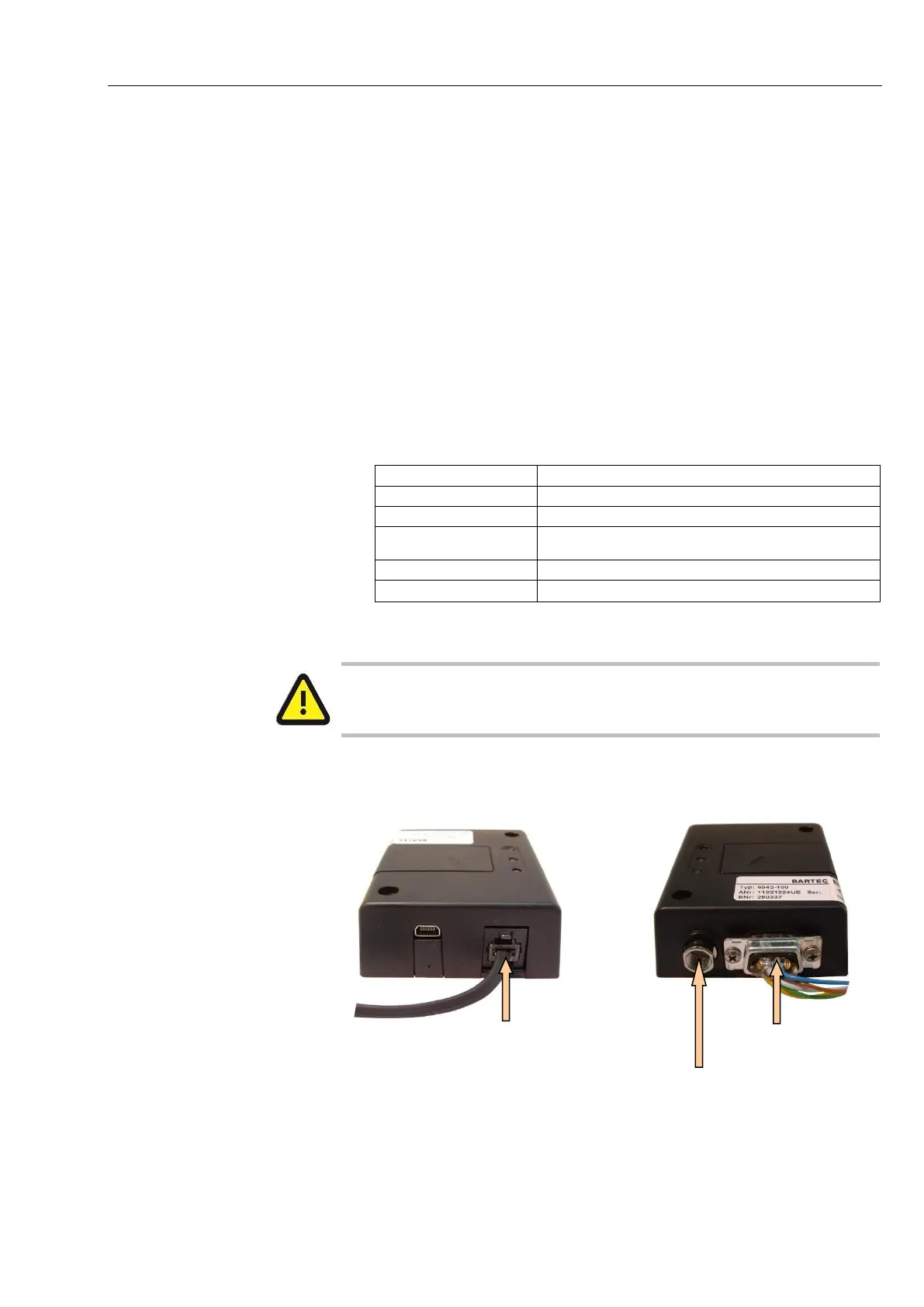

Front view Rear view
Power cable
connection
RS 232 interface
(15-pin D-sub)
Aerial socket
