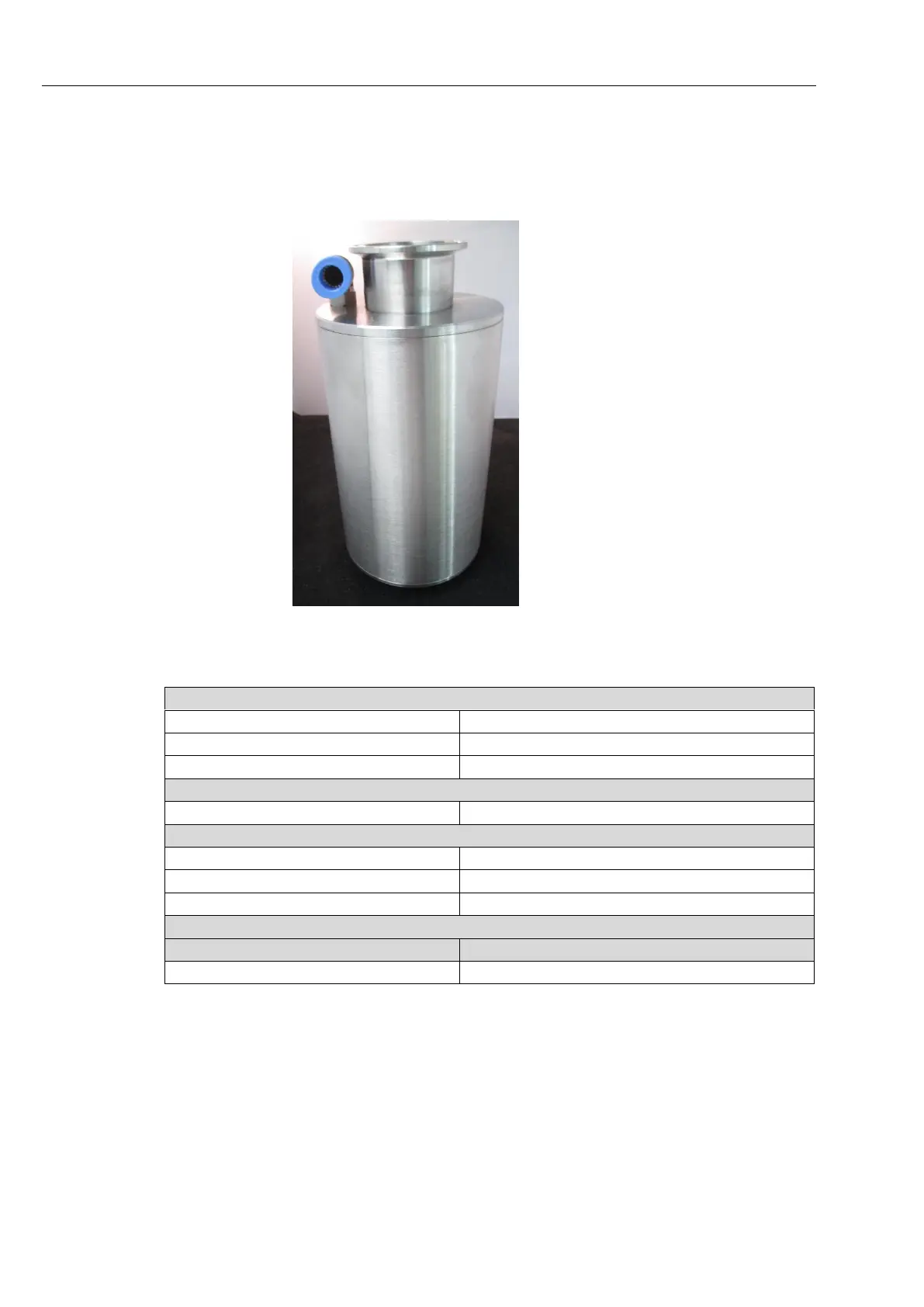

5.11 Ejector
Order no.: 305145
5.11.1 Technical data
Device-specific data
Operating pressure
Max. 7.5 bar, typ. 5.6 bar
Compressed airflow
430 Nl/min @ 5.6 bar
Air connection
 12 mm
Ambient conditions
Operating temperature
-20 … +80 °C
Mechanical data
Housing specification
Stainless steel
Connection
DN 50 clamp
Dimensions
225 x 108 x 108
Accessories
Designation
Order no.
Ejector connection fitting 1/4"
391223
