Pressure sensor G ½“
91
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020

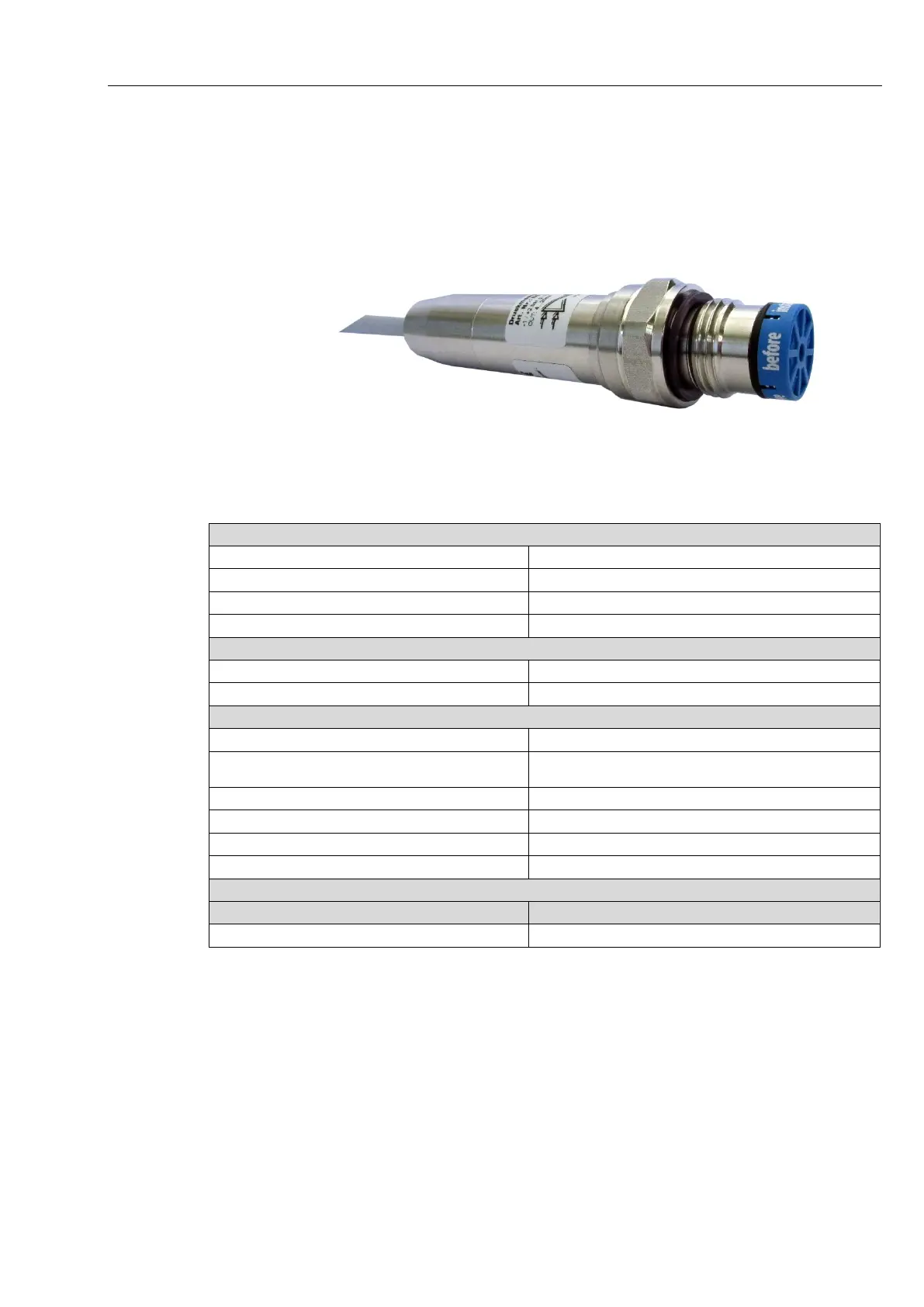

11 Pressure sensor G ½“
Order no.: 292600
The pressure sensor is used to measure relative pressures in viscous liquids
and gases.
11.1 Technical data
Electrical data
Operating voltage
24 V DC
Output signal
4 … 20 mA
Measuring range
-1/+2 bar
Connection
2-wire
Ambient conditions
Fluid temperature
-20 … +90 °C
Operating temperature
-20 … +80 °C
Mechanical data
Housing specification
Nickel chromium steel 1.4301
Specification of parts coming into contact with
fluid
Nickel chromium steel 1.4435
Connecting cable
5 metres
Range of application
Pressure relief up to max. 10 bar
Housing dimensions
Approx.  30 x 100 mm
Fitting
Welded socket ½"
Accessories
Designation
Order no.
Pressure sensor mounting
292601
