Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
26.3.2 Dimensions/Installation
Fitting
The flow level meter can either be laid flat or fitted upright depending on the
design of the unit.
The milk pipe must always be horizontal.
Horizontal (flat) installation: order "Horizontal" version
Vertical (upright) installation: order "Vertical" version

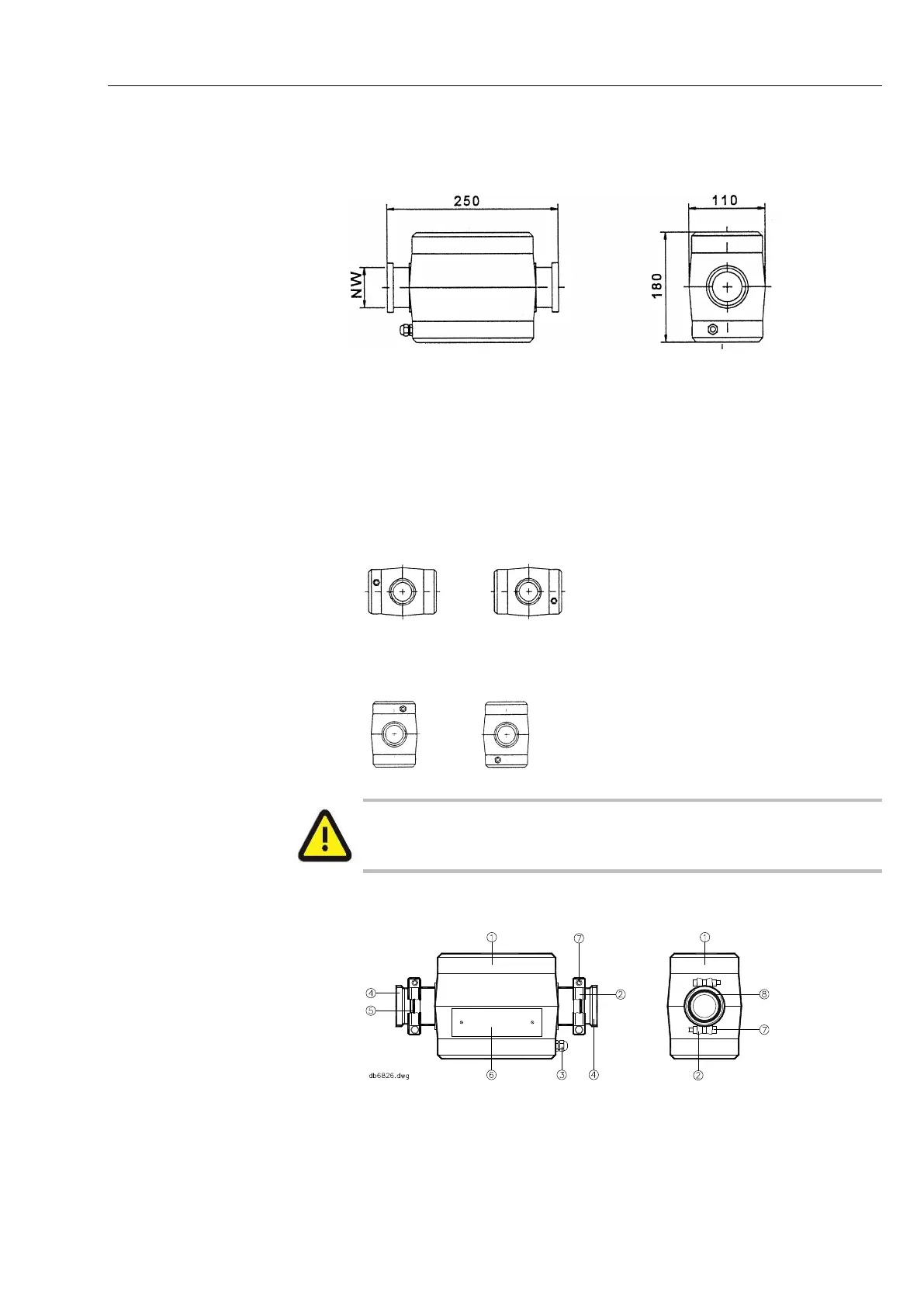

1 = Cover 5 = Flat gasket
2 = Fastening clamp 6 = Type plate
3 = Cable feed 7 = Hexagon head screw
4 = Connection 8 = Sealing ring
