Compact Controller TIGER Type 6942-10 Serie C
16
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
4.6.4 CAN bus termination (terminal resis-
tor) (Series C)

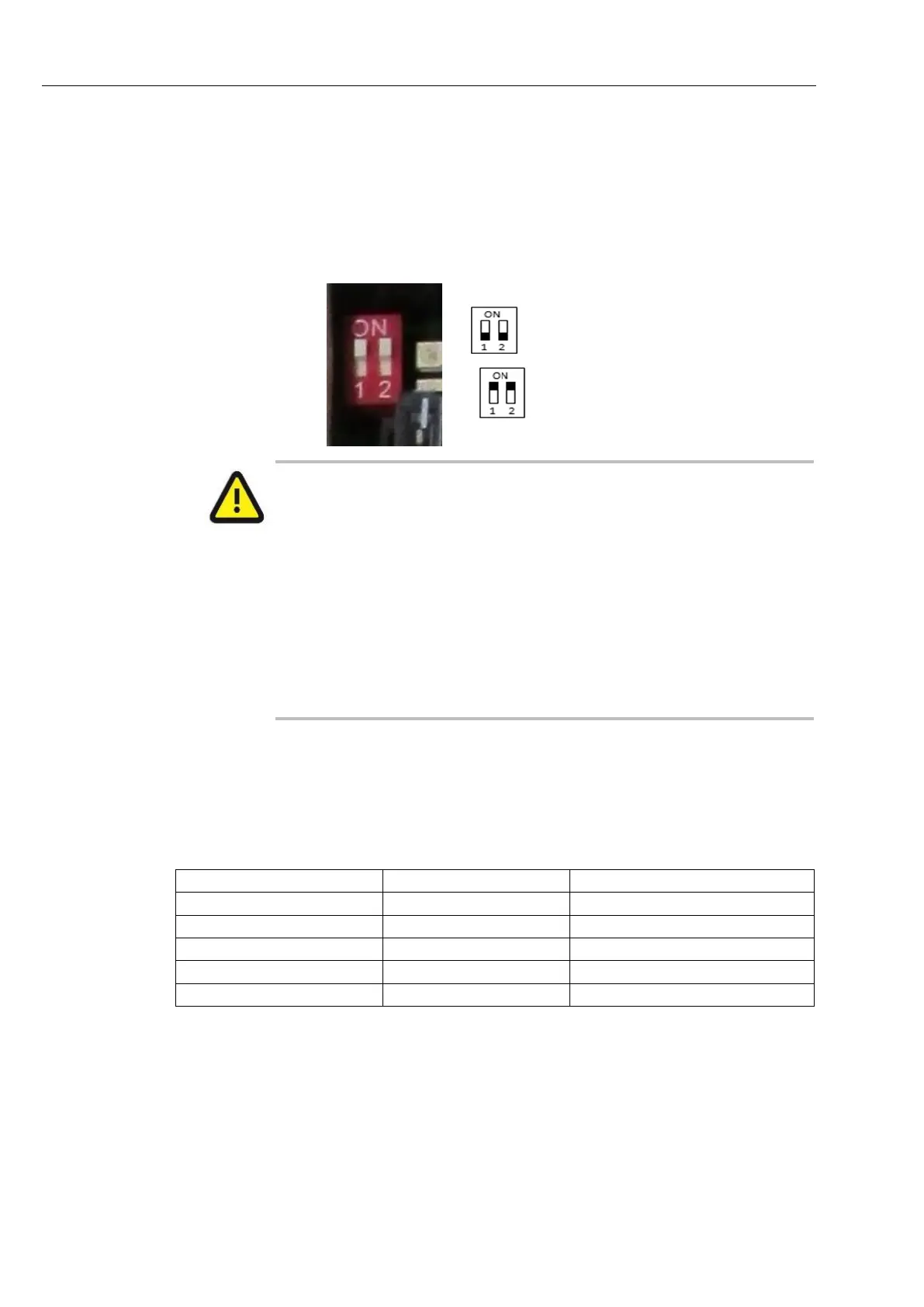

The CAN bus line must be terminated at both ends. Using DIP switches (see
picture below), the CAN bus termination/the terminating resistor on the com-
pact controller can be switched on and switched off.
CAN bus termination deactivated or
terminating resistors switched off.
CAN bus termination activated or
terminating resistors switched on.
Attention:
CAN bus line:
It should be used a bus line which is isolated twisted and compliant to the
CAN system (e.g. UNITRONIC BUS CAN 1x2x0.5 mm²).
CAN bus shielding:
The shield of the CAN bus line must be connected at one side.
CAN bus termination at FMS connection:
Via the DIP switch the CAN bus line must be terminated on the compact
controller
4.6.5 Serial interfaces
4.6.5.1 Motherboard without CAN-Bus
Designation
Terminals
Interface on the system
GPRS
White plug
dev/usb/ttyUSB0
Bluetooth
Display connector
dev/usb/ttyUSB1
GPS
4-7
dev/ttyS3 (not changeable)
Printer
8-13
dev/ttySM0
RS485/RS232
66-69
dev/ttyS4
