Milk sensor, series B type 6703-16
87
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020

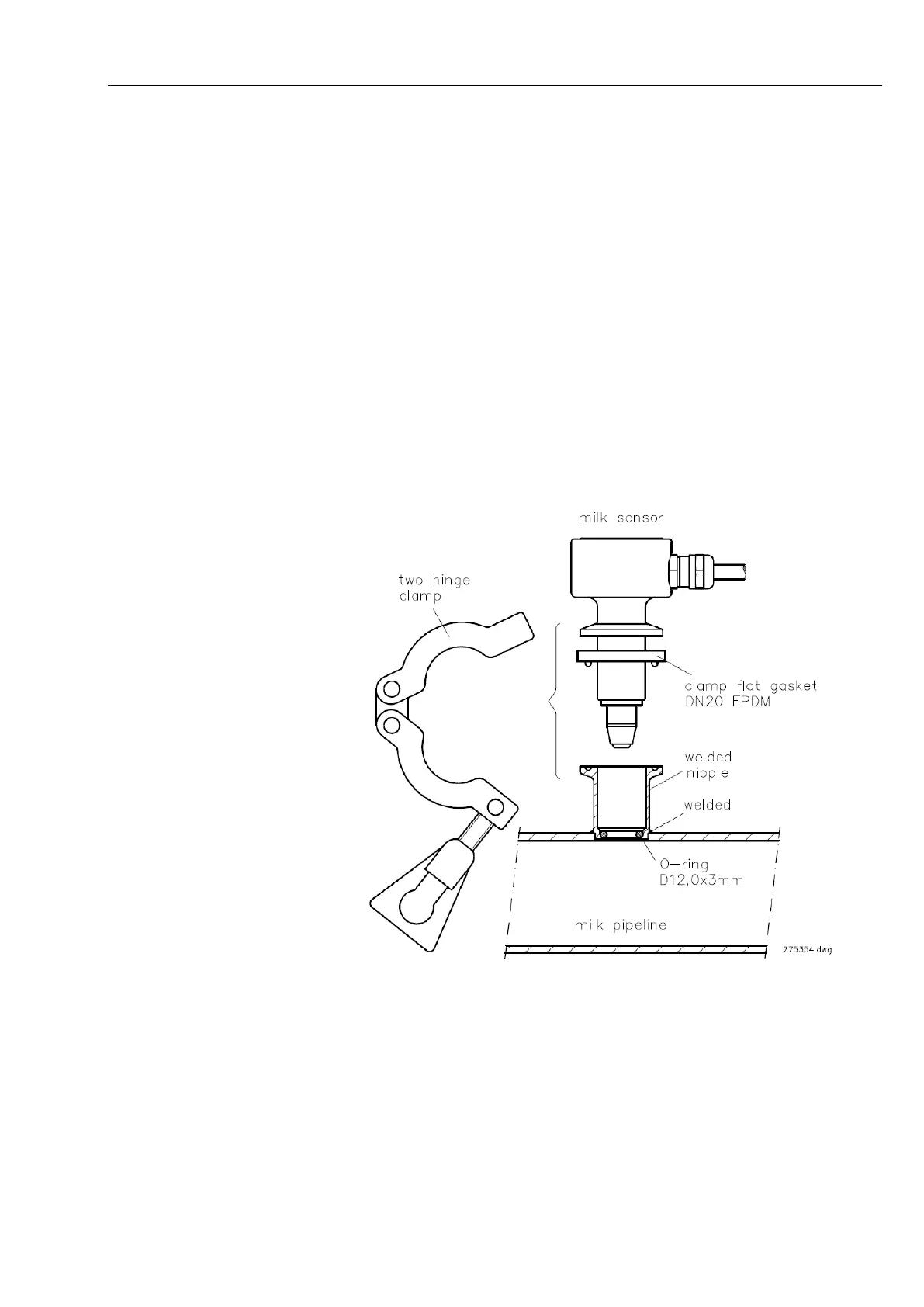

9.3 Assembly/installation
Follow the instructions below for installation in the milk pipeline by means of
welded socket type 6701-00-021:
Weld the socket into the milk pipeline, mask joints and clean.
Apply a light coating of grease to O-Ring D 12,0 x 3,0 VMQ 70 FDA
(Best.Nr. 335326) (attached to temperature probe), insert it in the welded
socket and, using a fingertip, fit it carefully in the O-ring groove at the front
end. Adjust and use fingertip to check that it is seated evenly.
Fit clamp-type flat gasket DN 20 EPDM on tip of probe and insert probe
carefully in welded socket as far as it will go, making slight turns to the
left/right to ease it in.
Lock the probe in position with the two-hinged clamp, tightening the wing
bolt by hand only.
