Printer type 6881-30
137
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020

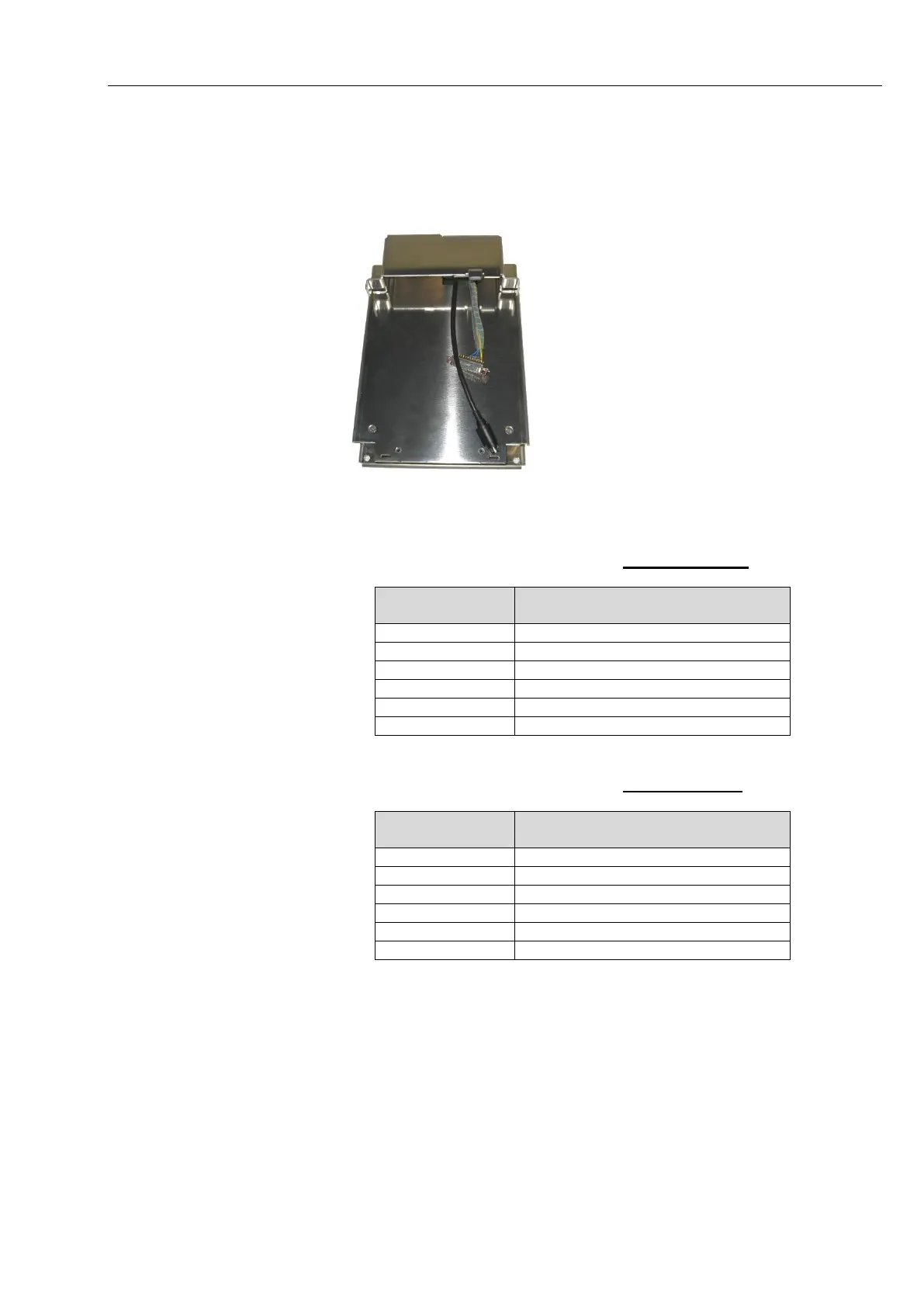

23.3 Printer mount type 6961-100
Order no.: 279562
23.3.1 Printer mount connection
Connection of printer mount without series
Terminal
Terminal connection
Printer mount type 6961-100
8
24 V (rd)
9
RxD (ye)
10
11
TxD (gn)
12
13
GND (bu)
Connection of printer mount from series A
Terminal
Terminal connection
Printer mount type 6961-100
8
24 V (rd+wh)
9
RxD (ye)
10
11
TxD (gn)
12
13
GND (bu+bk)
