ULTRASAMPLER® sample collection system
183
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
26.9 Installation
26.9.1 Fitting the refrigerated sample collec-
tion box
Standards required of the refrigerated sample collection box
All the Ultrasampler units, except for the Controller, are located in a special
refrigerated sample collection box.
This sample collection box has to be made to fit the Ultrasampler assembly
and installed in the intake cable of the collection vehicle or another suitable
location.
The following points need to be factored into the design and positioning:
There must be space for the sampler and bottle drive in the sample
collection box (Fig. 2, Fig. 3).
The bottle drive is seated horizontally in the sample collection box and
also needs to be kept horizontal during its insertion and removal.
It must be possible to insert and remove the round magazines of the
bottle drive easily.
The milk pipeline on the collection vehicle should be routed through the
refrigerated sample collection box at an incline of 1 0.5 % (towards the
intake socket). There must be not be any mechanical forces on the
connecting flanges either during assembly or during operation.
It must be possible to fix the branch pipe with two holders on the cover
of the sample collection box. The holders should sit on the branch pipe
ends.

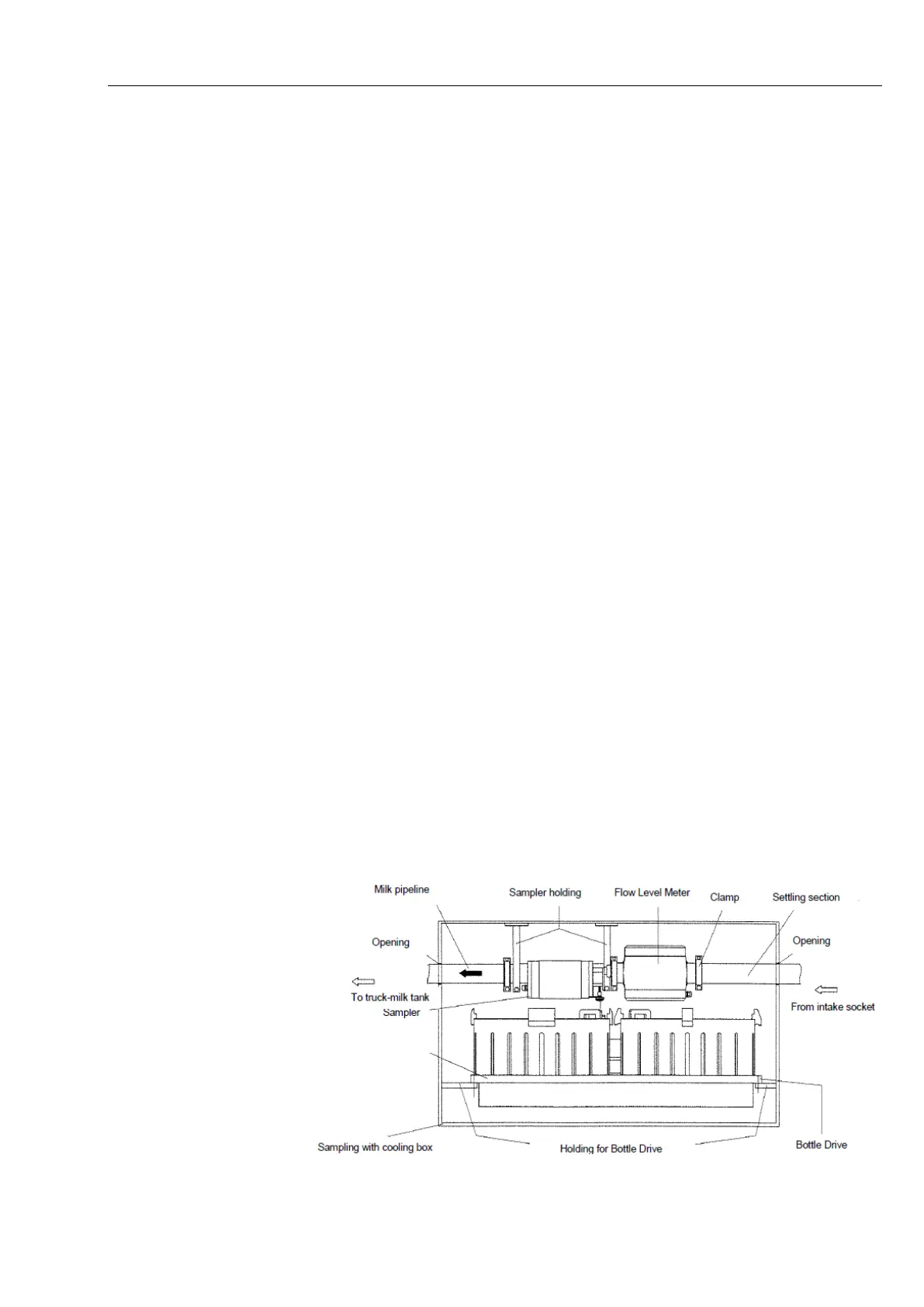

Fig. 1 - ULTRASAMPLER in refrigerated sample collection box
