ULTRASAMPLER® sample collection system
182
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
Wiring magnet disk motor
Motor
US-Controller
Type 6870-2
US-Controller
6771-30
Bottledrive-Insert
Type 6757-112
Ader 1 (+ 24 V)
Clamp 24
Clamp 42
Clamp 402
Ader 2 (0 V)
Clamp 34
Bridge from clamp 22
to clamp 18 (GND)
Clamp 47 (GND)
Bridge from clamp 33 (IN 8)
to clamp 34 (GND)
Clamp 407 (GND)
Bridge from clamp 411 to clamp
407 (GND)

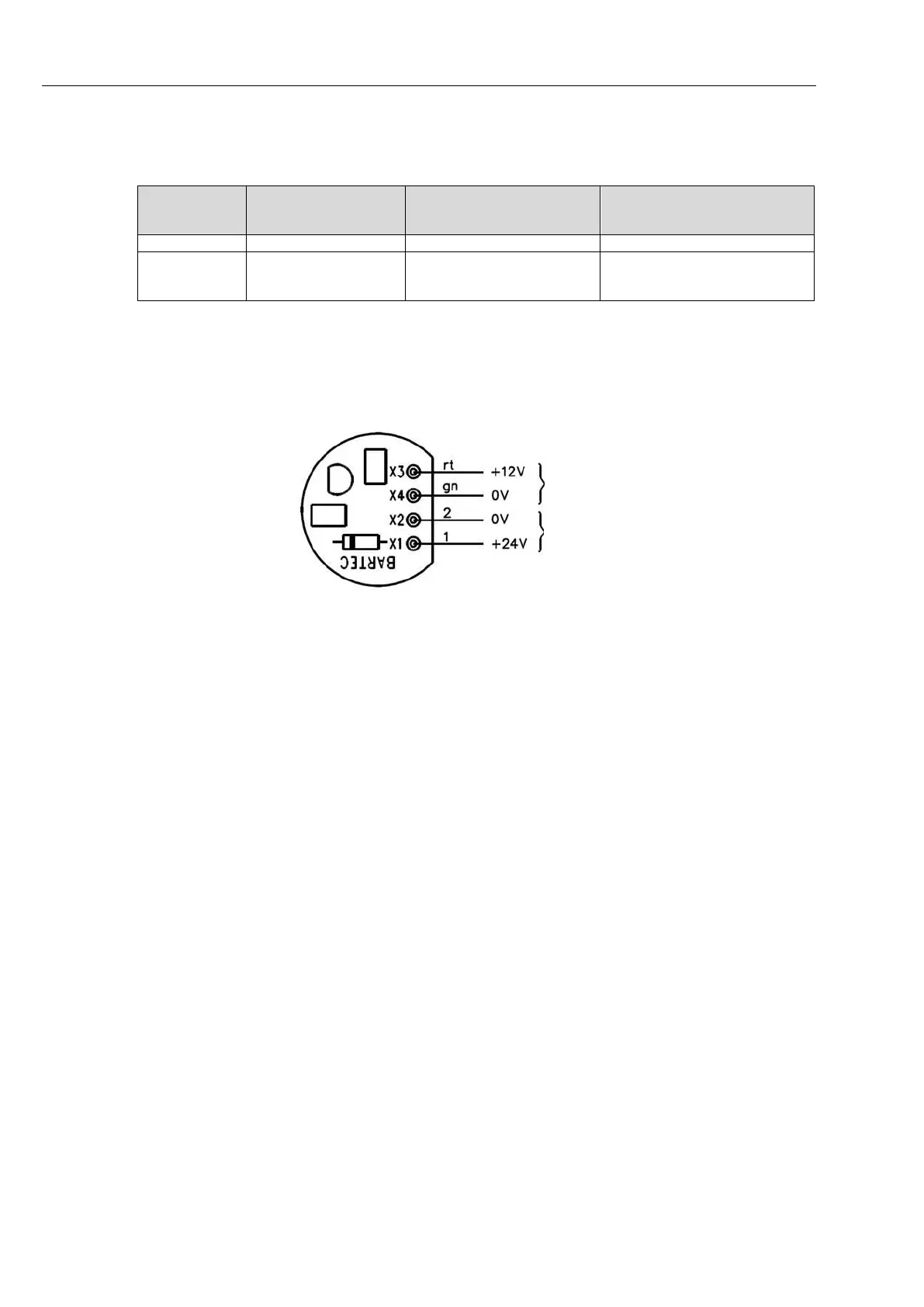

Stabilization 12 V/24 V for magnetic disc motor, type 6870-400
Barcode reader type 6727-40
The barcode reader is connected to the reading station Type 6723-10.
The wiring and settings can be found in the corresponding chapters of this
manual!
Spare parts
Proximity switch: Order-No..: U496004, plus switching
Proximity switch: Order-No.: U495593, ground switching
Motor 12 V: Order-No.: U371061
Stabilization 12 V/24 V: Order-No.: U06001398
Controller Settings
In the controller (periphery), the logical inputs "55, 56" must be assigned to
the physical input used.
Connection cable
Motor
