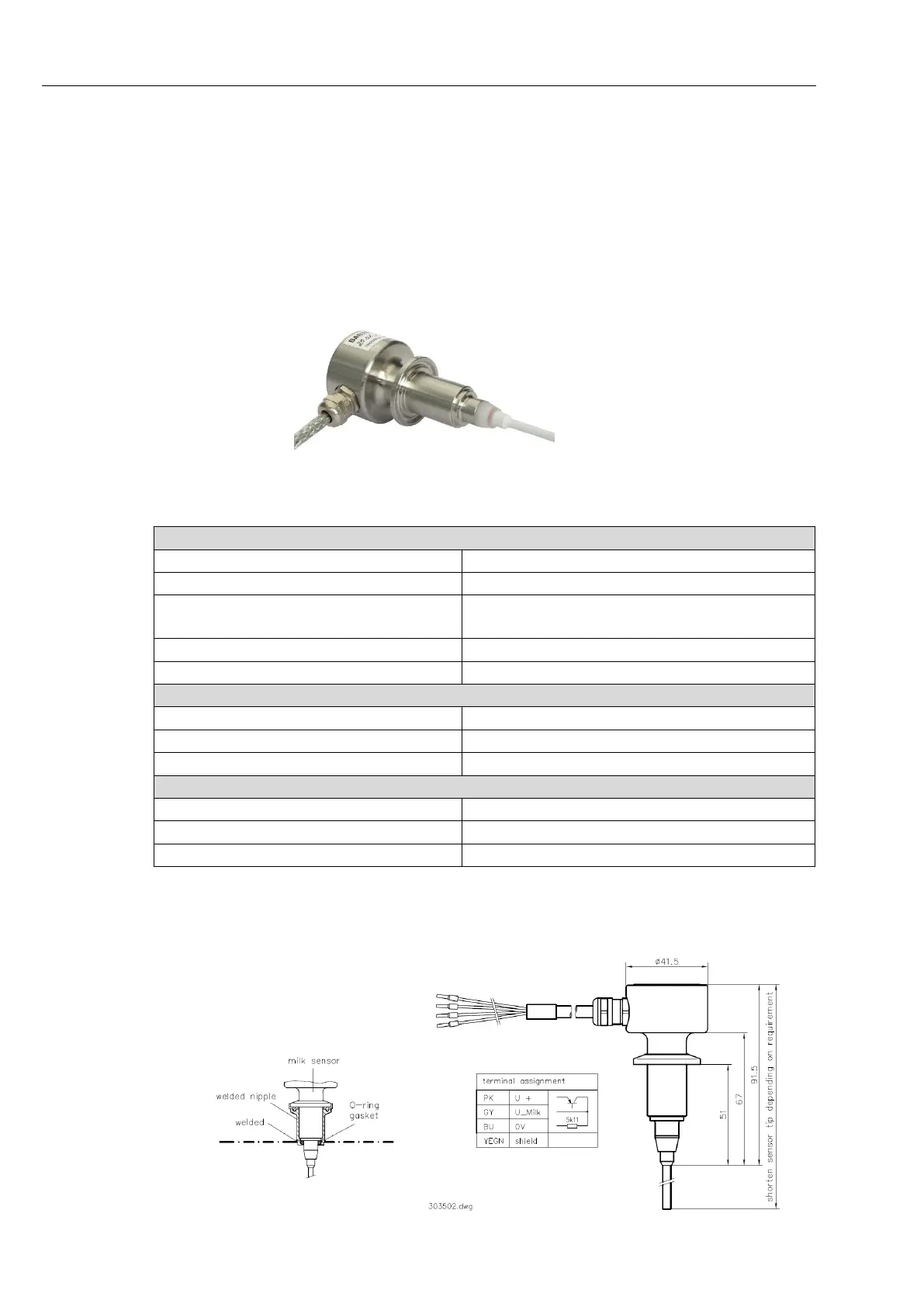

Milk sensor, series A type 6703-17
84
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
8 Milk sensor, series A type
6703-17
Order no.: 303502
The milk sensor type 6703-17 is used in conductive liquids to measure the
level. The wall of the tank or pipe is used to counter the charge. The electrode
rod can be shortened to any length.
8.1 Technical data
Electrical Data
Operating voltage
DC 24 V (+ 10 … - 20 %), 50 mA
Connection
Cable 5 m (conductor and sleeves)
Output milk sensor
Plus-switching (DC +24 V)
Switching current  20 mA
Threshold level of milk sensor
Approx. 500 
AC voltage of milk sensor
12 V AC, approx.1.5 kHz
Ambient conditions
Operating temperature/sensor element
- 20 … + 60 °C/briefly up to + 80 °C
Storage temperature
- 30 … + 70 °C
Protection type
IP 65
Mechanical Data
Weight
0,5 kg
Casing
V
2A
1.4301
Assembly
Clamp DN 20
8.2 Dimensions
