Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
4 Compact Controller TIGER
Type 6942-10 Serie C
Order no.: 386570
4.1 Technical data
Device specific data
Nominal operating temperature
23 ± 2°C
Elektrical data
Operating voltage
DC 24 V (9 - 36V) Bordnetz (load dump firm, stabilised)
CPU
Processor
PowerPC
TM
MPC8270 (266MHz)
Hard coded memory
FLASH: 256 MB FLASH (programm memory)
SDRAM: 128 MB SDRAM (random accsess memory)
SRAM: 4 MB (battery backed, power failure proof data memory)
Exchangeable data memory
Compact Flash: all sizes
Real time clock
Battery backed

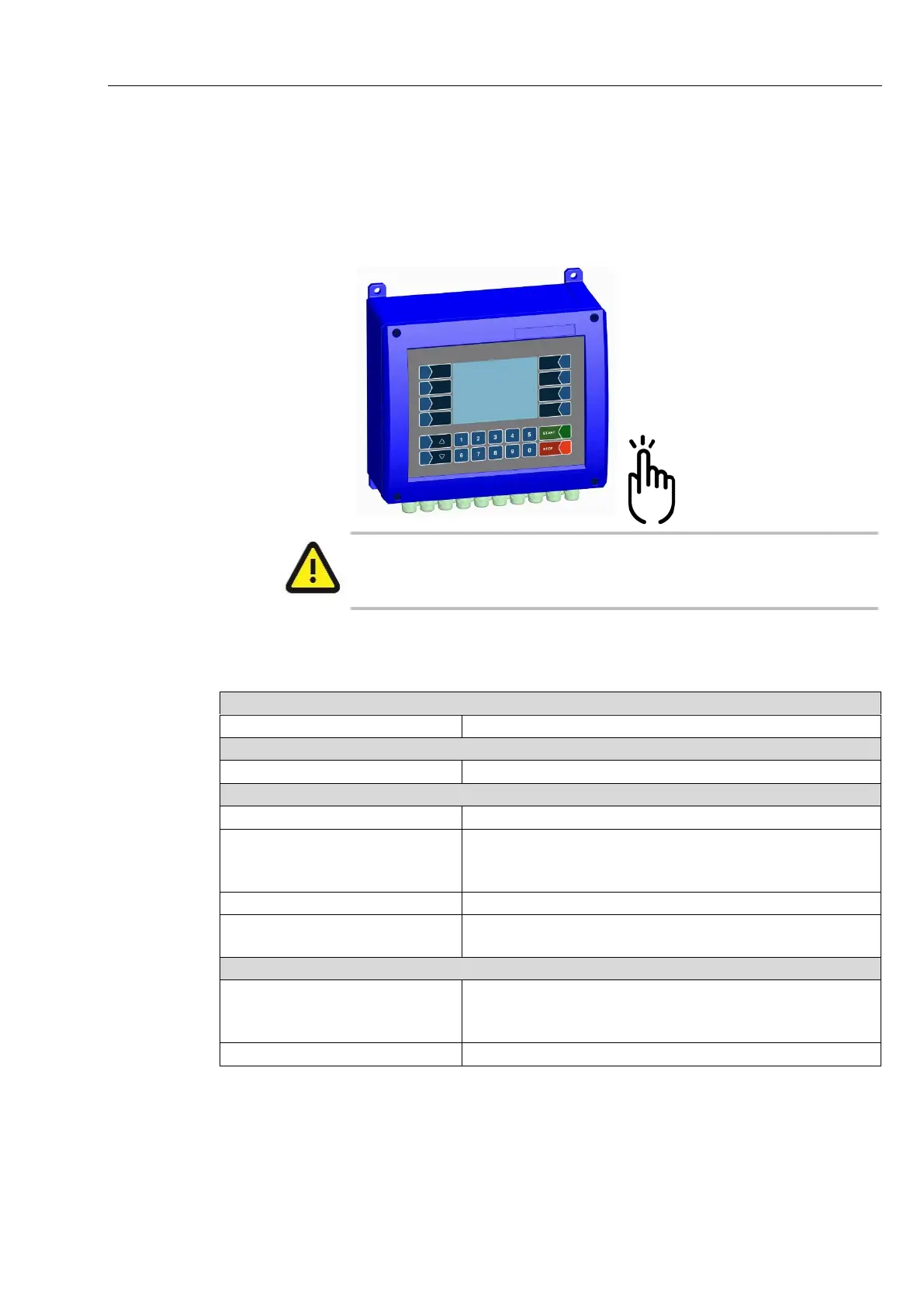

Display / Keyboard
Display
LC-graphic display, 120 x 89 mm, monochrome, transflective
Resolution 320x240 pixel
adjustable LED background lighting
Keyboard
Resistive touch
Attention:
"Fingers only" control
