Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
4.3.2 Motherboard with CAN-Bus
Standard blade-type motor vehicle fuses are fitted here with the following
ratings:
Fuse no.
Rating
Voltage
Circuit/comments
SI 4
20 A
24V_S
Backup fuse for selective circuits SI16, SI12, SI13, SI14, SI15, SI23,
SI5
SI 5
1 A
24V_0
4-20mA inputs; voltage inputs; pressure sensors; bubble sensors;
dipstick
SI 12
5 A
+UB_1-4
Supply outputs 1-4; terminals 14-21
SI 13
5 A
+UB_5-8
Supply outputs 5-8; terminals 22-29
SI 14
5 A
+UB_9-12
Supply outputs 9-12; terminals 76-83
SI 15
5 A
+UB_13-16
Supply outputs 13-16; terminals 84-91
SI 16
3 A
24V_COM
RS 485, GPS, printer, P-Net, RS 232, CAN-Bus
SI 18
1 A
24V_GPRS
Supply for GPRS modem
SI 23
3 A
PWM out
Control of rotary pump, terminals 92-93
LED displays
Status
LED 4
5.5 supply for CPU, motherboard, electronic measuring equipment
Lights up
LED 13
Supply voltage 24 V_O/12 V_I analogue inputs
Lights up
LED 16
µ Controller power supply "busy"
Flashes
LED 17
USB communication, digital IN, analogue IO
Flashes
LED 20
µ Controller k_mif "busy" (PT100, 4-20 mA, U_IN,…)
Lights up
LED 30
µ Controller pulse counter "busy"
Lights up
LED 81
USB hub for GPRS, P-Net, CAN, display
Lights up
LED 82
USB communication, P-Net, digital outputs
Flashes
LED 83
µ Controller k_pio "busy" (P-Net, digital outputs)
Flashes
LED 96
USB-Communication CAN
Flashes

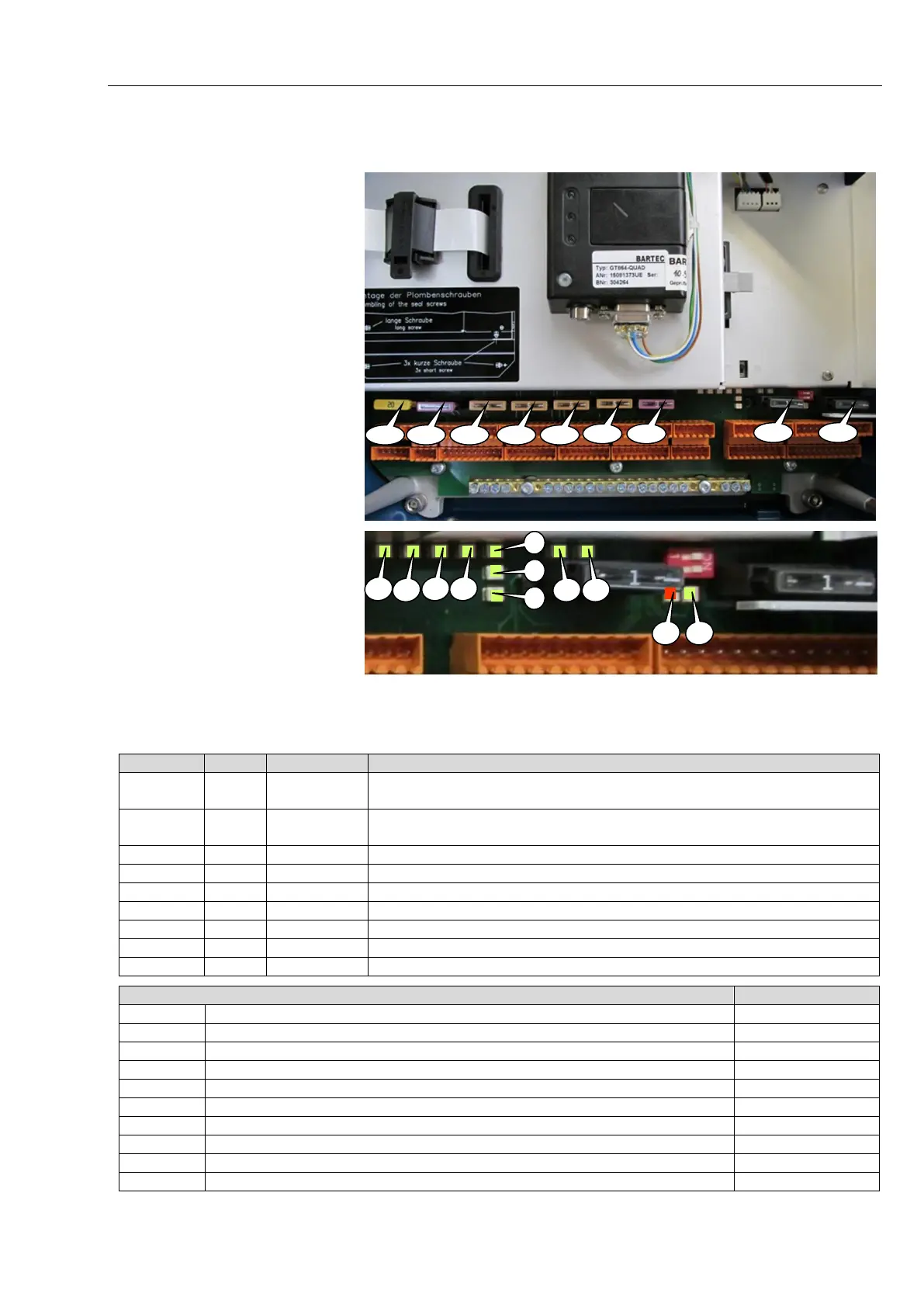

SI 4
SI 16
SI 12
SI 14
SI 13
SI 15
SI 23
SI 18
SI 5
96
81
20
83
99
16
4
82
17
30
13
