Barcode reading unit type 6723-10
116
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020

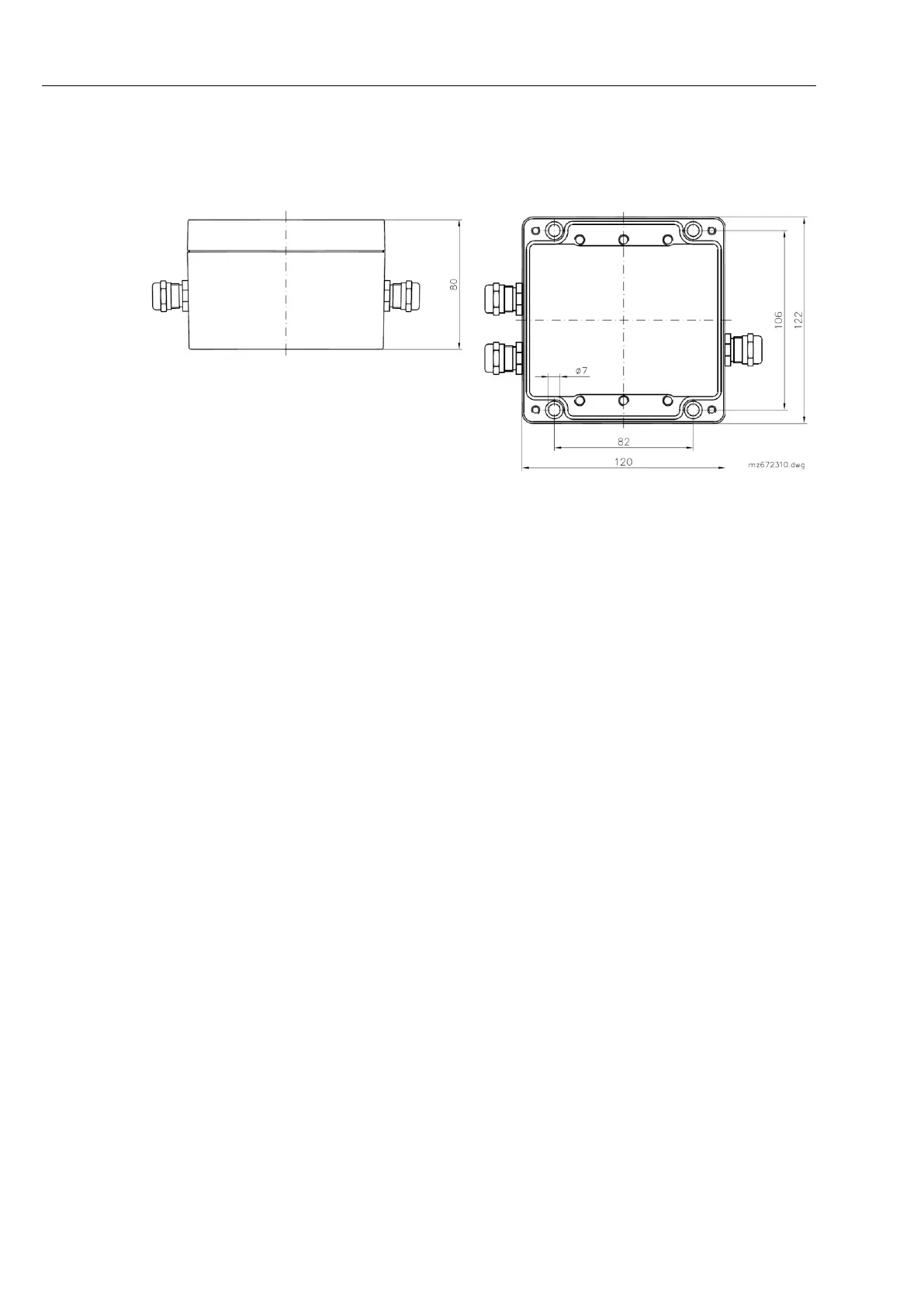

19.2 Dimensions
19.3 Installation
Installation location:
Position at a suitable location not subject to major vibrations near the bar code
reader, taking due account of the length of its cable.
It must be possible to attach the connection leads in the bar code reader unit
when installed.
Installation:
Affix lower section of housing with 4 x M6 mounting bolts. See section on di-
mensions for hole spacing and bolt length.
To install, undo the four bolts in the top housing section and remove the top
housing section.
