Bartec MAK TIGER 3003 Service Manual

Milk sensor, series B type 6703-16
86
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020

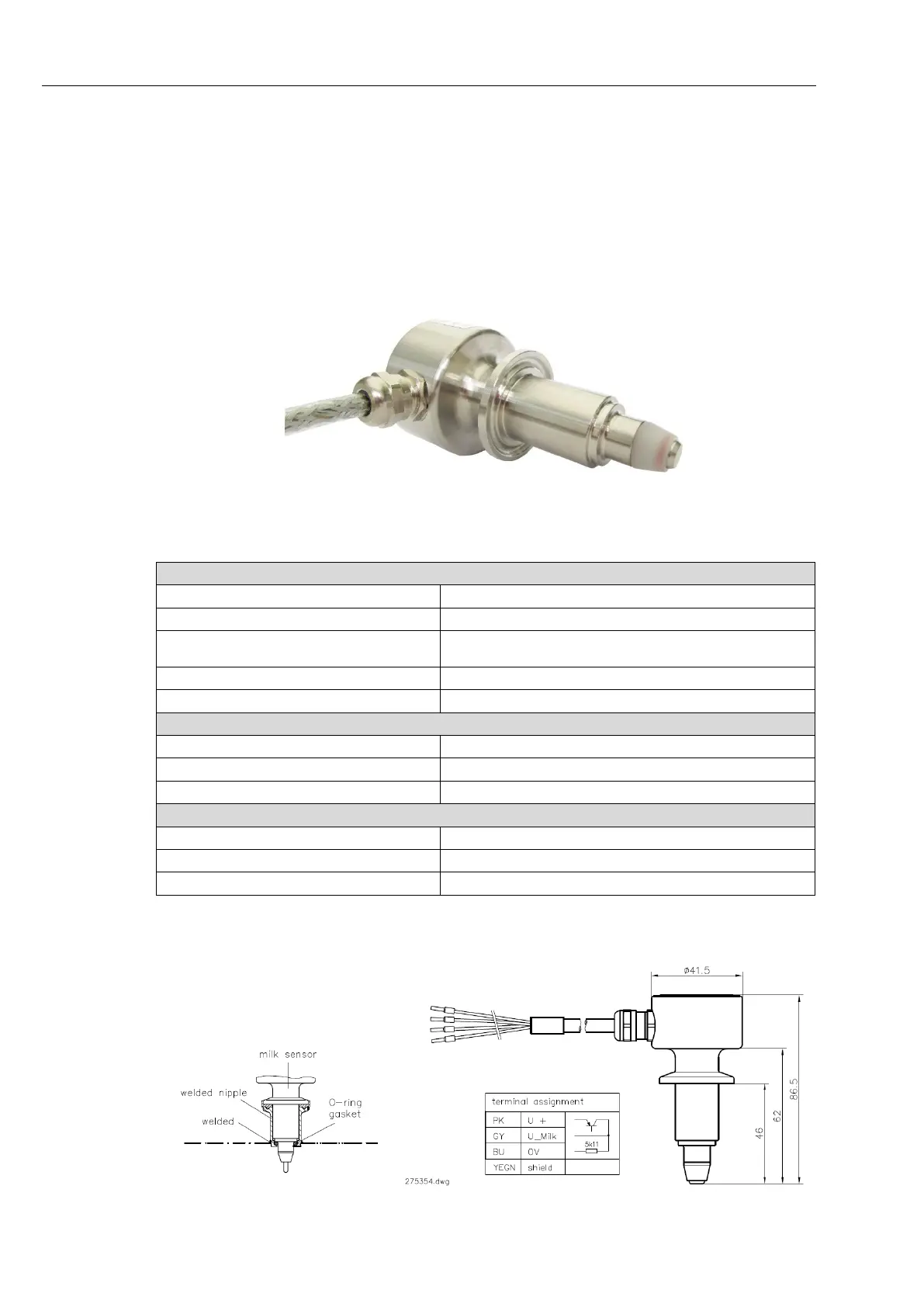

9 Milk sensor, series B type
6703-16
Order no.: 275354
The milk sensor type 6703-16 signals when milk is in the pipe via a positive
output.
9.1 Technical data
Electrical data
Auxiliary power
DC 24 V (+ 10 ... - 20 %), 50 mA
Connection type
5 m cable (wire end ferrule)
Milk sensor output
Positive (DC + 24 V)
Switching current ≤ 20 mA
Milk sensor switching threshold
Approx. 500 Ω
Milk sensor alternating voltage
12 V AC, approx. 1.5 kHz
Ambient conditions
Operating temperature/sensor element
- 20 ... + 60 °C / briefly up to + 80 °C
Storage temperature
- 30 ... + 70 °C
Protection class
IP 65 (grouting)
Mechanical data
Weight
0.5 kg
Housing specification
V
2A
1.4301
Fitting
Clamp DN 20
9.2 Dimensions
