Bartec MAK TIGER 3003 - Electronic Push Switch with Display

Measuring system MAK E-TIGER 3003
81
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020

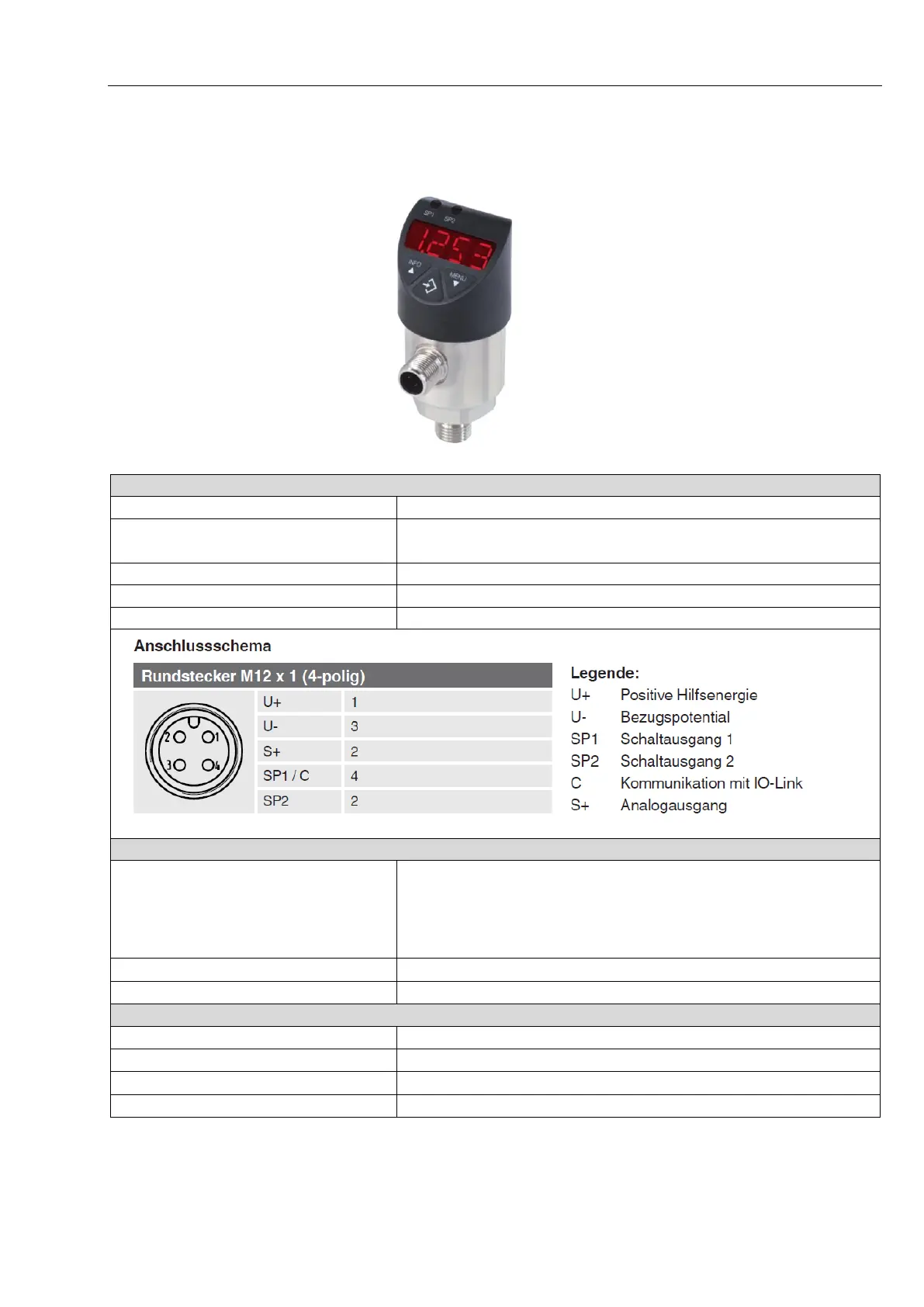

6.13.7 Electronic push switch with display
Electrical data
Auxiliary power
15-35 V DC
Output signal
two switching outputs (PNP)
Max. switching current without IO link 250 mA
Measuring range
Absolute pressure 0-16 bar
Process connection
Internal thread 1/4 inch
Electrical connection
Round plug connector M12x1, 4 pole
Ambient conditions
Permissible temperature ranges
Process medium
Environment:
Storage:
-20 to +85°C
-20 to +80°C
-20 to +70°C
Humidity
45-75% r.h.
Protection type
IP67
Accessories
Name
Order number
Angle bracket
426537
Sensor connection line M12
362582
Push-in screw fitting ¼ inch 6 mm
282322
