6.13 Components
6.13.1 Control cabinet

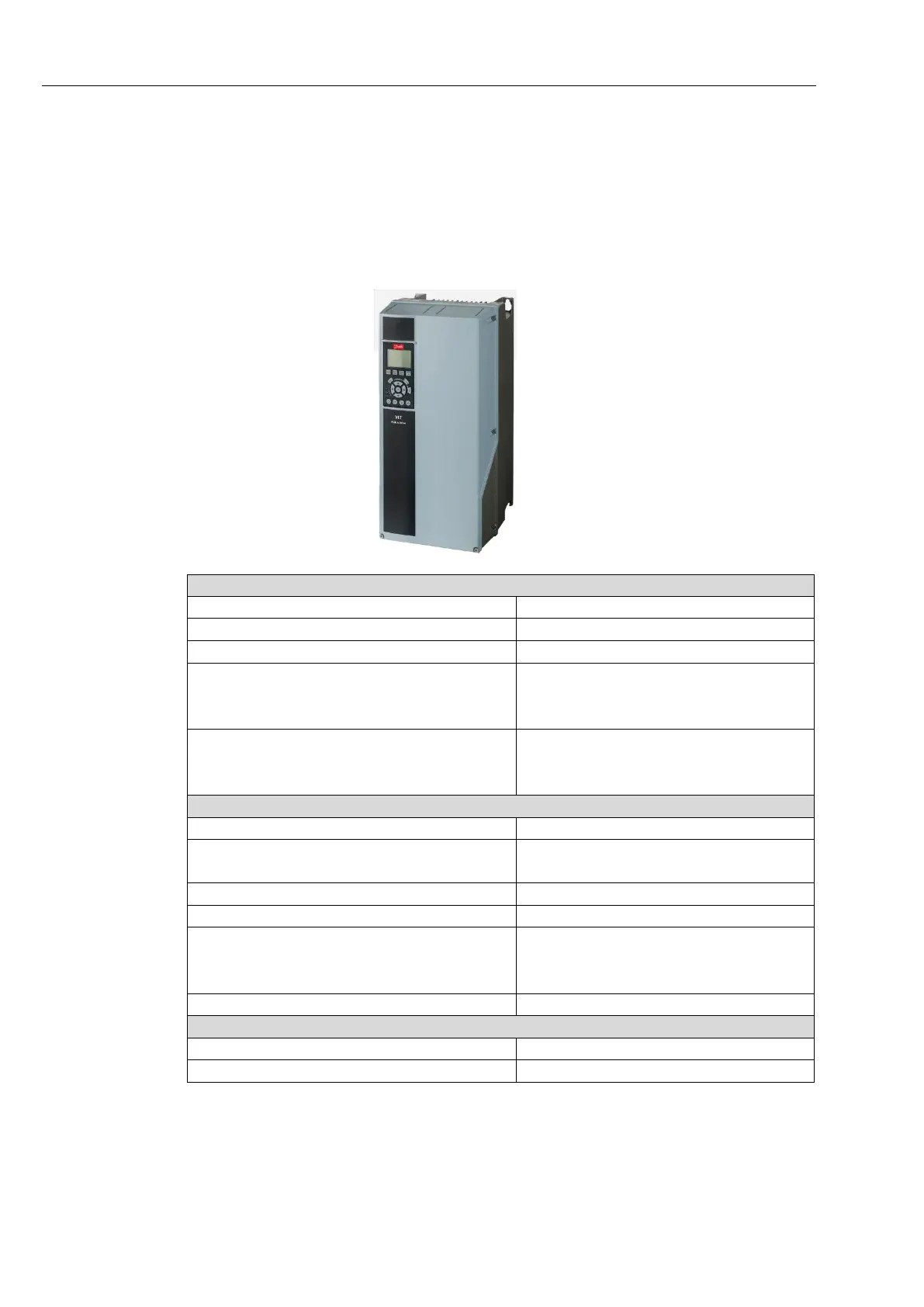

6.13.1.1 Frequency converter
Electrical data
Supply voltage
380-480 V ±10 %
Mains frequency
50/60 Hz +4/-6 %
Typical shaft power
7.5 kW
Max. input current
Continuous operation (1 x 380-440 V)
Overload (1 x 380-440 V)
14.4 A
15.8 A
Output current
Continuous operation (3 x 380-440 V)
Overload (3 x 380-440 V)
16 A
17.6 A
Ambient conditions
Min. ambient temperature under full load
0°C
Min. ambient temperature under
reduced power
-10°C
Max. ambient temperature
50°C
Temperature during storage/ transport
-25 to +65/70°C
Max. height above sea level
Without reduction in output
With reduction in output
1000 m
3000 m
Protection class
IP55
Mechanical data
Dimensions H x W x D
420 x 242 x 200 mm
Max. weight
14 kg
