Bartec MAK TIGER 3003 - Page 134

I/O-Box type 6753-xx
126
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
Output relay modules:

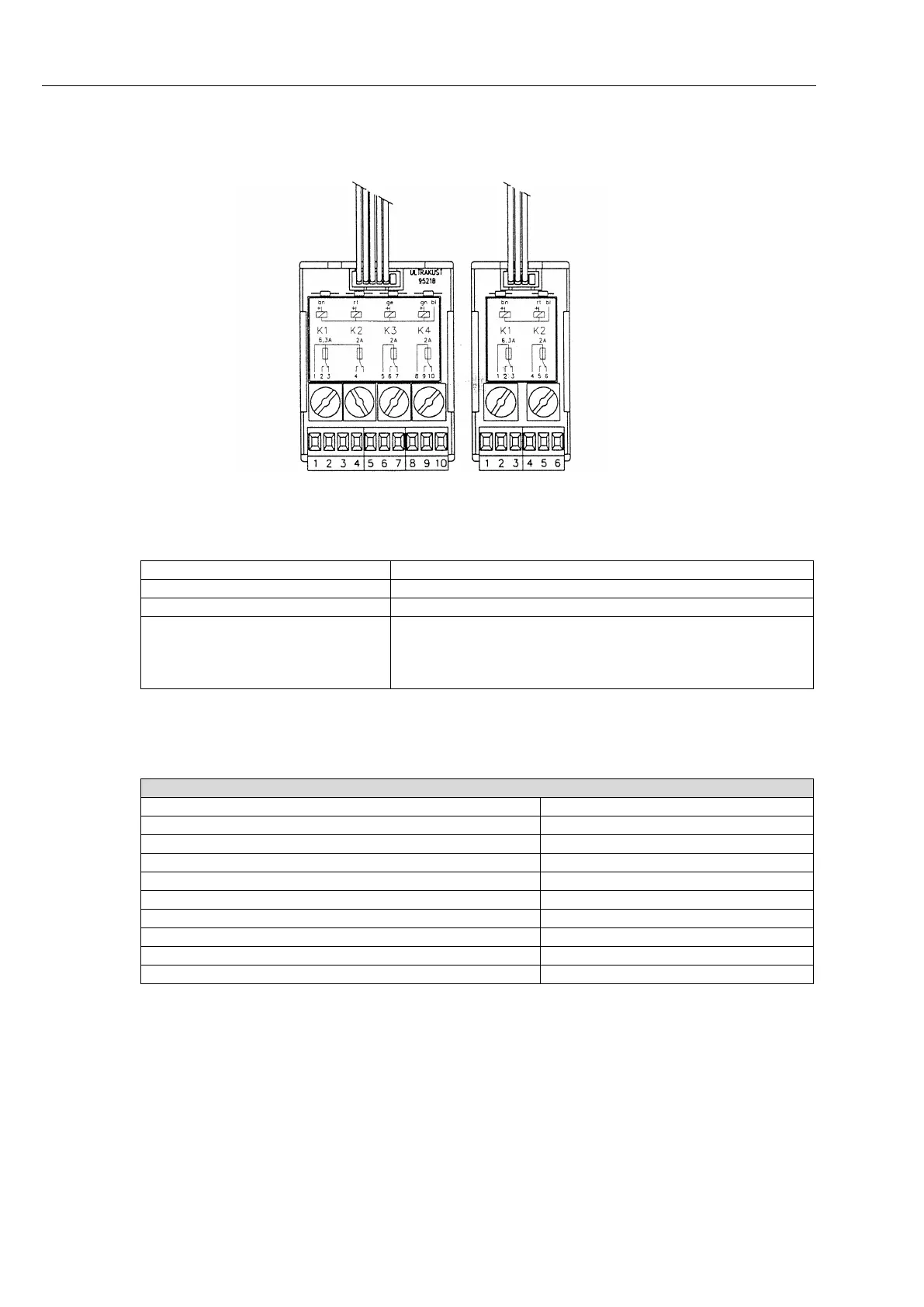

Output relay module: Type 6753-106 Type 6753-107
Electrical connection:
bl → 0 V on-board power supply; bn, rd, yl, gn → output
Connection leads:
30 cm
Max. switching voltage (relay):
AC/DC 50 V
Dimensions (W x H x D)
Weight/format
6753-106:
6753-107:
55 x 74 x 65 mm / 1.5 N ≈ 150 g / 1 x 6.3 A / 1 x 2.0 A
35 x 74 x 65 mm / 0.75 N ≈ 75 g / 1 x 6.3 A / 1 x 2.0 A
Order details
Accessories/replacements
I/O basic module, 8DI/8D0, type 6753-110
276817
Input extension module, 8DI, type 6753-111
276819
Output extension module, 8D0/2, 2.0 A, type 6753-112
276818
Output relay module 1 x 6.3 A/3 x 2.0 A, type 6753-106
U899176753106
Output relay module 1 x 6.1 A/1 x 2.0 A, type 6753-107
U899176753107
Pillar terminal block 3-pole
216968
Pillar terminal block 4-pole
216432
Pillar terminal block 5-pole
222010
Pillar terminal block 6-pole
275016
Pillar terminal block 10-pole
275017
