ULTRASAMPLER® sample collection system
156
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020

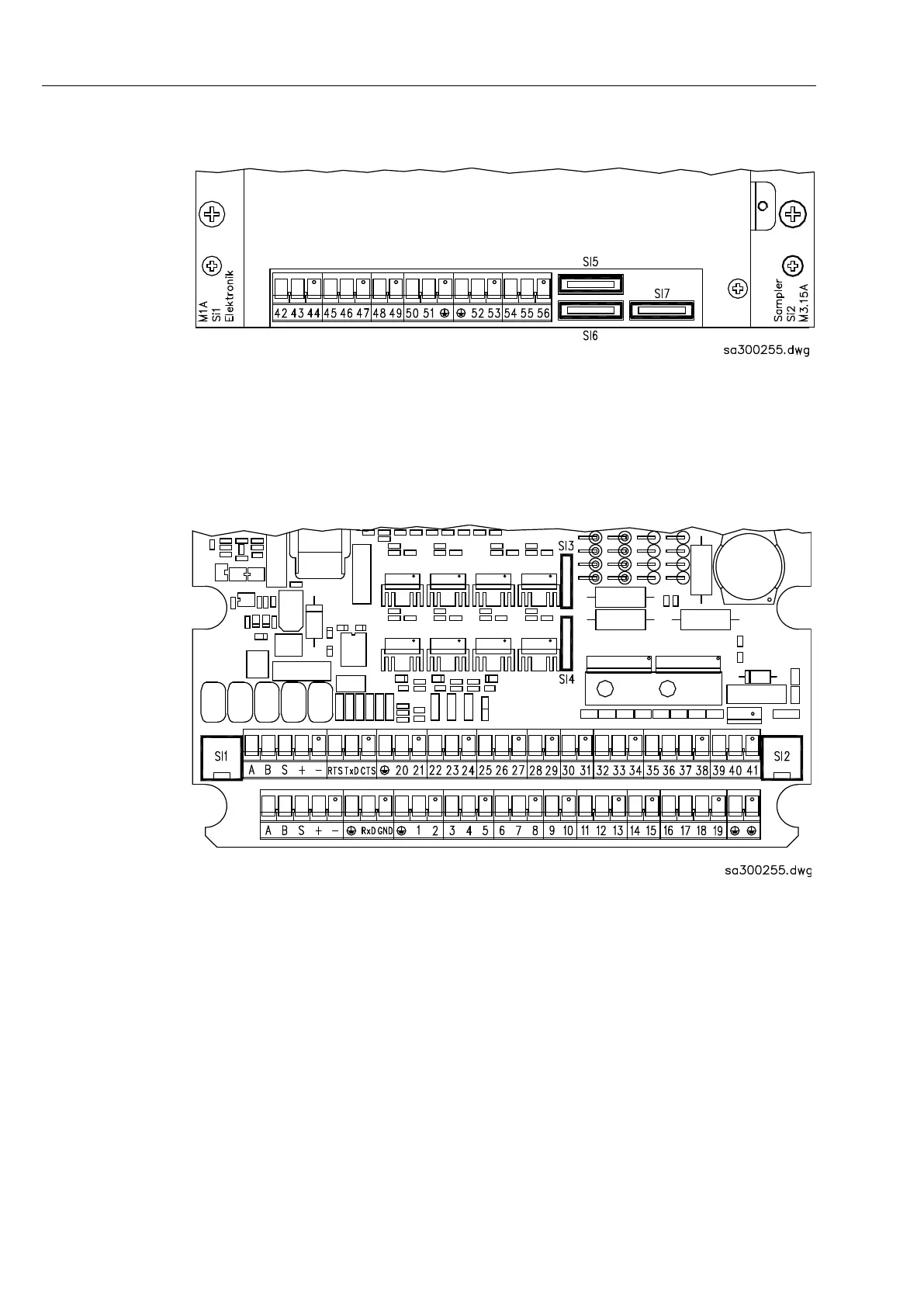

Position of fuses on relay circuit board/converter board
Fuse Si5 = 1.0 A
Fuse Si6 = 10 A
Fuse Si7 = 3 A
Position of fuses on sampler circuit board
Position of fuses
Fusible cut-out Si1 (1 AM) and fusible cut-out Si2 (3.15 AM) can be ac-
cessed by opening the respective fuse holder.
Si3 and Si4 are reversible fuses which are ready for use again after a short
cooling time after a case of overload has been remedied (do not need re-
placing!).
