ULTRASAMPLER® sample collection system
187
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
Connecting pump hose to intake cannula
Additional fixation of branch pipe
Additional holders need to be fitted on the ends of the branch pipe and con-
nected to the cover of the sample collection box.
These holders should be easy to take off again when the branch pipe is
removed.

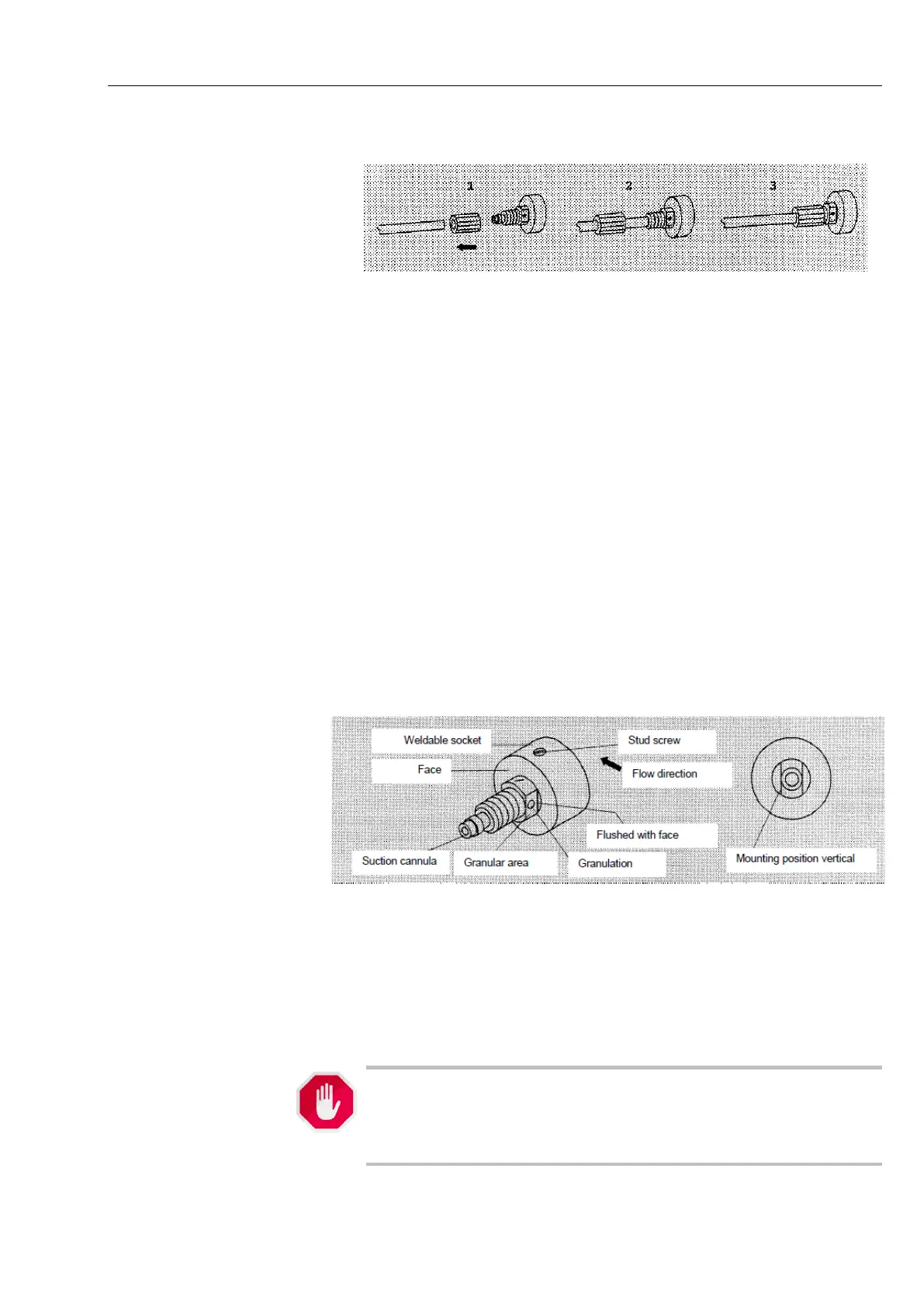

Check the fitting of the intake cannula in the welded socket with refer-
ence to the following points:
Rough area pointing against the direction of milk flow (rough area and
opening of intake cannula pointing in the same direction).
The roughened surface is upright.
The roughened surface is flush with the end face of the welded socket.
Intake cannula in welded socket
Deinstallation of sampler type 6871-3/4/5
As with their installation, the sampler and branch pipe can be removed to-
gether as one unit or one after the other.
It is possible and quite straightforward to replace the sampler without re-
moving the branch pipe from the milk pipeline.
