ULTRASAMPLER® sample collection system
190
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
Fitting the manual sample bottle lifter
Type 6871-3-30
The manual sample bottle lifter, type 6871-3-30, is screwed onto the holder
of the sampler, type 6871-3/4/5, which is on the pump side.
The connection is made with two M8 x 15 pan head screws and lock wash-
ers.
The sampler can be fitted alone or connected to the branch pipe.
The sampler and branch pipe can be fitted in the sample collection box or
left unfitted.
Assembly with proximity switch:
Screw proximity switch into manual sample bottle lifter as far as it will go
and fit locknut.

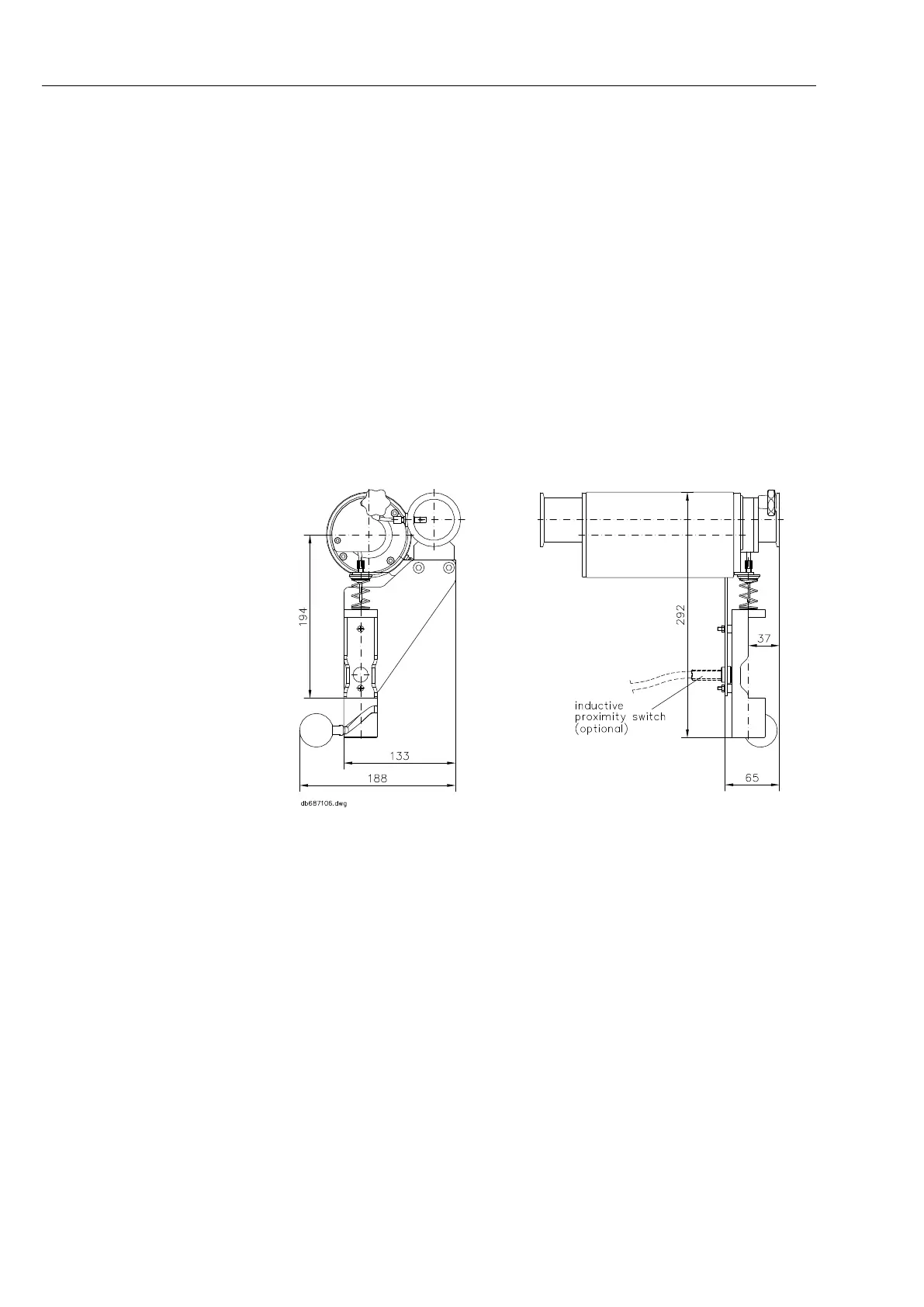

Dimensions of manual sample bottle lifter
