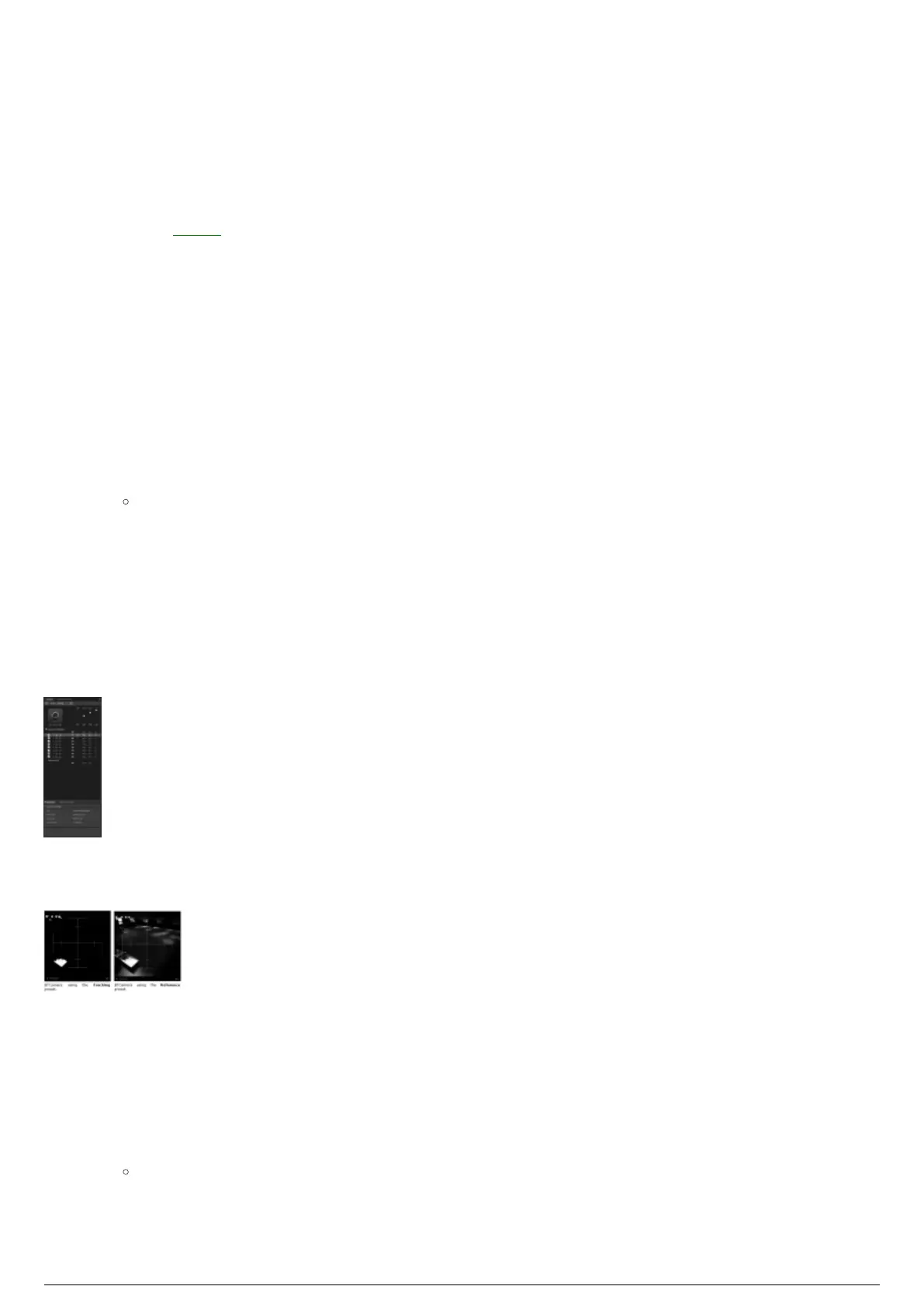

Using Motive to Aim BTSensors
For tracking to occur, BTSensors must be positioned around the perimeter of the tracking area and aimed
towards the area. Tracking occurs in an area when 2 or more BTSensors view the same area at the same
time. A video feed of what BTSensors see is shown in Motive. By viewing the BTSensor’s video feed in the
visible spectrum, BTSensor positioning can be evaluated.
Attention: The Space origin must be visible to at least 2 BTSensors for sensor calibration to function
correctly.
Note: To quickly see a BTSensor’s video feed in the visible spectrum, change the preset setting of the
BTSensor to Reference. See To select a preset setting for a BTSensor for more information.
Motive 2
To view a BTSensor’s video feed in the visible spectrum
In Motive, click the drop-down box at the right-hand side of the main toolbar and click Aiming from1.
the drop-down menu of layout presets.
Result: Motive opens the preset windows for the aiming of BTSensors.
In the Devices window, click the group name to select a single BTSensor, or select all BTSensors in2.
the group.
With the BTSensor(s) selected, look below to the Properties section of the Devices window.3.
On the Camera Settings section, set the Filter Switch field to Visible Spectrum.4.
On the Camera Settings section, set the Video Type field to MJPEG Mode and select the range of5.
MJPEG Quality from the drop-down menu. The range of MJPEG Quality is between 1 (minimum) and
up to 4 (maximum).
Result: The video displayed from the BTSensors will appear as a grayscale image in the visible
spectrum.
Motive 1.10 or lower
To view a BTSensor’s video feed in the visible sprectrum
In Motive, click on the box at the right hand side of the main toolbar and click Aiming from the1.
drop-down menu of layout presets.
Result: Motive opens the preset windows for the aiming of BTSensors.
In the Cameras window. click the group name to select a single BTSensor, or select all BTSensors in2.
the group.
With the BTSensor(s) selected, go to the Properties section of the Cameras window.3.
