eSync Controller

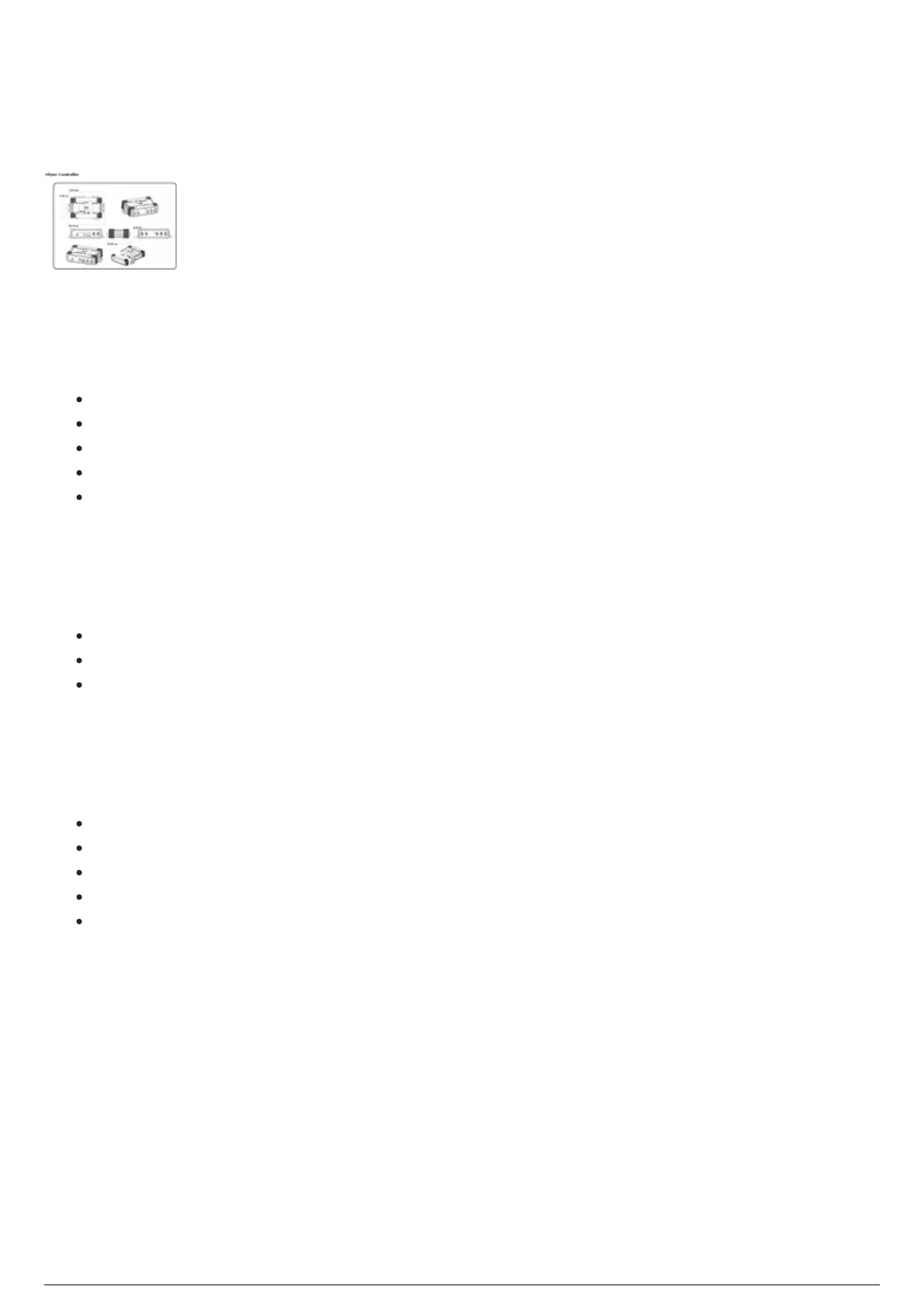

eSync Controller Diagram
Physical Characteristics
Width: 13.89 cm (5.47”)
Height: 4.09 cm (1.61”)
Depth: 9.25 cm (3.64”)
Weight: 368.54 g (13 oz)
Operating temperature: 0°C to +40°C (32°F to 104°F)
Input/Output & Power
PoE: IEEE 802.3af-2003
Adapter: 12V DC and 3 Amps
Data: Ethernet
Status LEDs
Per port activity status
Master time
External lock
Ethernet link status
Ethernet activity
eSync Controller Functions
The eSync Controller synchronizes BTSensors so that the shutters of BTSensors open and close
simultaneously and in synchronization with the pulsing of LED Stringers attached to BTBeacons.
eSync Controller Connection to the TimeKeeper
The eSync Controller connects to the TimeKeeper over RCA cable. The RCA cable is plugged into the RCA
port of the eSync Controller.
