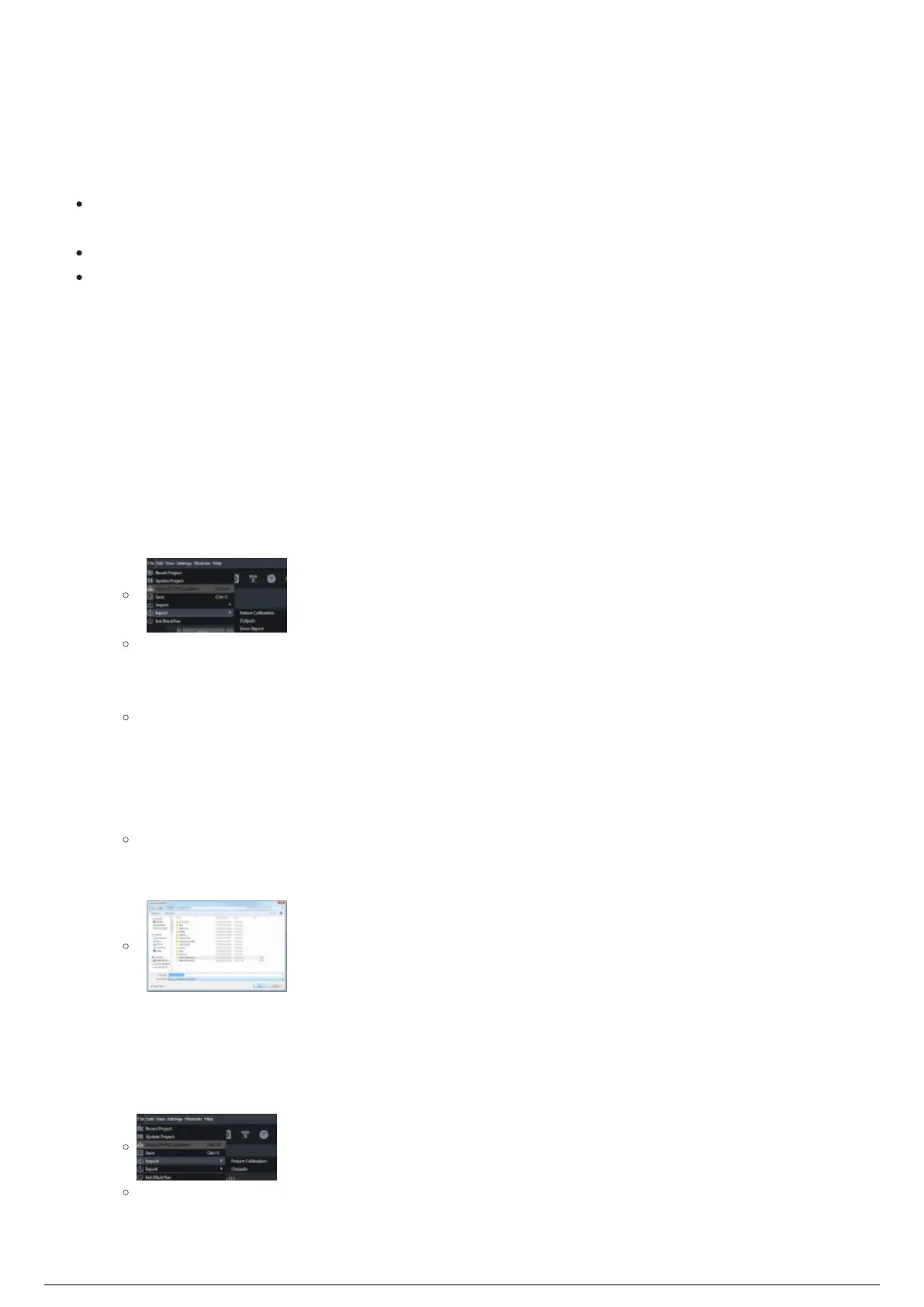

Managing Calibration Data
Fixture calibration data can be saved as a calibration file separate from the BlackTrax project. Calibration
can be saved as a BlackTrax Calibration file (.btcal) which can be read by BlackTrax, or as an XML file for
third-party use. Calibration profiles saved as .btcal files can be loaded and edited as needed in a project.
Fixture calibration data from any preset can be exported or imported into any preset you are
currently in.
The calibration data that was imported becomes part of the preset you are currently in.
The calibration data that was imported remains part of any other presets where data has been
exported from or into already.
Attention: BlackTrax cannot use XML calibration files to further calibrate fixtures. Fixture calibration
saved to this format is only for third party use.
To export calibration data
Created calibration data can be saved separately from the BlackTrax project as a BlackTrax calibration
file (.btcal).
In Fixture Calibration View, ensure that you are currently in the preset that you want to export1.
from.
From the File menu, choose Export and then choose Fixture Calibration. 2.
Export Calibration Menu
Result: The Export Calibration browse window appears.
In the Export Calibration window, select which calibration file type will be used from the drop-down3.
menu.
Note: To export specific fixtures from a preset, select the desired fixtures before exporting
your calibration data.
Navigate to the location where you want to save the calibration file.4.
In the File Name field, type the name of the calibration session.5.
Click Save.6.
Result: Information on all fixtures (calibrated or not) are saved to the calibration file. The
information will be accurate so long as the calibrated fixtures are not moved or bumped. This
is provided the Motive calibration is the same (relative to the origin).
Export Calibration Data
To import calibration data
In Fixture Calibration View, ensure that you are currently in the preset that you want to import to.1.
In the Fixtures widget, select the fixtures which have calibration data you want to import.2.
From the File menu, choose Import and then choose Fixture Calibration. 3.
Import Calibration Menu
Result: The Browse window appears.
In the Browse window, browse to the location where the calibration file (.btcal) is located.4.
Select the .btcal file.5.
