eSync 2 Controller

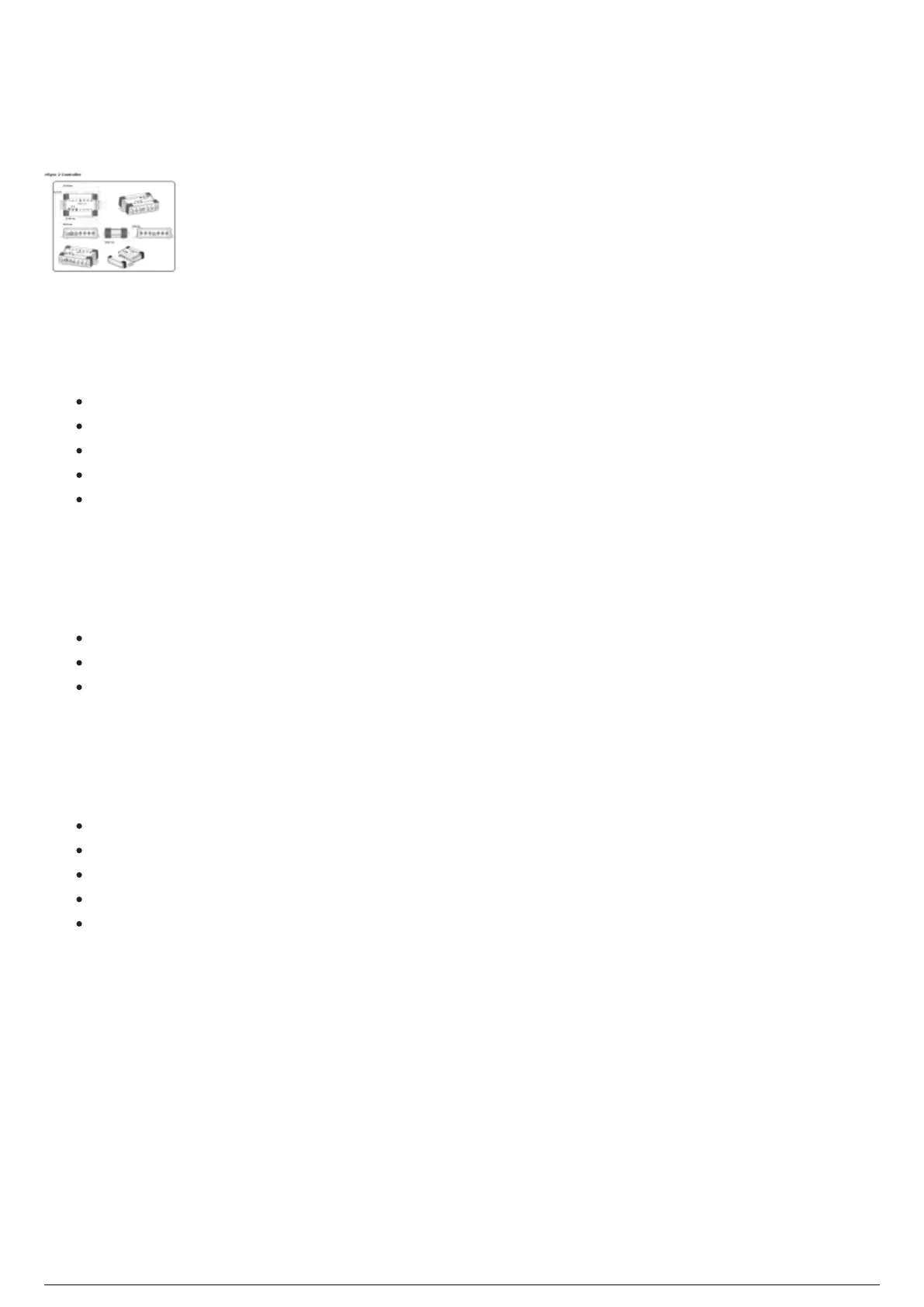

eSync 2 Controller Diagram
Physical Characteristics
Width: 13.89 cm (5.47”)
Height: 4.09 cm (1.61”)
Depth: 9.25 cm (3.64”)
Weight: 368.54 g (13 oz)
Operating temperature: 0°C to +40°C (32°F to 104°F)
Input/Output & Power
PoE: IEEE 802.3af-2003
Adapter: 12V @ 0.6A power supply
Data: Ethernet
Status LEDs
Per port activity status
Master time
External lock
Ethernet link status
Ethernet activity
eSync 2 Controller Functions
The eSync 2 Controller synchronizes BTSensors so that the shutters of BTSensors open and close
simultaneously and in synchronization with the pulsing of LED Stringers attached to BTBeacons.
eSync 2 Controller Connection to the TimeKeeper
The eSync 2 Controller connects to the TimeKeeper over RCA cable. A BNC/RCA adapter is used to plug
the RCA into input 3 of the eSync 2 Controller.
