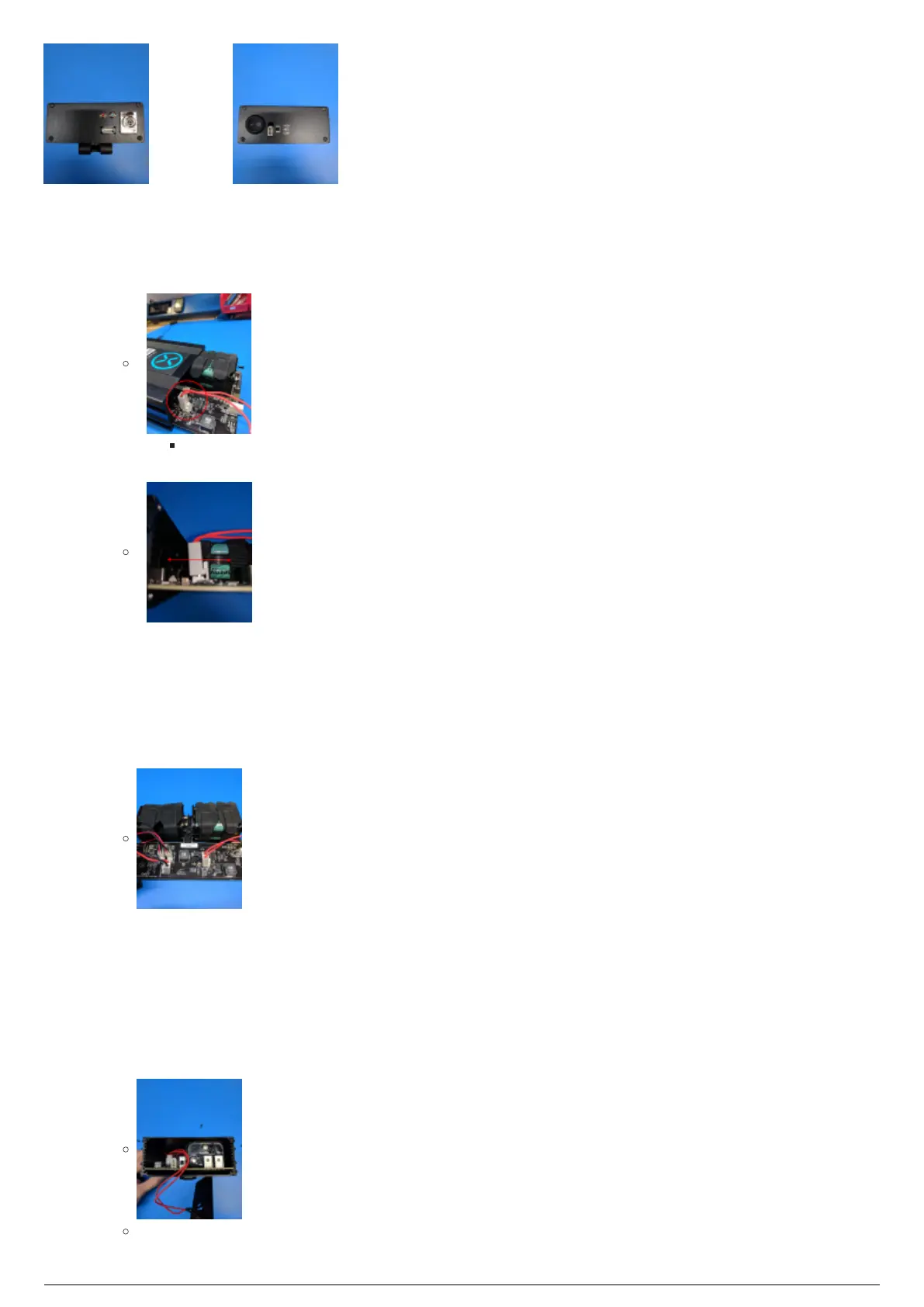

Side A Side B
Remove the 4 screws from Side A using the 1/16 hex bit.1.
Once the screws are removed, pull the panel away to reveal the interior of the HPSU.2.
Remove the board half way to expose the attachment for the power switch.3.
Carefully remove the power switch pin. Pull the pin straight upwards. 4.
Attention: AVOID MOVING THE PIN IN THE DIRECTION SHOWN IN THE PICTURE WITH
ARROWS (below).
Once the pin is removed, push the board back into the HPSU.5.
Turn the HPSU to Side B and remove the screws.6.
Remove the HPSU all the way to expose the second battery pack.7.
Add the batteries.8.
Tighten the straps. 9.
Reattach the power switch on Side A. Carefully pushing down the pin until it is locked in place.10.
Push the board back into the case, making sure not to pinch any wires on Side B.11.
Close Side A.12.
To change the pre installed HPSU batteries
Remove the 4 screws from Side A using the 1/16 hex bit.1.
Once the screws are removed, pull the panel away to reveal the interior of the HPSU. 2.
Note: HPSU board slides into the bottom slot of the interior.
