10-12îš¡ Calibrating the Cutter
1 sets a positive change of .001 inch (.0025 mm)
-1 sets a negative change of .001 inch (.0025 mm)
2 sets a positive change of .002 inch (.005 mm)
-2 sets a negative change of .002 inches (.005 mm)
Where the change occurs depends upon the field you set:
In the Horizontal(x) field:
• Positive values adjust the cutter toward the machine.
• Negative values adjust the cutter toward the leading edge of the tape.
In the Vertical(y) field:
• Positive values adjust the cutter toward the bottom edge of the tape.
• Negative values adjust the cutter toward the top edge of the tape.
Figure 10-6 may help show how your calibrations affect your labels. The
intersection of the x,y axes represents the center point of your label:

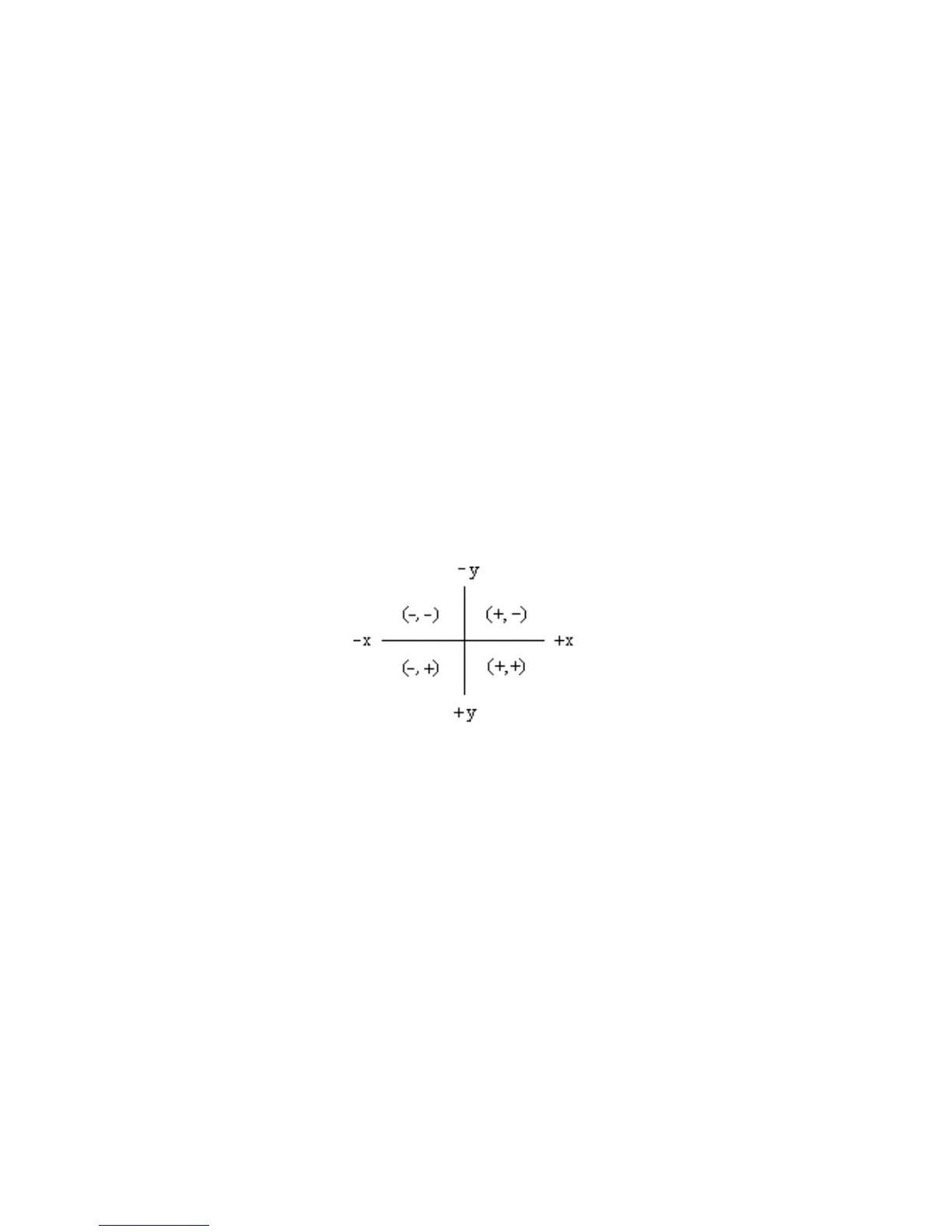

Figure 10-6. Cutter calibration axes
Leading edge
Top edge
Machine
Bottom edge
