Technical / Programming Manual
FT128 Rev 2.2
144

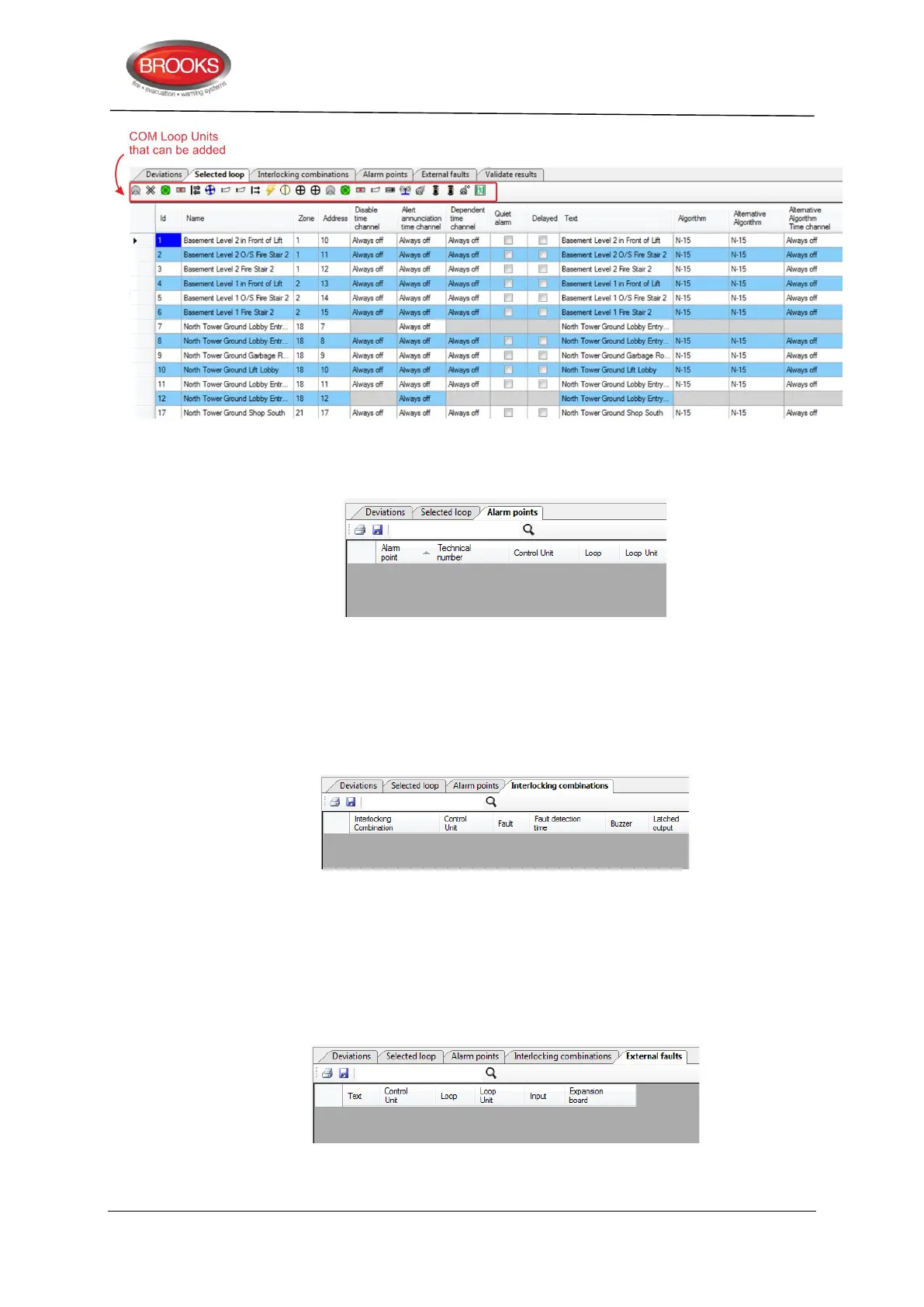

Figure 46 Selected Loop Tab
19.2.5 Alarm points
This is a list, for the whole system, showing all alarm points and their properties.
The list can be sorted by clicking the column header respectively.
Double click an alarm point row to open its dialog box.
You can print and save what you see in the list. A filter function is available.
19.2.6 Interlocking combinations
This is a list, for the whole system, showing all interlocking combinations and their
properties.
The list can be sorted by clicking the column header respectively.
Double click an interlocking combination row to open its dialog box.
You can print and save what you see in the list. A filter function is available.
19.2.7 External faults
This is a list, for the whole system, showing all external faults and their properties.
The list can be sorted by clicking the column header respectively.
