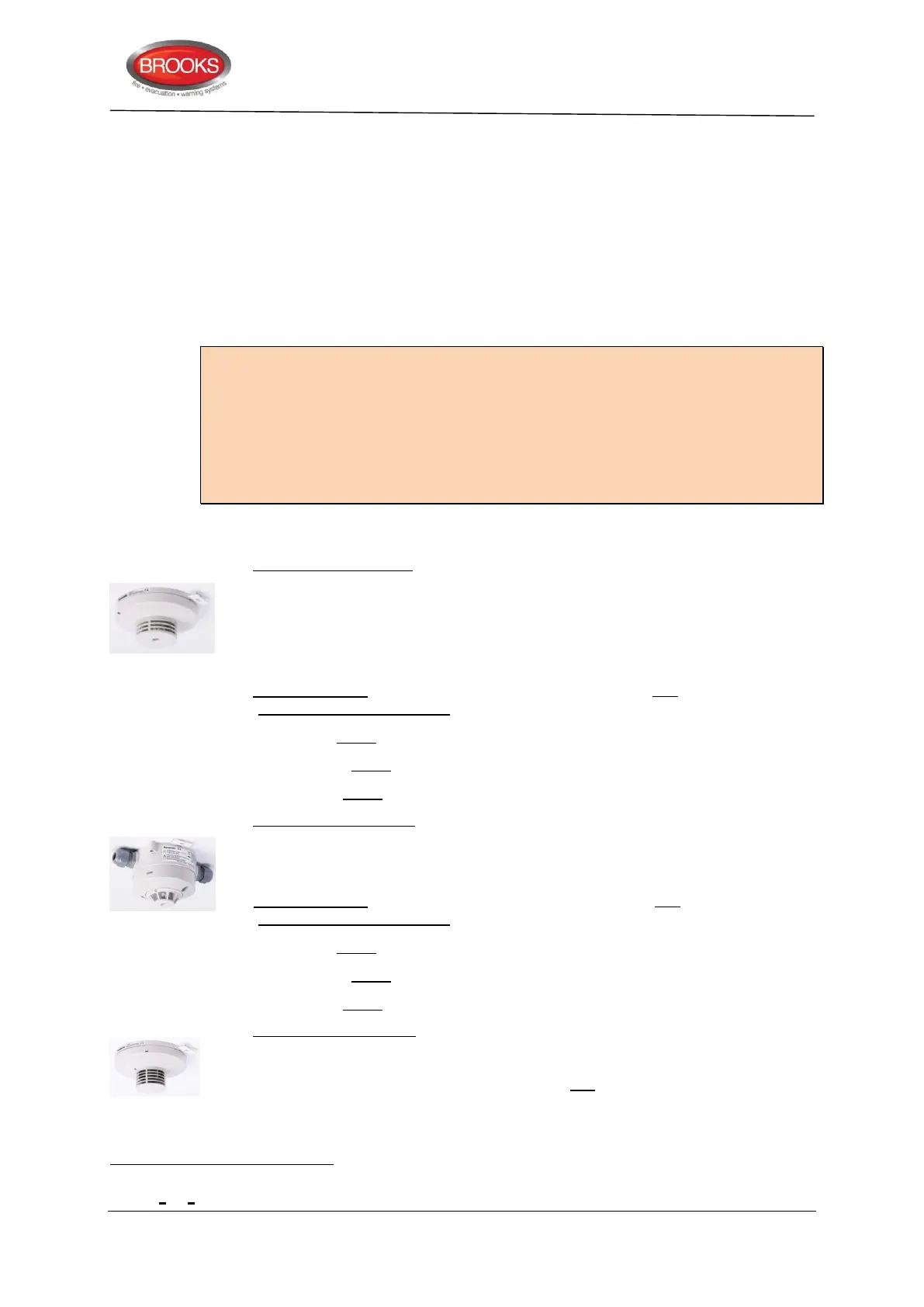

Technical / Programming Manual
FT128 Rev 2.2
53
In EBLWin, select 4433/4439 from add loop unit and add to the COM Loop.
Addressing & programming 4433/4439 without SCI
1. Connect the address setting tool to the MCP terminals SA and SB (without loop
connection).
2. Turn on the address setting tool then hold down both Write and Read buttons
simultaneously until “MODE: 0-3” appears.
3. Press “1” to select “M1 2330” mode.
4. Enter the desired technical address then press “write”.
In EBLWin, select 3333/3339 from the “Obsoleted units” and add to the COM Loop.
Notes:
1. Incorrect addressing mode or programming will cause the unit to report a “No reply
…..” fault in the control unit.
2. When 4433 or 4439 is used in FT512 system, the MCP must be addressed in 2330
mode and programmed as 3333 / 3339.
3. The Short Circuit Isolator feature in 4433 or 4439 can be used only in FT1020G3 or
FT128
6.1.1.3 Analogue Detectors
3308 Analogue heat detector. To be plugged in an Analogue base (3312 / 4313 / 3379).
Built-in LED is lit to indicate that the detector has activated a fire alarm. Prepared
for mechanical lock (screw attached) – if required. The COM loop address is set
with the Address setting tool 3314 / 4414. The detector has an address label on
which the programmed COM loop address can be written.
The Address setting tool is also used for mode setting:
NORMAL mode: 3308 is set in EBLWin in this mode to one of three algorithms
(static response temp. range) for class:
A1 (54-65°C), min./typical/maximum ambient temp. -20/+25/+50°C
A2 S (54-70°C), min./typical/maximum ambient temp. -20/+25/+50°C
B S (69-85°C), min./typical/maximum ambient temp. -20/+40/+65°C
3309 Analogue heat detector. Enclosed (IP67)
. Built-in LED is lit to indicate that the
detector has generated fire alarm. Terminals for Remote Indicator (RIL). Recess
for label holder (3391). The COM loop address is set with the Address setting tool
3314 / 4414. The Address setting tool is also used for mode setting:
NORMAL mode: 3309 is in this mode via EBLWin set to one of three algorithms
(static response temp. range) for class:
A1 (54-65°C), min./typical/maximum ambient temp. -20/+25/+50°C
A2 S (54-70°C), min./typical/maximum ambient temp. -20/+25/+50°C
B S (69-85°C), min./typical/maximum ambient temp. -20/+40/+65°C
4300 Analogue multi detector. Discontinued and replaced by 4400 in Normal mode, see
below. 4300 is a smoke detector and a heat detector within the same housing.
Scattered light (i.e. reflection of infrared light) is used to detect smoke and the heat
sensing element is a thermistor. The detector unit (actually the heat detector) can
detect methylated spirits (alcohol) fire (EN54-9, test fire TF6; liquid fire), which is
normally impossible for a photo electric smoke detector to detect.
As from July 2013, this detector holds the ATEX classification: Ex II 3 G Ex ic IIC T5 Gc, Ex II 3 D Ex ic IIIC T70°C Dc,
-20°C < Ta < 65°C.
