6.5 Other Units
6.5.1 External LEDs
BARIL Remote Indicator RIL. Used when a detector is placed out of view or hidden
e.g. roof space detectors. The LED is lit at the same time as the LED in the
detector / base that is connected to. It has a "Burning house" symbol instead
of a text. BARIL can be connected to all types of Panasonic detectors / bases.
To be wall mounted (87 x 87 x 30 mm).
The input is polarised, connections as follow:
J2:1 (+5 to +35 VDC) for Conventional detectors / bases
J2:2 (< 25 mA) for Analogue detectors / bases
J2:3 (0 V)
To be wall mounted (87 x 87 x 30 mm)
6.5.2 Alarm Devices (Sounders, Etc.)
Regarding addressable alarm devices, see page 60.
The alarm devices used in FT128 can be one or two of the following equipment:
1. Occupant Warning System (OWS) with different power output built in FT128
and provides a supervised 100V speaker circuits and 24V dual strobe output.
2. 24VDC strobes or alarm bells connected to S0 – S1.
3. Full EWIS system interfaced to FT128.
Connections of alarm devices according to drawing F665 and F737.
6.5.3 Magnetic Door Holders
Different magnetic door holders to suit the applications are required. A separate 24V non-
battery backed power supply is recommended. Door holders must be provided with a
"suppression diode" (e.g. 1N4004) in parallel with the coil, similar to the alarm devices, see
drawing F665. Typical example is shown in Figure 25 below.

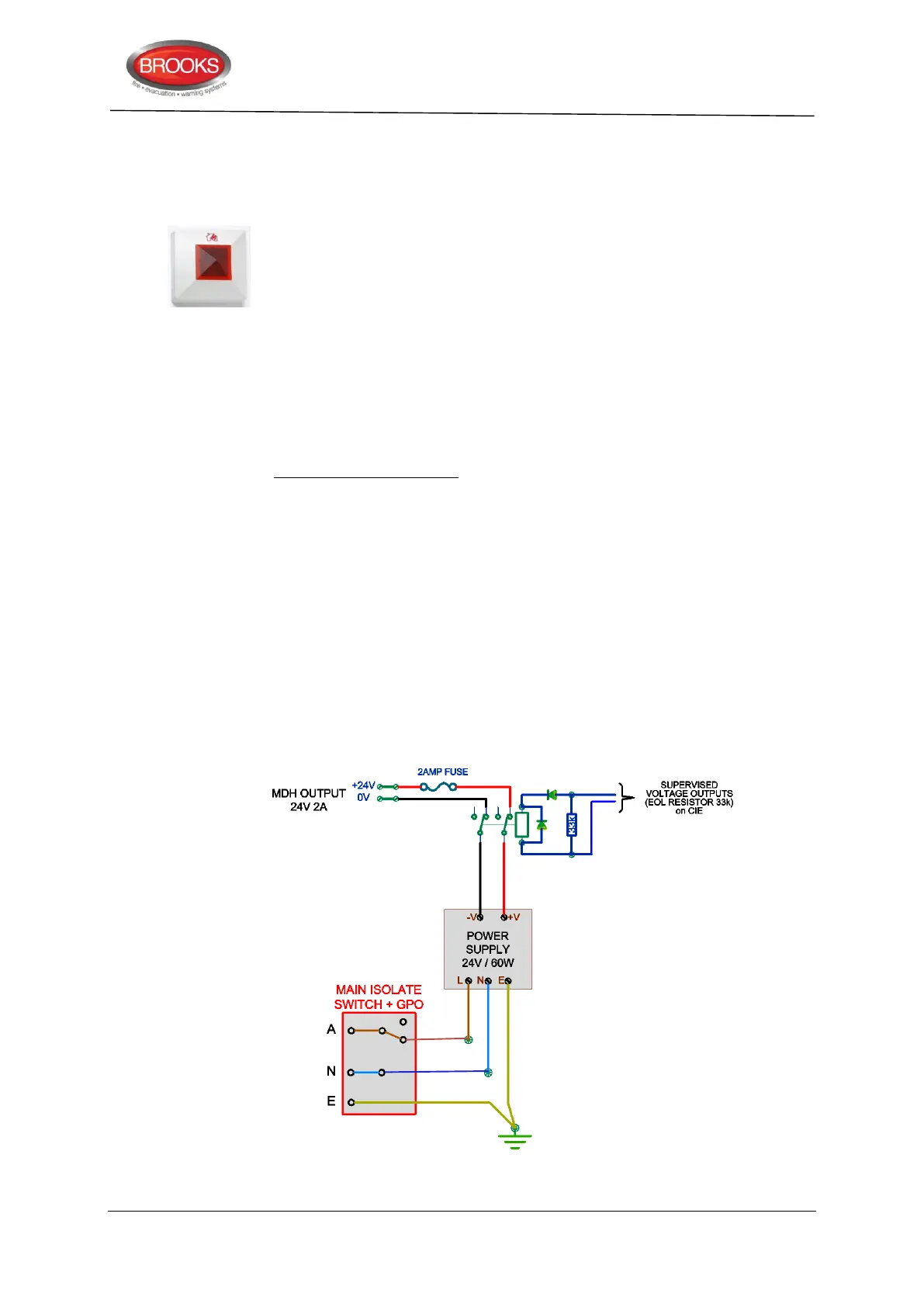

Figure 25 Connection example of 2A MDH power supply
