Brooks Firetracker FT128 CIE - Output Signal Period; Types of Output Signal Periods; Timing of Output Signal Periods

Technical / Programming Manual
FT128 Rev 2.2
82
See also chapter "Programmable Voltage Outputs (S0-S1)”, page 19.
10.4 Output Signal Period
Each output uses an "Output signal period", which controls the output's activation. The
following are available:
User defined 1-8 can be built up with type and time.
10.4.1 Types of output signal periods
The following types are available:
1. Steady (continuous)
2. Intermittent
3. One pulse
4. Steady Delayed Activation
5. Intermittent Delayed Activation
6. One pulse Delayed Activation
7. Steady Delayed De-Activation
10.4.2 Timing of output signal periods
The following times are available:
 Delay time (when required)
 Pulse length time (when required)
 Pulse off time (when required)
 De-activation time (when required)

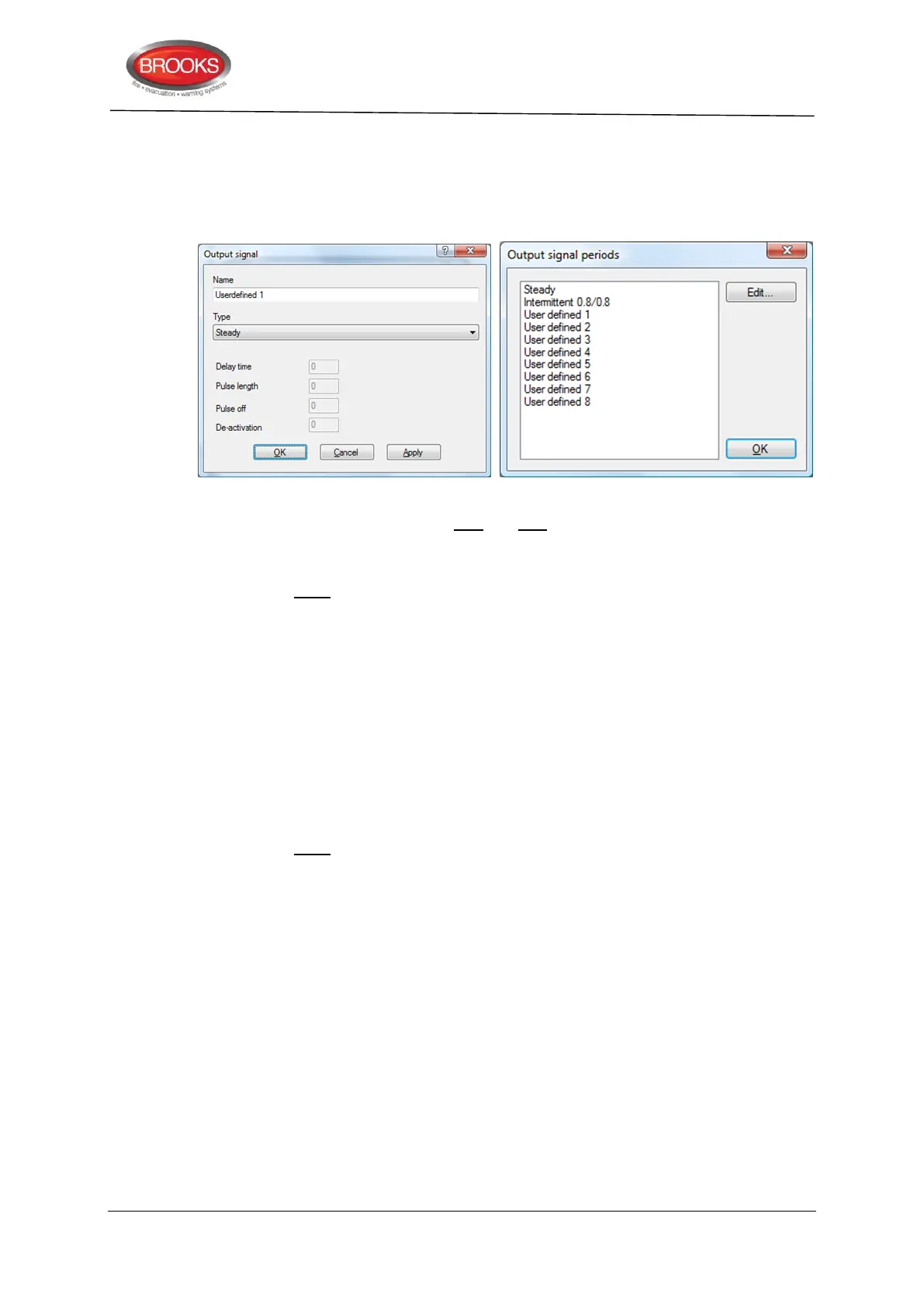

See also Figure 29 below.
