Brooks Firetracker FT128 CIE - Figure 58 Access Summary of Loop Units with Current Consumption in Eblwin; Table 19 Other Units Current Consumption

Technical / Programming Manual
FT128 Rev 2.2
170
Table 19 Other Units Current Consumption
Other Units
Normal State
(quiescent) (mA)
Alarm State
(activated) (mA)
Routing equipment (Fire brigade TX / Fault Tx)
See foot note
169
See foot note
169
Alert Annunciation Unit (AAU) 1736
170
26@24V / 48@12V
42@24V / 79@12V
External Presentation Unit (EPU) 1728
170
26@24V / 48@12V
42@24V / 88@12V
Alarm devices (sounders, etc.)
0
Sounder type current
Occupant Warning System (OWS) 60W
171
118
3100
Magnetic door holder
Approximately 80
0
As more loop devices are added, they are summarised in the “Summary of loop units”
providing information for total quiescent and maximum consumption in the “Properties for
NMAST loop” dialog box. See Figure 58 for steps to access the information from EBLWin
under their respective loops.

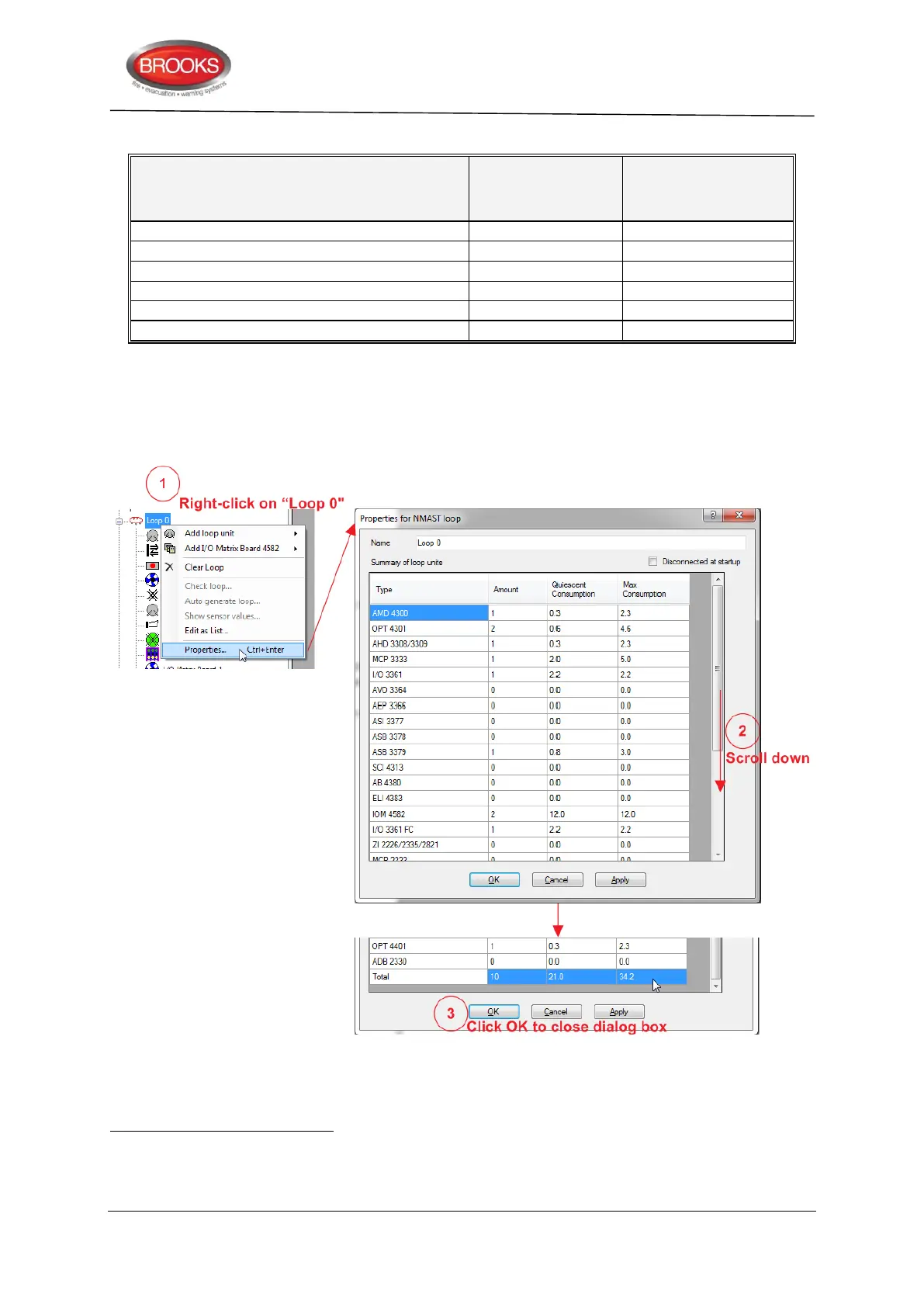

Figure 58 Access Summary of Loop Units with Current Consumption in EBLWin
169
Quiescent and alarm current must be added correctly for each brigade unit e.g. Romtec, Tyco ASE, etc. Separate power
supply and batteries may be required.
170
Totally up to eight 1736 and/or 1728 units might be used.
171
OWS must be powered from a separate power supply and battery backup.
