19.3.3 Alarm Algorithms
The following is not valid for the detectors 4400 and 4401 in Advanced mode. (See chapter
"Advanced mode", page 127.)
In Normal mode 440x = 430x.

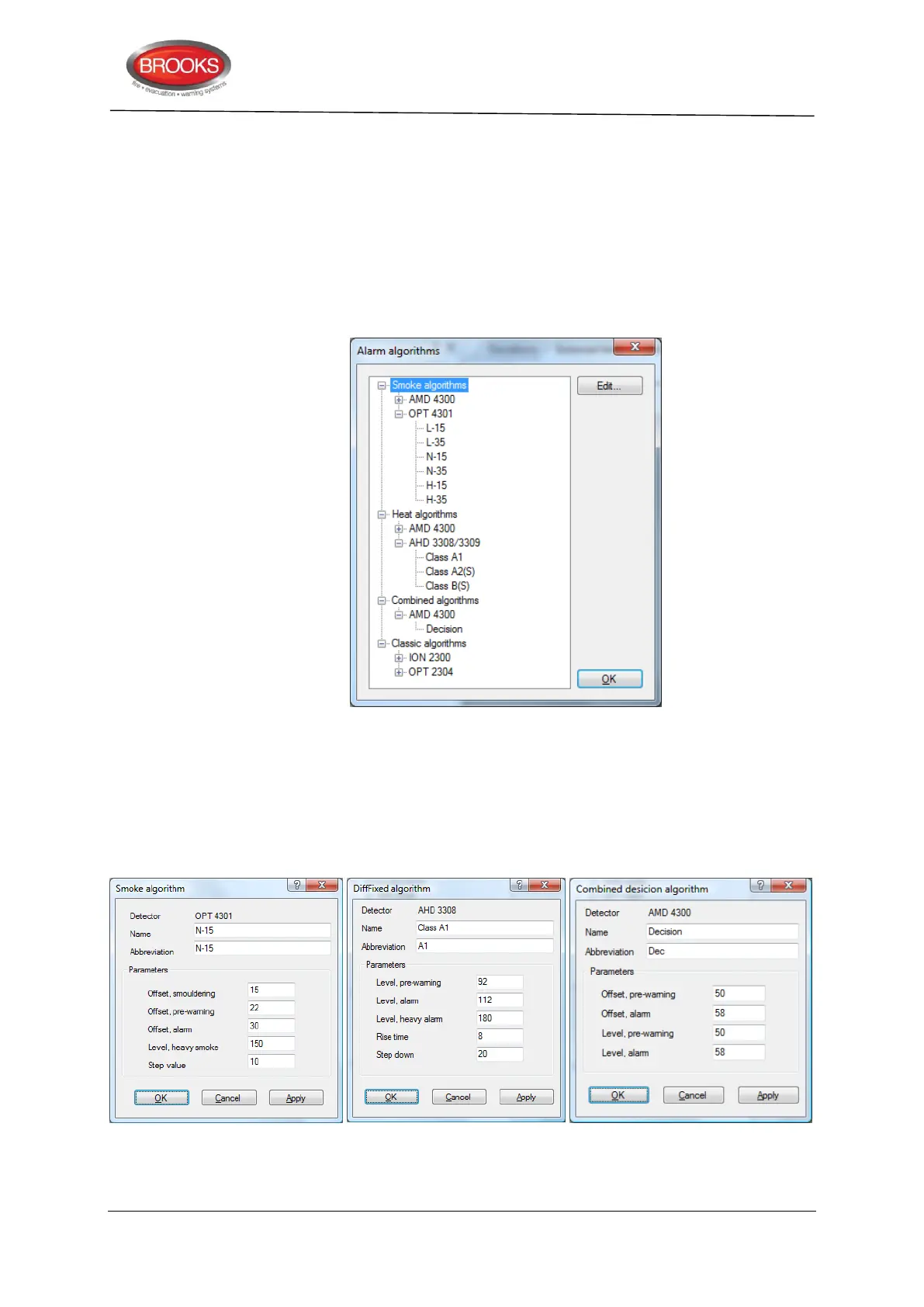

Figure 51 Alarm Algorithms Dialog Box
To open the Alarm Algorithms Dialog Box as in Figure 51, click System | Alarm Algorithms
from the EBLWin menu.
All the different algorithms for the different detector types are shown in the tree view to the
left. Click "+" to expand and "-" collapse the tree view.
Select one algorithm and click "Edit…" and a dialog box displays depending on the selected
algorithm:
Figure 52 Alarm Algorithms for Various Detectors.
Figure 52 shows Smoke algorithm N-15 for 4301 / 4401, Heat algorithm Class A1 for 3308
and Combined Decision algorithm Dec for 4300 / 4400 respectively. All in NORMAL mode.
