Brooks Firetracker FT128 CIE - Addressable Manual Call Points; Analogue Sensor Bases (ASB)

Technical / Programming Manual
FT128 Rev 2.2
52

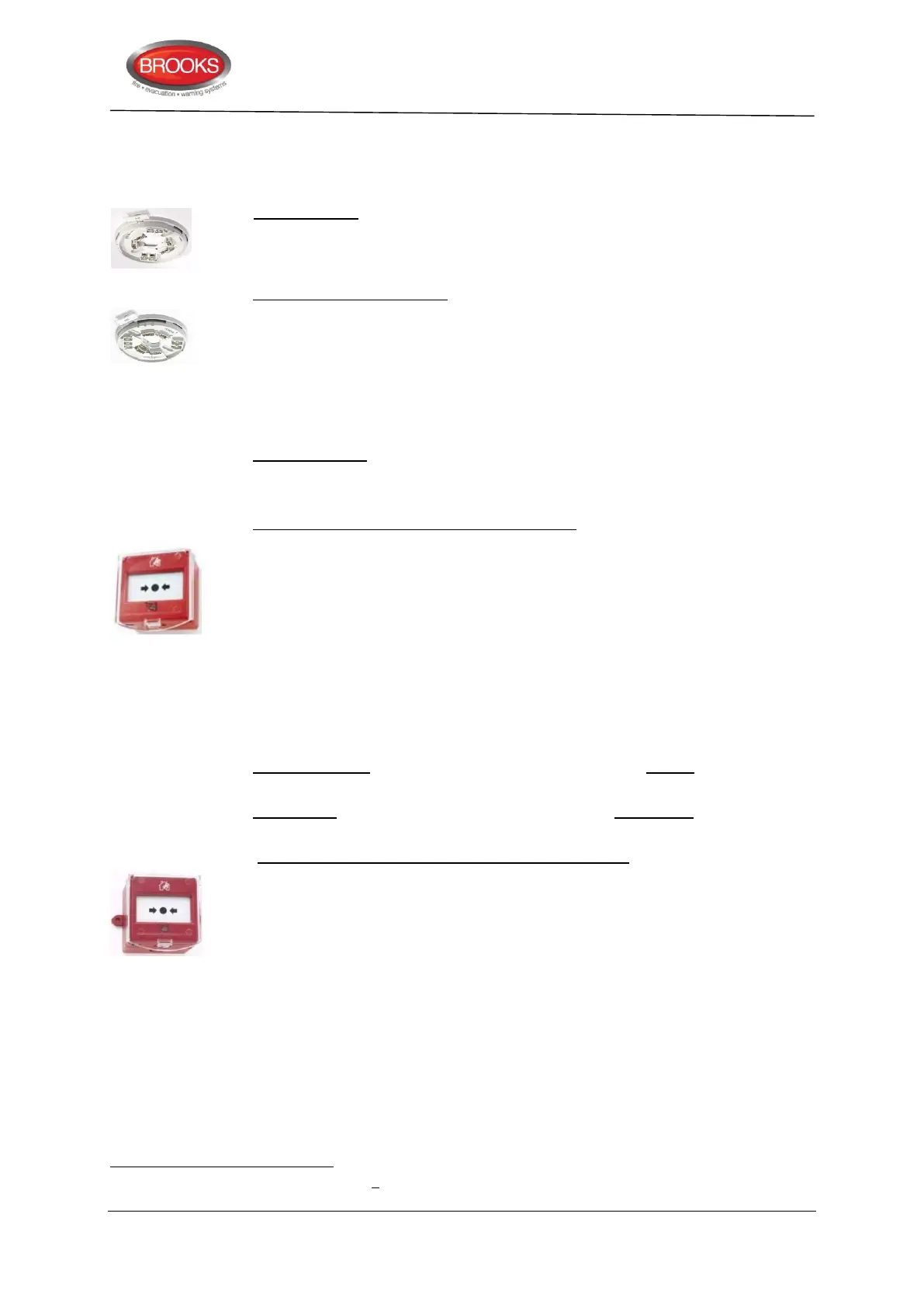

6.1.1.1 Analogue Sensor Bases (ASB)
An Analogue detector (Sensor) to be plugged in an Analogue base. The COM loop address
is set in the detector, see below.
3312 Analogue Base 3312 has screw terminals for the COM loop and an RIL. Prepared
for mechanical lock of the detector - if required. Recess for label holder (3391).
The base has an address label on which the plugged-in detector's COM loop
address can be written.
4313 Analogue Base with isolator. An Analogue detector (Sensor) is to be plugged in
4313. Terminals are provided for remote indicators (RIL). Prepared for mechanical
lock of the detector - if required. Recess for label holder (3391). It has also a built-
in Short Circuit Isolator (see page 62). The isolator's COM loop address is set with
the Address setting tool 3314 / 4414. The base has an address label on which both
the plugged-in detector's COM loop address and the isolator's COM loop address
can be written.
The Address setting tool 3314 / 4414 is also used for mode setting:
NORMAL mode: Used for 4313 in system FT128.
6.1.1.2 Addressable Manual Call Points
4433 Addressable Manual Call Point
45
with isolator. Conforms to EN54-11, replaces
3333. This MCP is similar to 3333 but it also has a built-in Short Circuit Isolator. A
built-in LED will indicate that a fire alarm is generated, i.e. the glass is broken.
Routine testing can be performed with a supplied test key, without breaking the
glass. A hinged polycarbonate flap protects the glass from accidental triggering.
The COM loop address is set with the Address setting tool 3314 / 4414.
The isolator does not use any COM loop address
4433 is to be surface mounted in the supplied red back box or flush mounted as it
is mounted in the FT128 cabinet.
For indoor use and in dry premises.
The Address setting tool 3314 / 4414 are also used for mode setting:
NORMAL mode: The built-in Short Circuit Isolator is in use. Programmed in
EBLWin as MCP type 4433. Flashing or non-flashing LED is set via EBLWin.
2330 mode: The built-in Short Circuit Isolator is not in use. Programmed in
EBLWin as MCP type 3333.
46
Flashing or non-flashing LED is set via EBLWin.
4439 Enclosed Addressable Manual Call Point with isolator
45
. Replaces 3339. 4439 is
same as 3339 unit but it has built-in Short Circuit Isolator. The isolator does not
use any COM loop address. The Address setting tool 3314 / 4414 is also used for
mode setting same as 4433.
For indoor use in premises where IP56 rating is required. Operating temp. -10 to
+55°C.
Addressing & programming 4433/4439 with SCI
1. Connect the address setting tool to the MCP terminals SA and SB (without loop
connection).
2. Turn on the address setting tool then hold down both Write and Read buttons
simultaneously until “MODE: 0-3” appears.
3. Press “0” to select “M0 NORMAL” mode.
4. Enter the required technical address then press “write”.
45
The manual call points have a response time < 5 s
46
When 4433/4439 is used as a replacement for 3333/3339, in EBLWin, 3333/3339 must be selected (not 4433 or 4439).
