Brooks Firetracker FT128 CIE - 4 Expansion Boards 458 X; Figure 3 Expansion Boards (from Left to Right) 4580, 4581 and 4583; Figure 4 I;O Matrix Board 4582; Table 3 Expansion Boards Allowed

Technical / Programming Manual
FT128 Rev 2.2
22
4 Expansion Boards 458X
Up to 4 optional expansion boards can be mounted in the FT128 cabinet on an expansion
boards holder. The total number of Expansion Boards allowed in any combination of 4580,
4581, or 4583 is 4 see Table 3 below.
Table 3 Expansion Boards Allowed
No. of Expansion boards
(Total of any combination is 4)
Maximum Number Allowed
4580
4
4581
4
4583
4 (with warning)

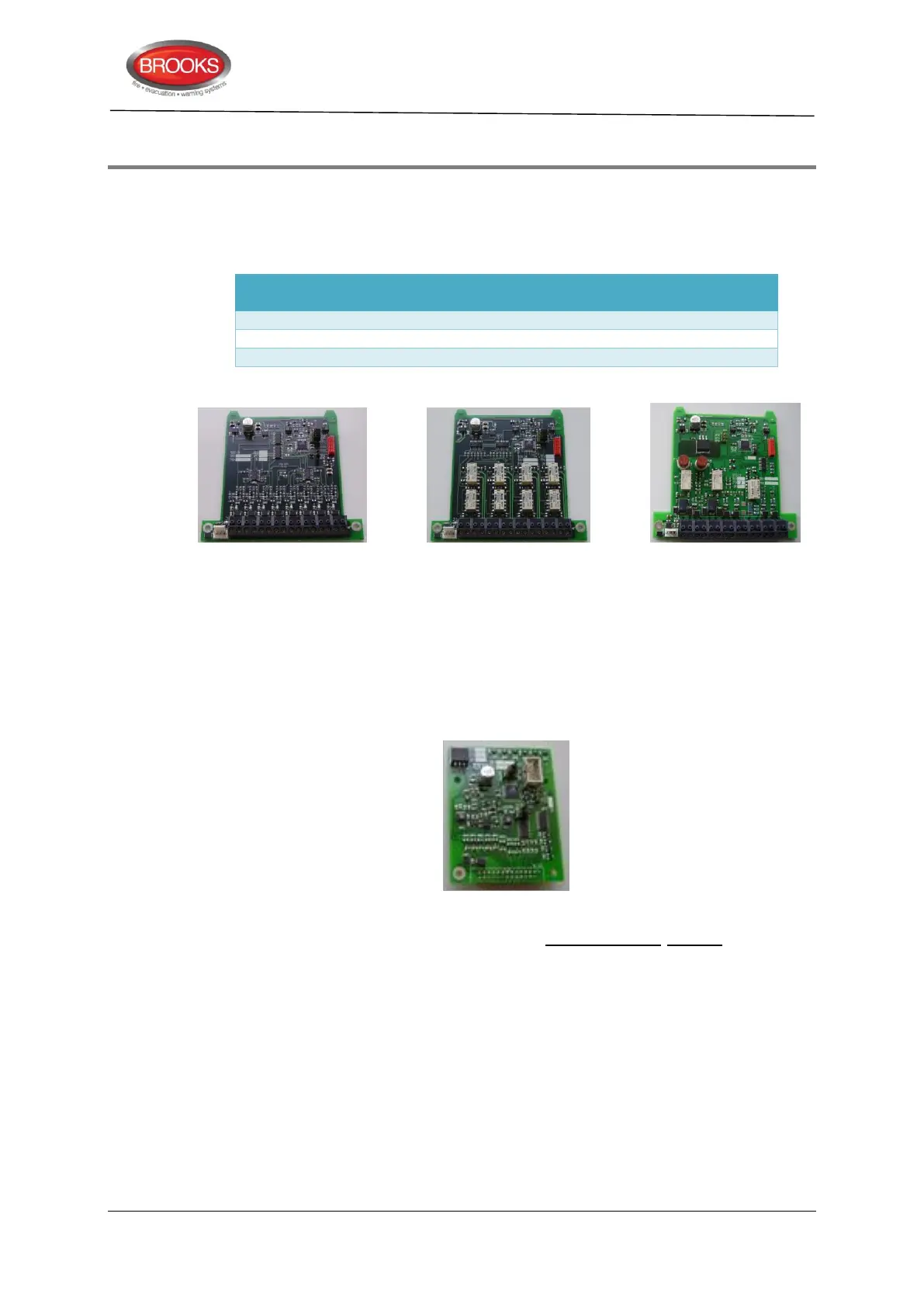

Figure 3 Expansion Boards (from left to right) 4580, 4581 and 4583.
The expansion boards are mounted in an expansion board holder (Expansion boards
mounting kit 4551 or Brooks brackets) inside FT128. A supplied cable assembly is used
to connect the expansion board(s) to the main board (connector "J2" on the expansion
board and "J13" on the main board 4556). See drawings F665.
I/O Matrix board 4582 is a special type of expansion board that plugs (piggy back)
onto an Application board (Fan, Generic or Zone). The Application board is connected to
the COM loop and to 24 V
DC
. Up to four 4582 boards can always be used and up to eight
if no expansion boards of type 4580, 4581 or 4583 are used.
Figure 4 I/O Matrix board 4582
Each expansion board 4580-4583 must have an expansion board address (0-7) set via
jumpers on the expansion board. The jumpers "JP2-JP4" are used on boards type 4580,
4581 and 4583, and jumpers "JP1-JP3" are used on board type 4582, see Table 4 below.
EBLWin is used for all expansion boards programming.
