Technical / Programming Manual
FT128 Rev 2.2
61
For each level, an output control expression and a sound type is programmed (via
EBLWin). For more technical data, see the product datasheet.
The COM loop address is set with the Address setting tool 3314 / 4414 which is
also used for mode setting
NORMAL mode: 4477 with the built-in isolator in use.
2330 mode: 4477 with the built-in isolator not in use. 4477 replaces a 3377 unit.
Note: See also Table 2 “Control Panel Limitation”, page 16.

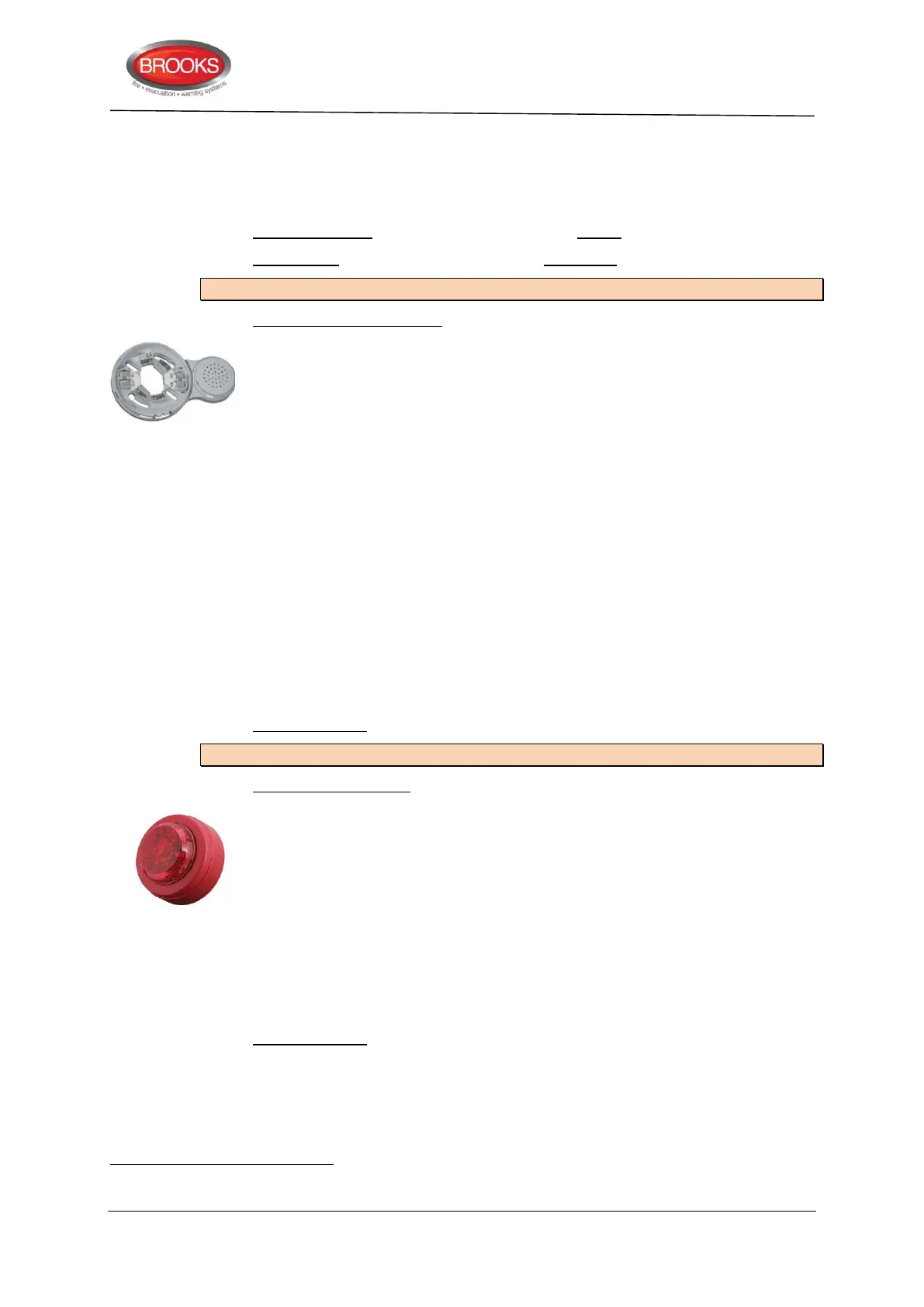

3379 Addressable sounder base. 3379 consists of an analogue base 3312 mounted
together with a sounder. 3379 is mounted in the ceiling. An Analogue detector can
be plugged in the base, which has screw terminals for the COM loop and a Remote
Indicator (RIL). Prepared for mechanical lock of the detector - if required. Recess
for label holder (3391). 3379 is COM loop powered i.e. the number of sounder
bases is dependent on the type and number of other units connected to the COM
loop
63
.
Three sound types (tones)
and three priority levels are available.
Steady (continuous) 3650 Hz
Intermittent (pulsed) 3650 Hz, 0.5s / 0.5s (1 Hz)
Intermittent (pulsed) 3650 Hz, 0.167s / 0.167s (3 Hz)
For each level, an output control expression and a sound type is programmed (via
EBLWin). High sound output (approx. 4.5 dB higher) can be selected via EBLWin
(more current will be required). For more technical data, see the Product datasheet.
The COM loop address is set with the Address setting tool 3314 / 4414. The unit
has an address label on which the programmed COM loop address can be written.
(The detector has its own COM loop address set via the Address setting tool).
The Address setting tool is also used for mode setting:
NORMAL mode: 3379 used in FT128.
Note: See also Table 2 “Control Panel Limitation”, page 16.
4380 Addressable beacon
. 4380 is a visual alarm device of type A for indoor use. All
electronics, the LEDs and the lens are mounted in a red ABS housing. The beacon
comes with a shallow base (IP21C). A deep base is an option which gives the
beacon a higher IP protection (IP33C). 4380 is powered via the COM loop, i.e. the
number of beacons is dependent on the type and number of other units connected
to the COM loop but 10 maximum.
The light output is 1 Cd and the flash rate is 1 Hz. For more technical data, see the
Product Leaflet. NOTE! This unit has been removed from our product range.
The technical address is set with the Address setting tool 3314 / 4414. The unit has
an address label on which the COM loop address can be written.
The Address setting tool is also used for mode setting:
NORMAL mode: 4380 used in system FT128.
High tone can be selected via EBLWin V2.1.x and higher, more current will be required.
The addressable beacon is discontinued and will be replaced by new VAD’s
